APRILIA RSV4 R User Manual

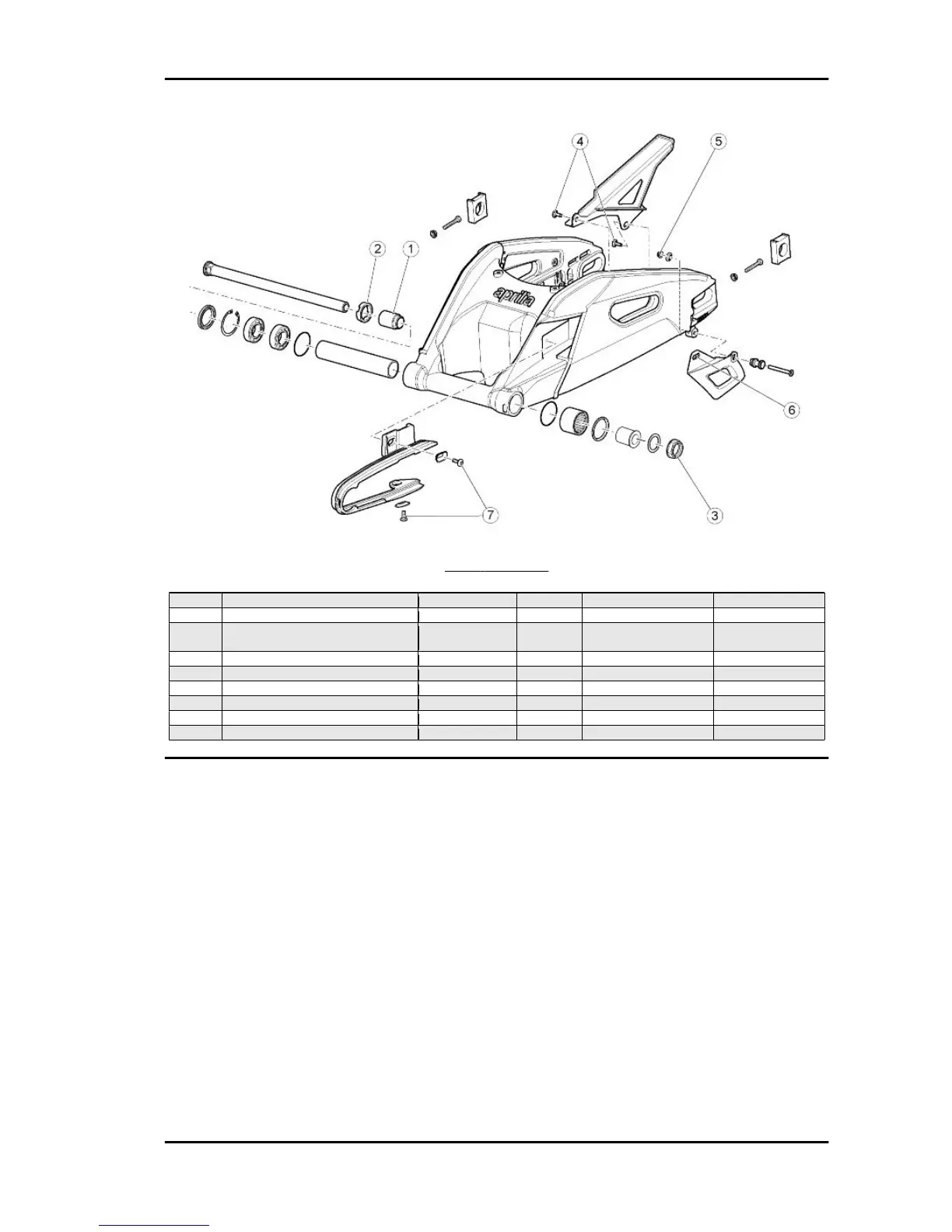

REAR SWINGARM
pos.
Description Type Quantity Torque Notes
1 Swingarm adjuster screw bushing M30x1.5 1 12 Nm (8.85 lbf ft) -
2 Swingarm ring nut M30x1.5 1 60 Nm (44.25 lbf ft) -
3 Swingarm pin nut M20x1.5 1 65 Nm (47.94 lbf ft) AGIP GREASE
SM2
4 Chain casing fixing screws M5 2 4 Nm (2.95 lbf ft) -
5 Front chain guide fixing screw M5 1 4 Nm (2.95 lbf ft) -
6 Rear chain guide fixing nut M6 1 7 Nm (5.16 lbf ft) -
7 Chain skid fixing screws M5 2 2 Nm (1.47 lbf ft) -
- Lower chain skid fixing screws M6 2 10 Nm (7.37 lbf ft) -
- Chain guide fixing screw M6 1 8 Nm (5.90 lbf ft) -
RSV4 R Characteristics
CHAR - 35

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
