APRILIA RSV4 R User Manual

•

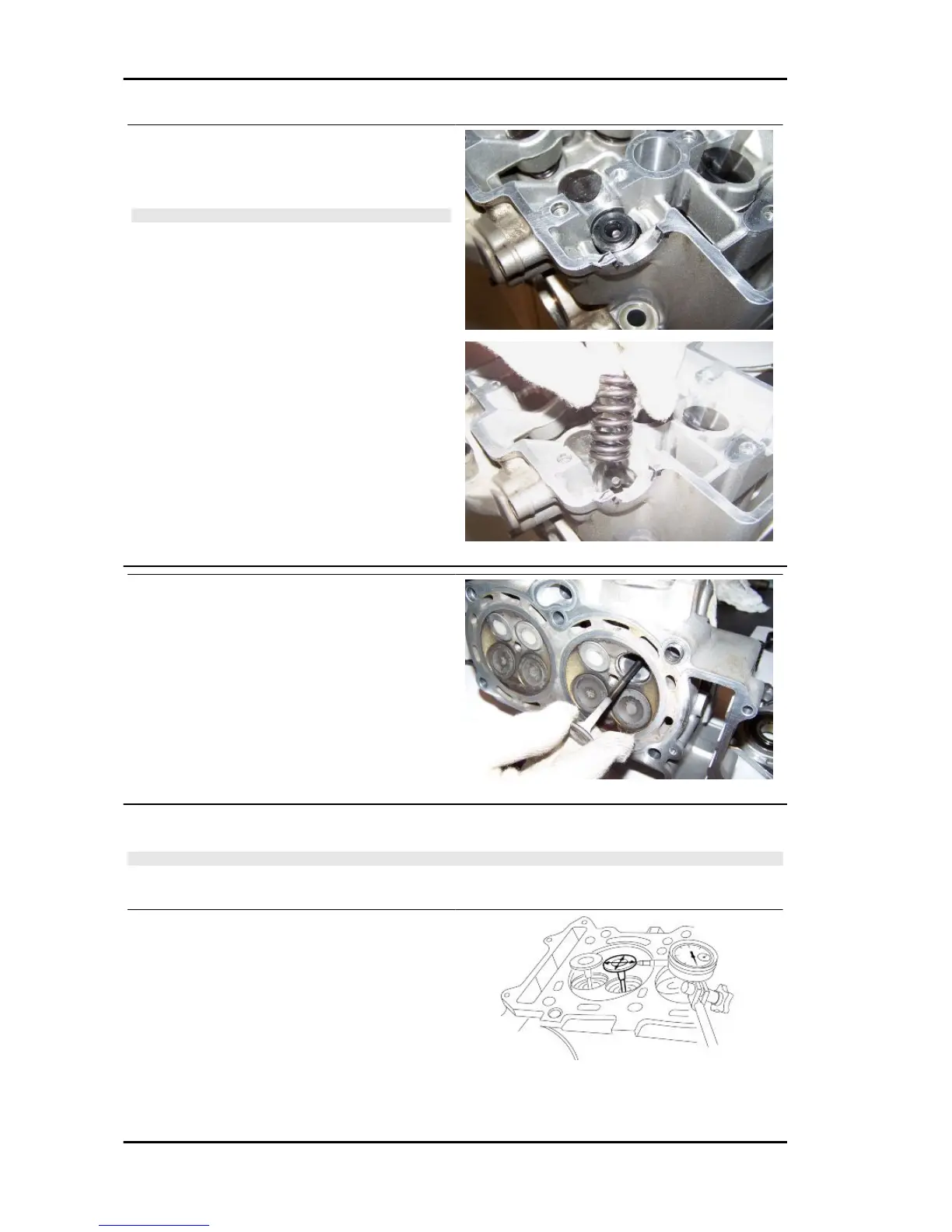

Release the valve springs.
•
Remove the upper cap and the
springs.
CAUTION
THE INTAKE VALVES HAVE A DOUBLE SPRING WHERE-
AS THE EXHAUST VALVES HAVE A SINGLE SPRING.
•
Remove the valves.
Valve check
CAUTION
REPLACE THE VALVES ONE AT A TIME. DO NOT MIX THE COMPONENTS. EACH VALVE MUST
BE INSERTED INTO ITS SEAT, WHICH IS MARKED PRIOR TO REMOVAL.
VALVE STEM DEVIATION
Lift up the valve approx. 10 mm (0.39 in) from its
seat.
Measure the valve stem deviation in two perpen-
dicular directions and position the dial gauge as
shown in the figure.
Engine RSV4 R
ENG - 310
