TABLE Y - MOTORISED THROTTLE BODY FIT-
TING
First fasten the "Motorised Throttle Body 2 (front)"
to the rubber manifolds with the specific clip-on
clamps.
Then fasten the "motorised throttle body 1 (rear)"
to the rubber manifolds with the clip-on clamps us-
ing the specific tool.
106. Cable harness routing (branch "4") under the
fuel pipe
Specific tooling
020877Y Pliers for clamps
TABLE Z
First fasten the "Motorised Throttle Body 2 (front)"
to the rubber manifolds with the specific clip-on
clamps.
Then fasten the "motorised throttle body 1 (rear)"
to the rubber manifolds with the clip-on clamps us-
ing the specific tool.
106. Cable harness routing (branch "4") under the
fuel pipe
Pay attention when positioning the Map Sensor 2
connector.
Specific tooling
020877Y Pliers for clamps

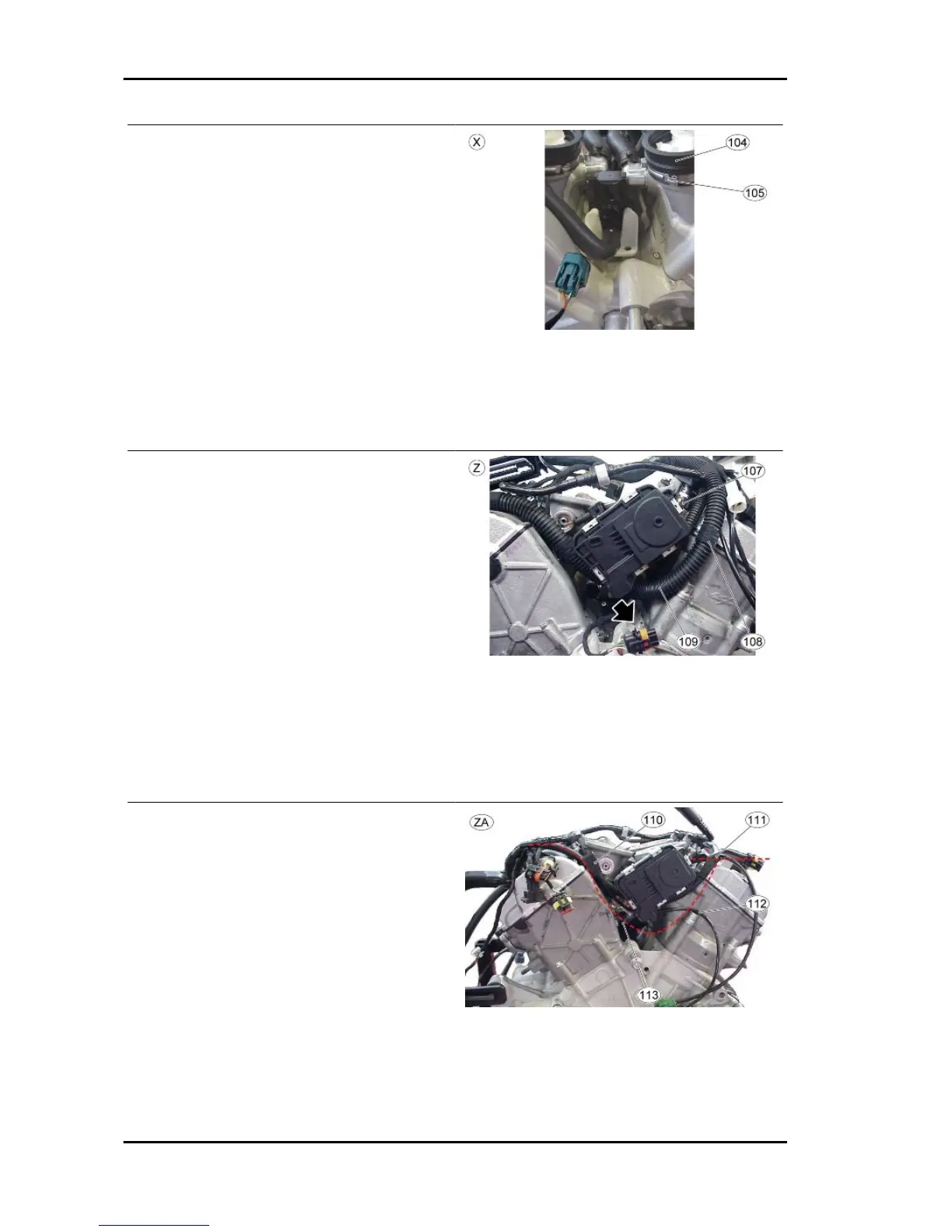

TABLE ZA - H2O TEMPERATURE SENSOR
AND LOWER INJECTORS CONNECTION
Cable harness routing on the right side of the en-
gine: branch "4" of the cable harness must pass
behind the Front Motorised Throttle Body; the out-
put with the branchings must be positioned in cor-
respondence of the upper part of the head cover.
110. Engine speed sensor connector
111. Output with branchings
112. Engine speed sensor cable routing
113. Cable harness routing (branch "4") under the
water pipe fitting.
Electrical system RSV4 R
ELE SYS - 118
