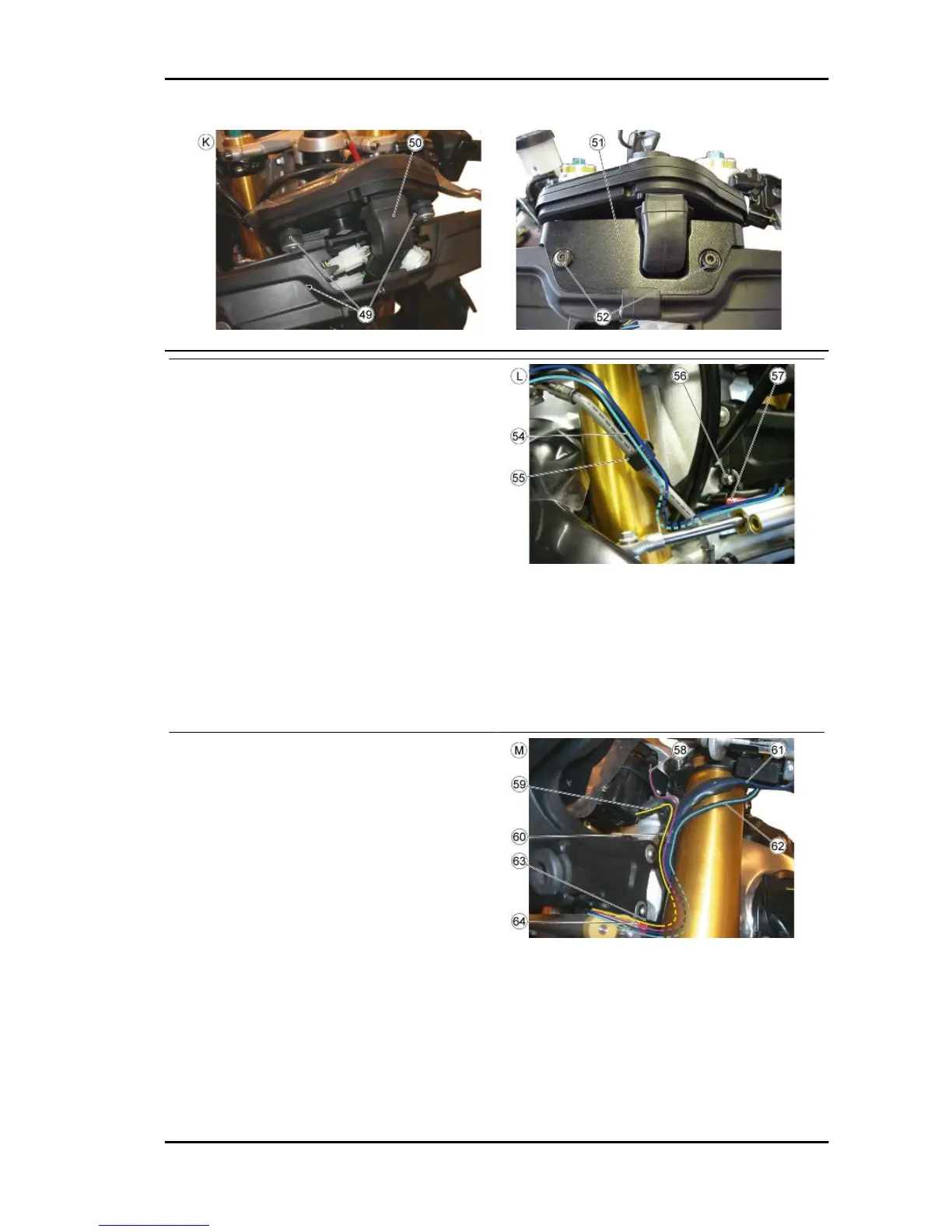

TABLE L - INSTRUMENT HOLDER ARCH
BRACE AND FRONT PART
Right side
Check that the cable grommets are not ten-
sioned on the right and left cable grommet
during steering rotation.
53. Cable harness routing to right handlebar con-
trol
54. Front stop switch cable harness routing
55. Rubber clamp
56. Cable grommet
57. Red reference tape on the right handlebar con-
trol cable harness in correspondence of the cable
grommet.
TABLE M - INSTRUMENT HOLDER ARCH
BRACE AND FRONT PART
Left side
Check that the cable grommets are not ten-
sioned on the right and left cable grommet
during steering rotation.
58. Antenna cable harness routing
59. Key switch cable harness routing
60. Rubber clamp
61. Cable harness routing to left handlebar control
62. Clutch cable harness routing
63. Cable grommet
64. Red tape on the clutch and left handlebar con-
trol cable harness in correspondence of the cable
grommet.
RSV4 R Electrical system
ELE SYS - 105
