42. Front stop switch connector
43. Right handlebar control connector

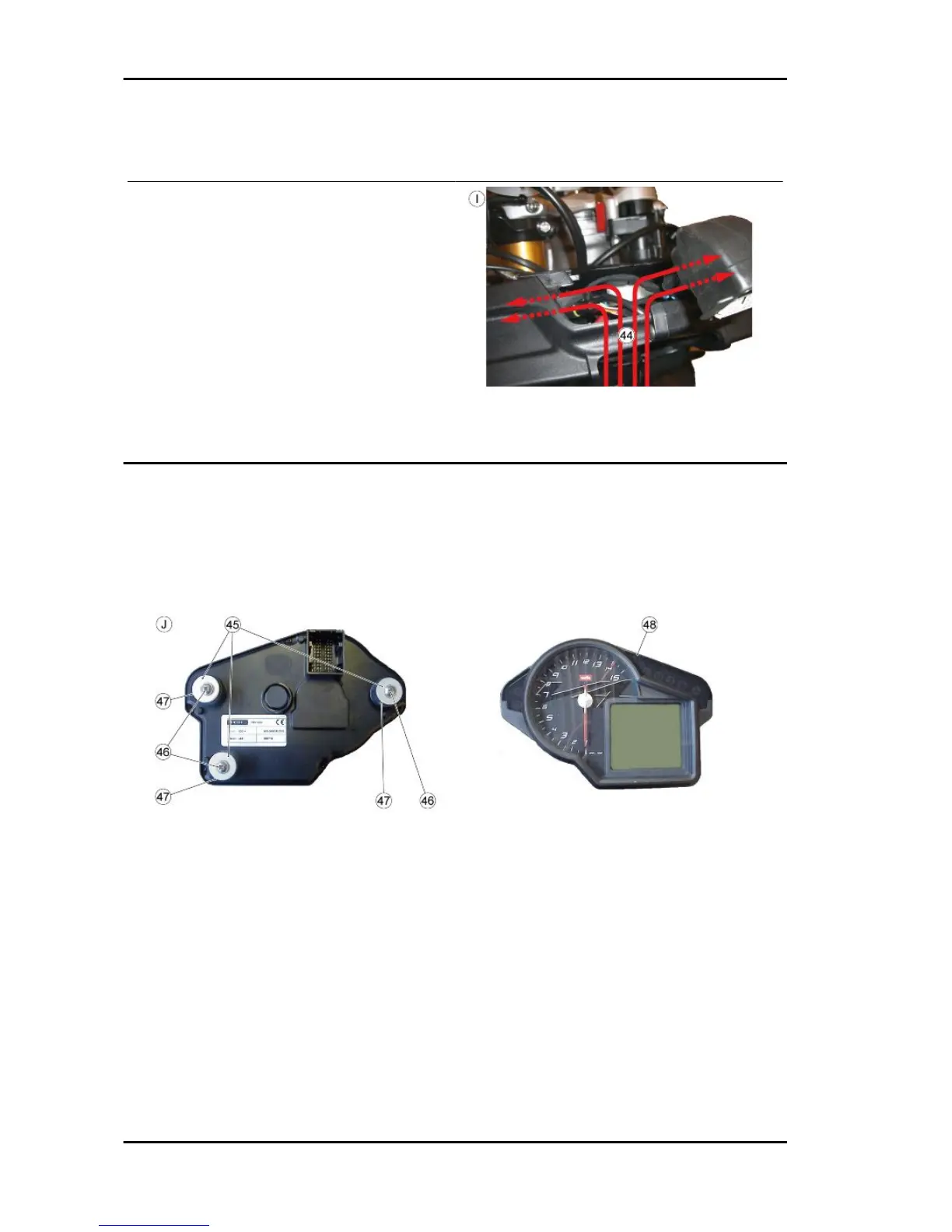

TABLE I - INSTRUMENT HOLDER ARCH
BRACE AND FRONT PART
Make the connections for all connectors. The key
switch connector has a longer cable harness in
comparison to the 6 pin connectors for the left light
switch. The cable harness side key switch con-
nector is distinguished with red taping on its
branch.
44. Insert the connectors inside the two arch brace
compartments (left and right)
TABLE J - INSTRUMENT HOLDER ARCH BRACE AND FRONT PART
45. Rubber ring (x3)
46. Screw (x3)
47. Washer (x3)
48. Instrument panel
TABLE K - INSTRUMENT HOLDER ARCH BRACE AND FRONT PART
49. Insert the instrument panel rubber rings in their seats on the arch brace.
50. Instrument panel connector
51. Instrument panel mounting cover
52. Screw
Electrical system RSV4 R
ELE SYS - 104

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
