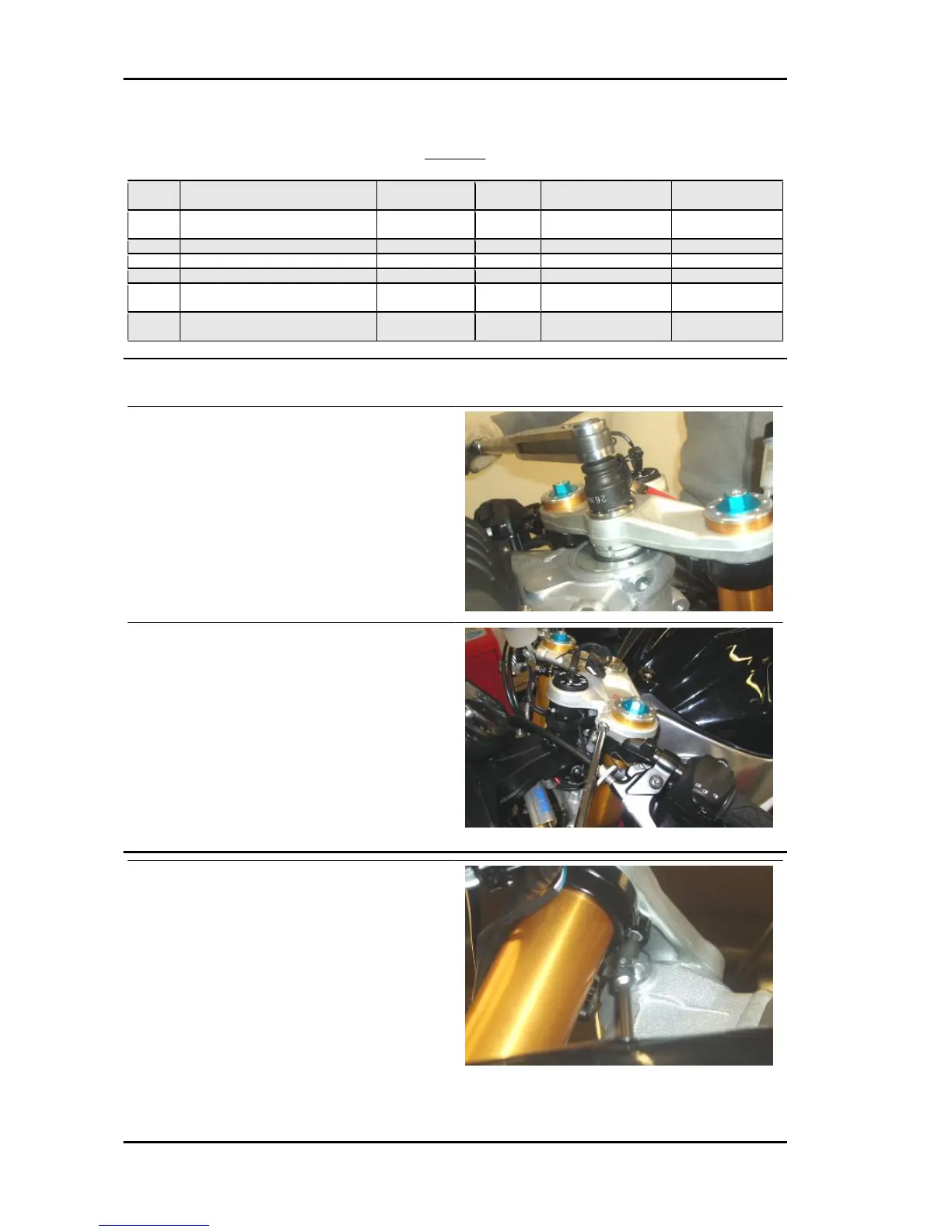

STEERING
pos. Description Type Quantity Torque Notes
1 Screws fastening upper yoke to stan-
chions
M8 2 25 Nm (18.44 lbf ft) -
2 Screws fastening lower yoke to stan-
chions
M8 4 25 Nm (18.44 lbf ft) -
3 Headstock lock ring M35x1 1 40 Nm (29.50 lbf ft) -
4 Headstock counter-lock ring M35x1 1 - Manually close
5 Upper yoke fixing cap - 1 100 Nm (73.76 lbf ft) -
6 Screw fastening shock absorber to
frame
M6 1 10 Nm (7.37 lbf ft) -
7 Screw fastening shock absorber to
lower yoke
M6 1 10 Nm (7.37 lbf ft) -
Adjusting play
•
Unscrew and remove the upper plate
fixing cover on the headstock and col-
lect the washer.
•
Loosen the screws fixing the fork stan-
chions to the upper yoke.
•
Working from both sides, unscrew and
remove the semi-handlebar screws.
Suspensions RSV4 R
SUSP - 382
