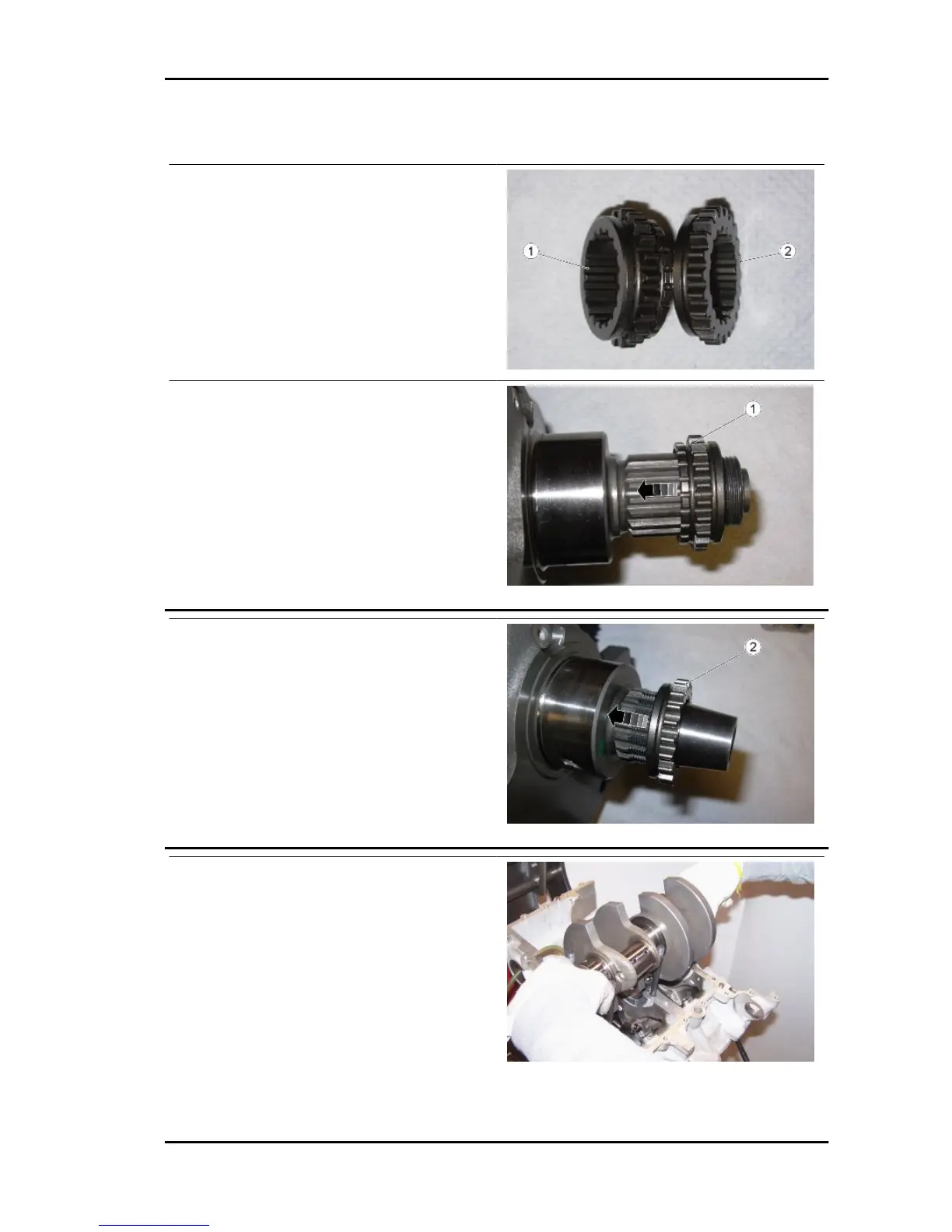

Crankshaft fitting
If the two timing chain control sprockets (1 - 2) on
the crankshaft were removed, check their exact
positioning carefully because the two components
cannot be interchanged.
Remember that the thicker sprocket (1) must be
positioned from the clutch side of the crankshaft.
Position the sprocket (1) with the smooth side fac-
ing outward of the crankshaft.
Move the sprocket (1) up against the crankshaft
shoulder.
Position the sprocket (2) with the smooth side fac-
ing the inside of the crankshaft.
Move the sprocket (2) up against the crankshaft
shoulder.
•
Lubricate the crankshaft pins and in-
sert them into their positions.
