APRILIA RSV4 R User Manual

•

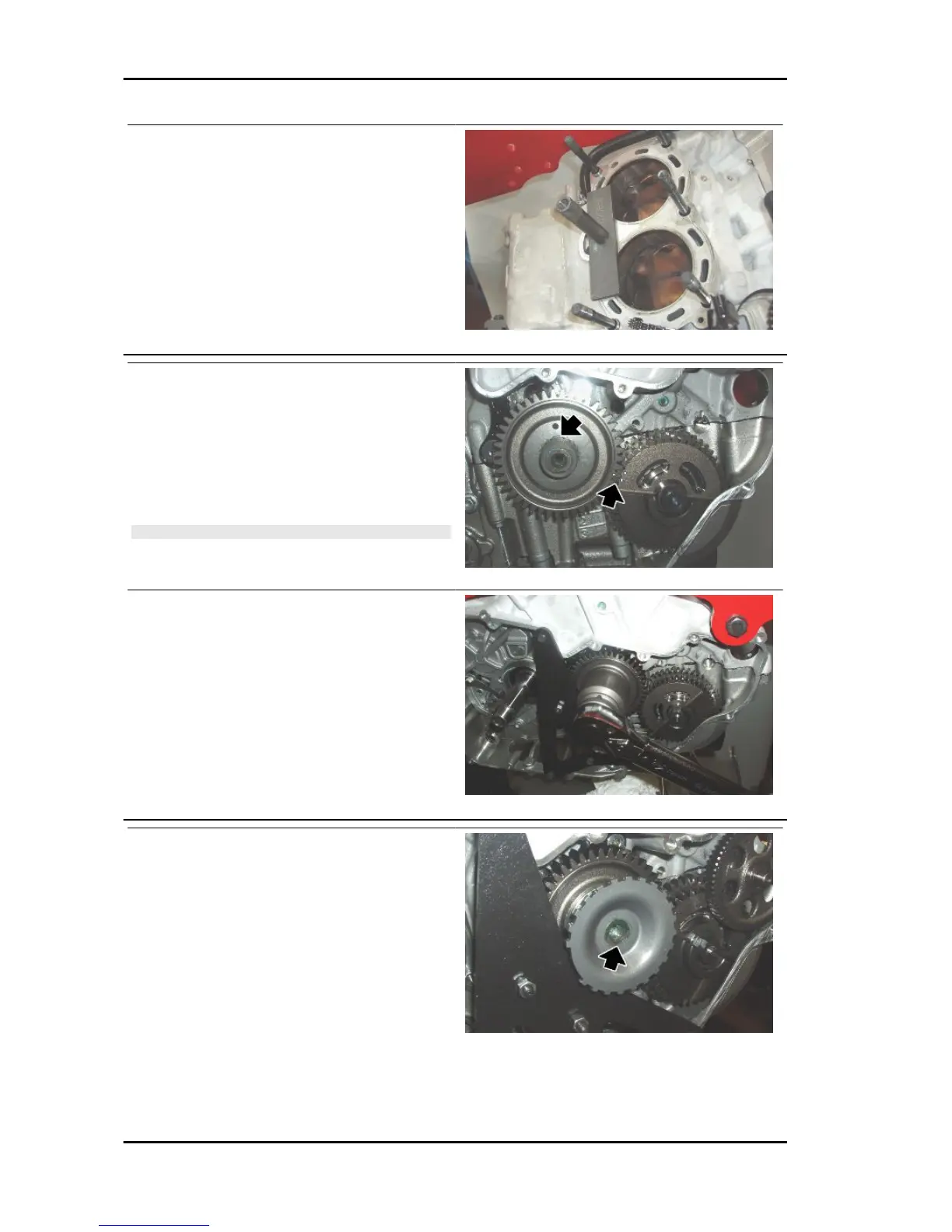

Install the connecting rod shank piston
assembly in the relative cylinders.
•
Join the crankcases.
•
If the special tool was used, remove it
to keep the pistons from coming out.
Specific tooling
020858Y Device for holding the pistons in the
cylinders
•
Install the primary shaft gear correctly
in its seat on the crankshaft from the
clutch side.
•
Make the references on the gears of
the primary shaft and the countershaft
coincide.
NOTE
THE BURIN ON THE PRIMARY SHAFT GEAR TOOTH MUST
BE INSERTED INTO THE SLOT IDENTIFIED WITH TWO
BURINS ON THE COUNTERSHAFT GEAR.
•
Install the crankshaft blocking tool.
•
Tighten the primary shaft fixing nut.
Specific tooling
020850Y Primary gear lock
•
Insert the tone wheel on the crank-
shaft.
The crankshaft and the tone wheel have a bevel
that identifies the fitting direction
Engine RSV4 R
ENG - 334
