APRILIA RSV4 R User Manual

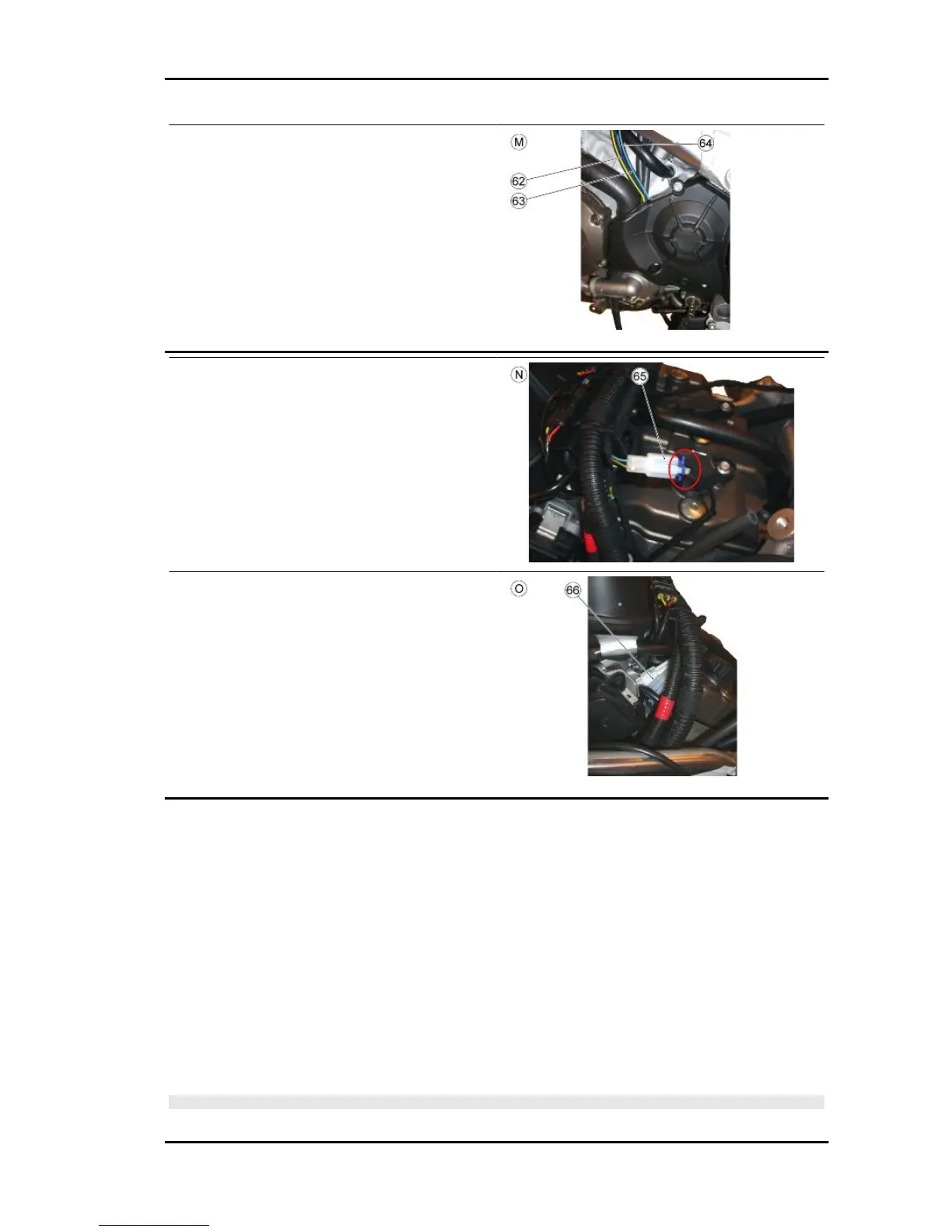

TABLE M
62. Gear sensor cable harness routing
63. Oxygen sensor cable harness routing
64. Stand switch cable harness routing
TABLE N
65. Stand switch connector
TABLE O
66. Position the gear sensor and stand switch con-
nectors under the corrugated pipes (as indicated
in the figure)
TABLE P1 - NOTES FOR FITTING THE GROUND CABLES
67. Flanged M6x15 screw
68. Engine GND lug terminal from the engine cable harness
69. Engine GND lug terminal from the vehicle cable harness
70. Engine - battery ground cable engine Gnd lug terminal
71. Cable grommet
72. Flanged M6x16 screw
73. Chassis GND lug terminal from the engine cable harness
To avoid inverting the ground connections, unscrew the screw (67) from the engine; to connect the
other ground connections, the chassis ground cable (73) can be connected with the screw (72), as
shown in the figure.
CAUTION
BE CAREFUL NOT TO INVERT THE TWO GROUND LUG TERMINALS (68) AND (73).
RSV4 R Electrical system
ELE SYS - 113

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
