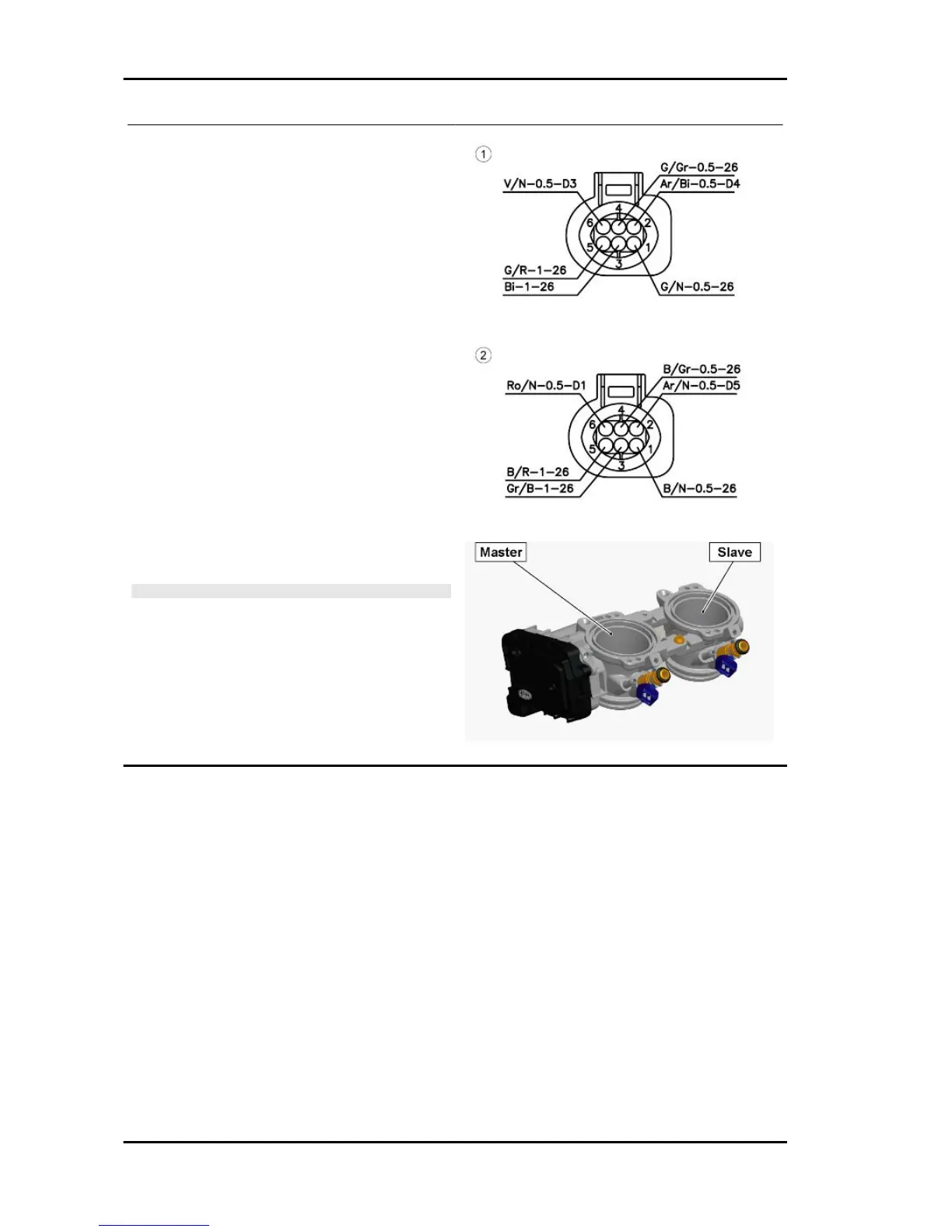

Front cylinders throttle Limp Home position
•
Example value with key ON: 878 mV
Voltage stored in the control unit corresponding to
the Limp home position
Rear cylinders throttle Limp Home position
•
Example value with key ON: 888 mV
Voltage stored in the control unit corresponding to
the Limp home position
Front throttle lower position
•
Example value with key ON: 502 mV
Voltage stored in the control unit corresponding to
the throttle mechanical minimum position
Rear throttle lower position
•
Example value with key ON: 492 mV
Voltage stored in the control unit corresponding to
the throttle mechanical minimum position
CAUTION
BEFORE CARRYING OUT ANY TROUBLESHOOTING,
CAREFULLY READ THE GENERAL TROUBLESHOOTING
CONCEPTS FOR ELECTRICAL DEVICES AT THE BEGIN-
NING OF THE CHECK AND CONTROL SECTION IN THE
ELECTRICAL SYSTEM CHAPTER.
DIAGNOSIS INSTRUMENT: STATUSES
Front throttle automatic self-acquisition
•
ice/ interrupted/carried out/limp home/closed throttle stop/springs check/limp home self-ac-
quisition/initialise
Indicates if self-acquisition carried out by control unit has/has not been carried out: it is essential to
know if the last self-acquisition with key ON has been successful
Rear throttle automatic self-acquisition
•
ice/ interrupted/carried out/limp home/closed throttle stop/springs check/limp home self-ac-
quisition/initialise
Indicates if self-acquisition carried out by control unit has/has not been carried out: it is essential to
know if the last self-acquisition with key ON has been successful
Throttle with diagnosis instrument self-acquisition
Electrical system RSV4 R
ELE SYS - 190
