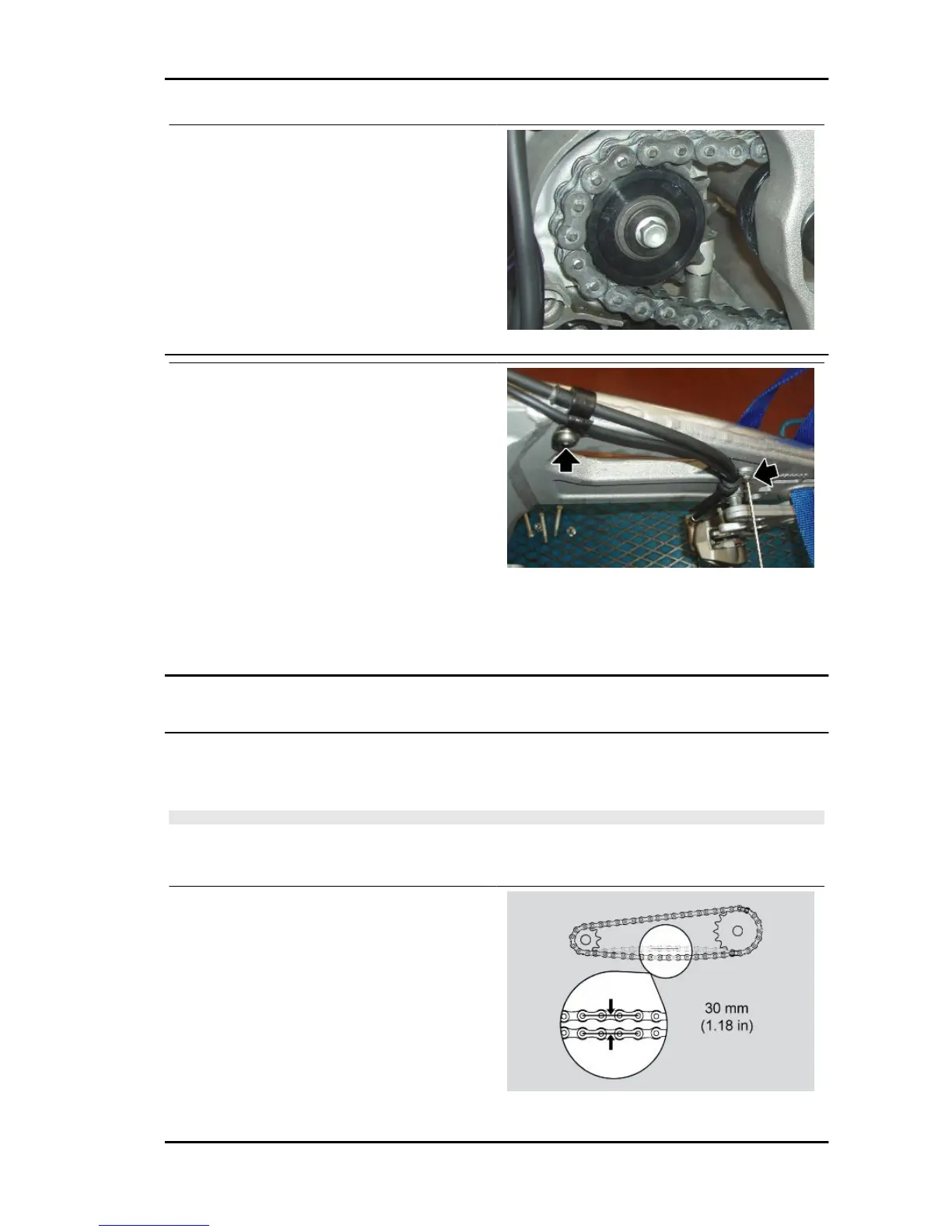

Fit the washer on the screw
•
Tighten the screw.
•
Install the rear shock absorber and the
linkages.
•
Fit the rear brake calliper plate.
•
Fasten the two pipe grommets on the
swingarm
•
Install the rear wheel and the exhaust system.
•
Fit the pinion casing.
•
Adjust the chain tension
Drive chain
Adjusting
The vehicle is fitted with an endless chain, without master link.
NOTE
CARRY OUT MAINTENANCE OPERATIONS AT HALF THE INTERVALS SPECIFIED IF THE VE-
HICLE IS USED IN PARTICULAR RAINY OR DUSTY CONDITIONS, OFF ROAD OR FOR TRACK
USE.
CLEARANCE CHECK
To check clearance:
•
Shut off the engine.
•
Rest the vehicle on its stand.
•
Engage neutral gear.
•
Check that the vertical oscillation at a
point between the pinion and the
sprocket on the lower branch of the
chain is around 30 mm (1,18 in).
RSV4 R Chassis
CHAS - 407

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
