APRILIA RSV4 R User Manual

•

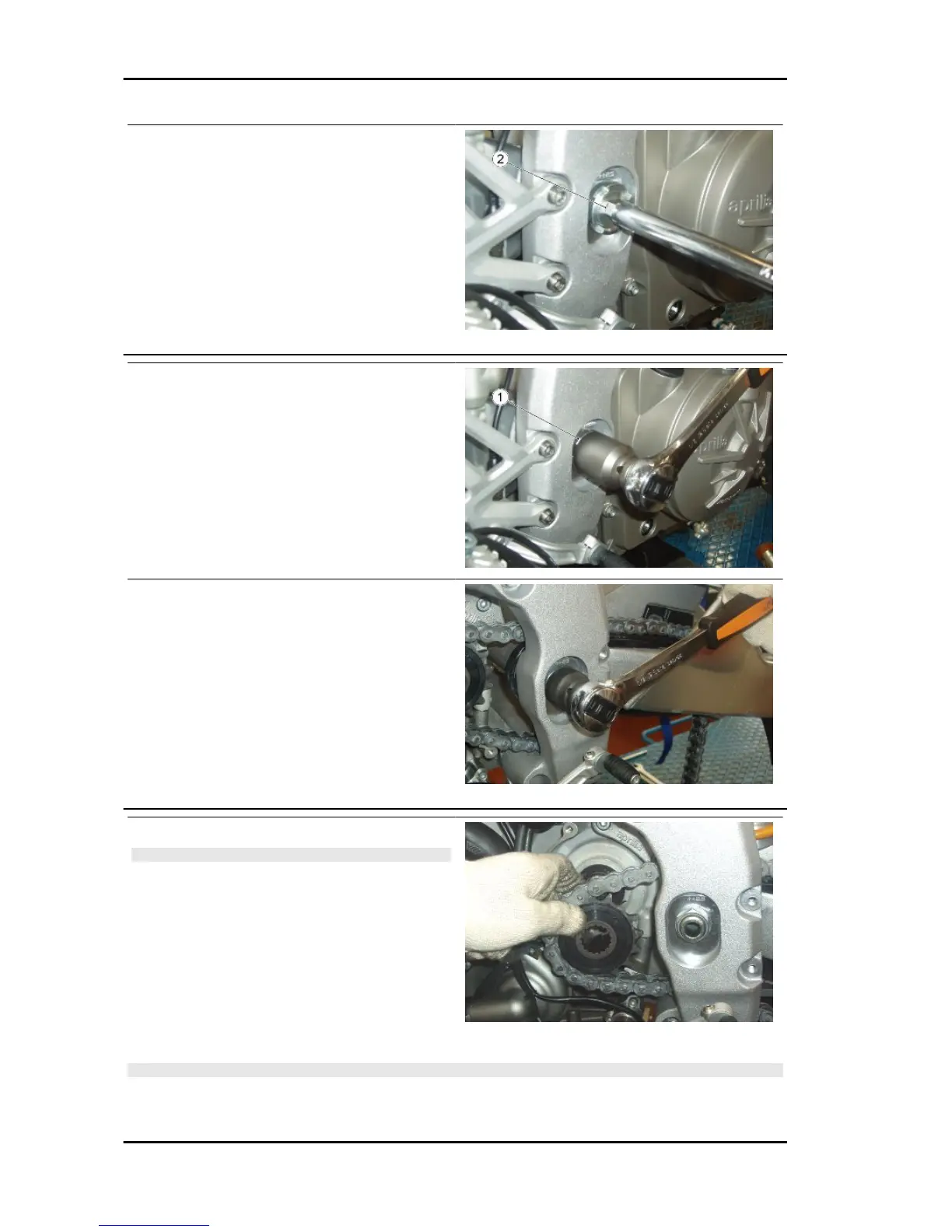

Working from the right hand side of the
vehicle, turn the swingarm pin (2)
clockwise. This turns the adjustment
bushing (3), driving the swingarm in
until fully seated.
•
Tighten the locking ring nut (1).
•
Screw the nut.
•
Refit the chain on the drive pinion
CAUTION
APPLY LOCTITE ANTI-SEIZE ON THE INTERNAL TOOTH-
ING OF THE TRANSMISSION PINION.
•
Fit the pinion and the chain on the shaft.
CAUTION
APPLY LOCTITE 243 ON THE SCREW THREAD.
Chassis RSV4 R
CHAS - 406

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
