APRILIA RSV4 R User Manual

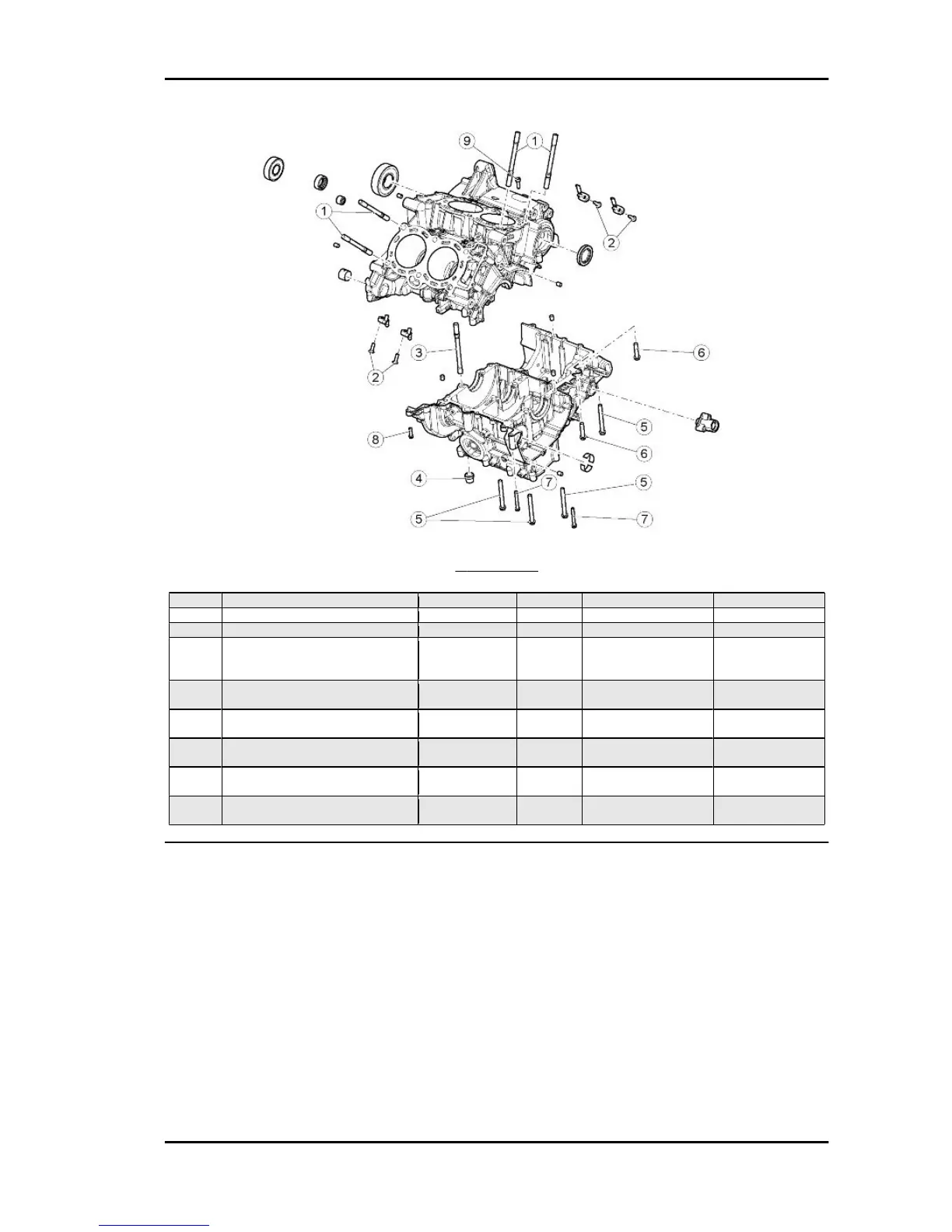

CRANKCASES
pos.
Description Type Quantity Torque Notes
1 Head stud bolts - 12 20 Nm (14.75 lbf ft) Loct. 648 or 270
2 Special screw for piston cooling oil jet - 4 6 Nm (4.42 lbf ft) Loct. 2045
3 Crankcase stud bolts - 6 20 Nm (14.75 lbf ft) Loct. 648 or 270
4 Main crank flanged nut - 6 30 + 55 Nm (22.13 +
40.57 lbf ft)
Molykote - lubricate
the thread and un-
der the head
5 Crankcase fixing screw M8x70 4 25 Nm (18.44 lbf ft) Lubricate the thread
and under the head
6 Crankcase fixing screw M8x35 3 25 Nm (18.44 lbf ft) Lubricate the thread
and under the head
7 Crankcase fixing screw M6x45 2 10 Nm (7.37 lbf ft) Lubricate the thread
and under the head
8 Crankcase fixing screw M6x20 5 10 Nm (7.37 lbf ft) Lubricate the thread
and under the head
9 Crankcase fixing screw M6x20 5 10 Nm (7.37 lbf ft) Lubricate the thread
and under the head
RSV4 R Characteristics
CHAR - 45

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
