APRILIA RSV4 R User Manual

(screen/example value with key set to ON)
•
Drawing number / -
•

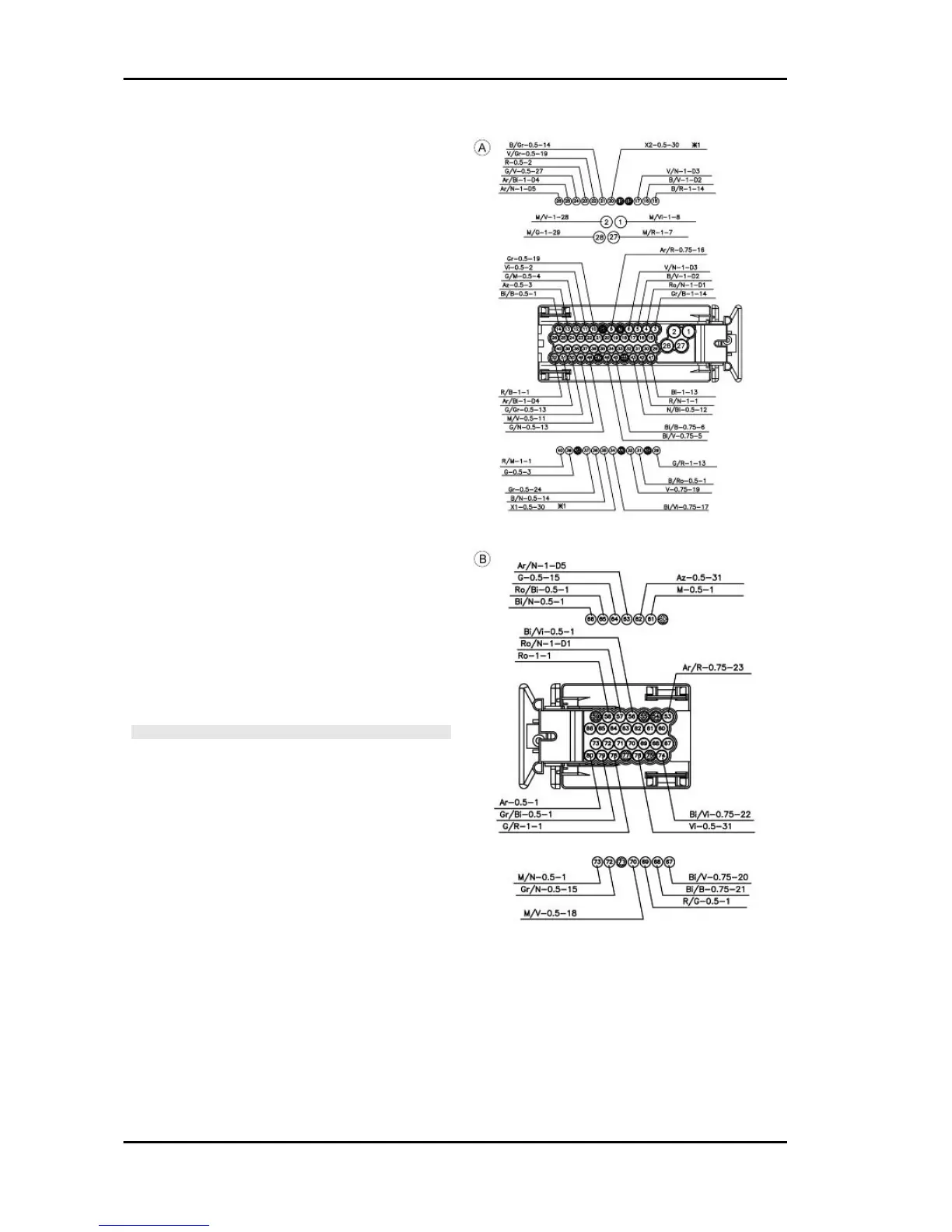

Marelli spare part code /
IAW7SMHW430
•
Hardware number / 00
•
Mapping / -
•
Software version number / 0000
•
Type-approval Code / -
•
ISO Code / -
•
Marelli software code / -
•
Control unit series number (NIP) /
7SMPRA119 - Identifies the single
control unit
•
Person in charge for last program-
ming / - Indicates the series number of
the diagnosis instrument that has car-
ried out the last control unit remapping
DIAGNOSIS INSTRUMENT: PARAMETERS
Nominal idle speed
•
Example value with key ON: 1600 rpm
Adjustable fuel supply
Adjustable fuel correction
CAUTION
BEFORE CARRYING OUT ANY TROUBLESHOOTING,
CAREFULLY READ THE GENERAL TROUBLESHOOTING
CONCEPTS FOR ELECTRICAL DEVICES AT THE BEGIN-
NING OF THE CHECK AND CONTROL SECTION IN THE
ELECTRICAL SYSTEM CHAPTER.
DIAGNOSIS INSTRUMENT: STATUSES
Engine status
•
Indefinite_Key ON_Running engine_Stopped_Power latch_Power latch 2_Power latch fin-
ished
Engine mode
Electrical system RSV4 R
ELE SYS - 144

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
