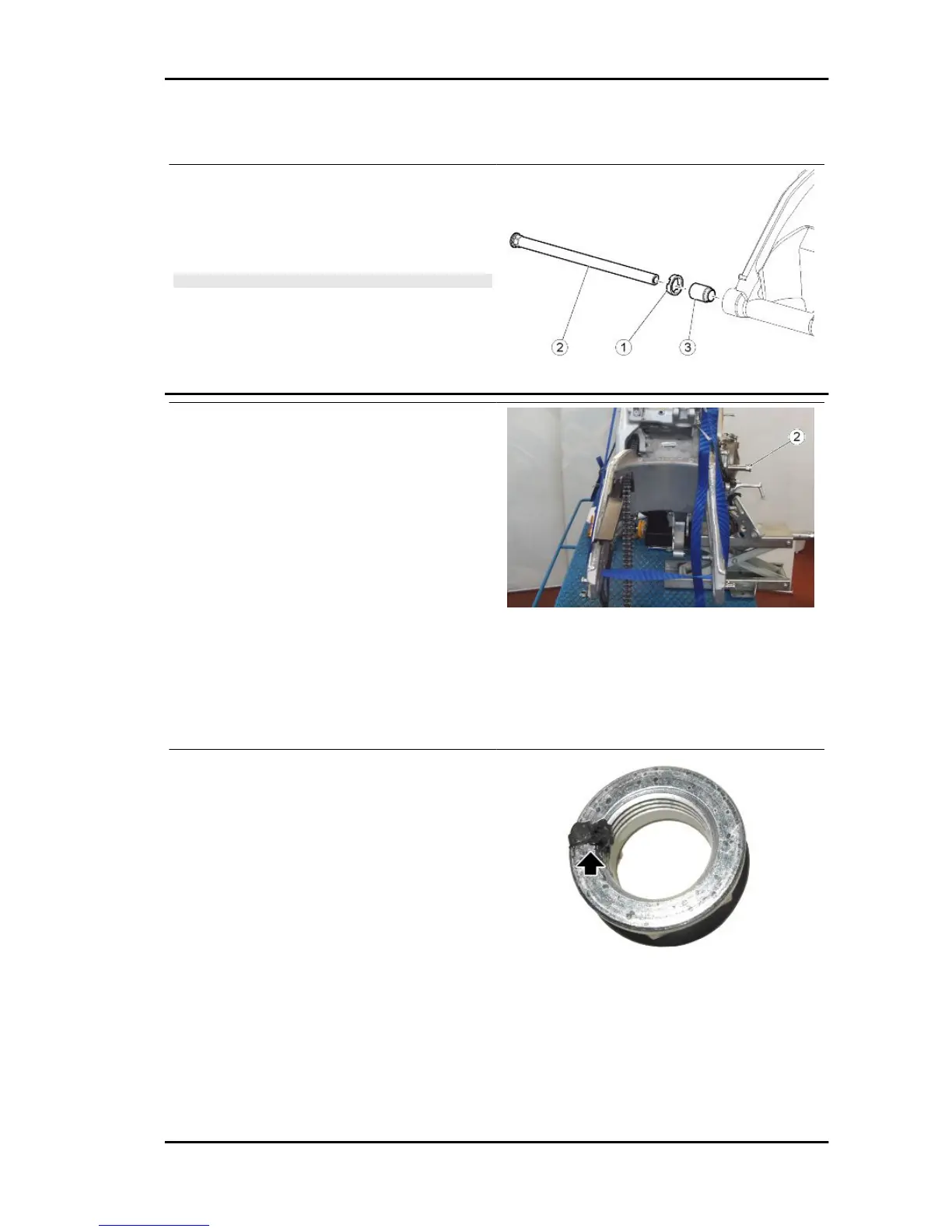

APRILIA RSV4 R User Manual

Installing
•
Spread a thin layer of lubricating
grease all along the swingarm pin.
•
Fit the adjustment bushing (3) to its
seat and tighten it manually.
CAUTION
THE ADJUSTMENT BUSHING (3) MUST NOT PROTRUDE
BEYOND THE CHASSIS INTERNAL EDGE.
•
Place a wooden support under the
front of the swingarm to prevent it from
dropping and hold in position.
•
Support the swingarm from the front;
move it into position so that the holes
are aligned and simultaneously insert
the pin (2) fully.
•
Ensure that the hexagonal area on the
pin head (2) is inserted correctly in the
hexagonal seat inside the adjustment
bushing (3).
•
Fit and hand-tighten the counter ring
nut by a few turns (1).
•
Put some grease on the swingarm pin
nut as indicated
•
Fit and the washer and the swingarm pin fixing nut on the pin and hand-tighten the nut.
RSV4 R Chassis
CHAS - 405

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
