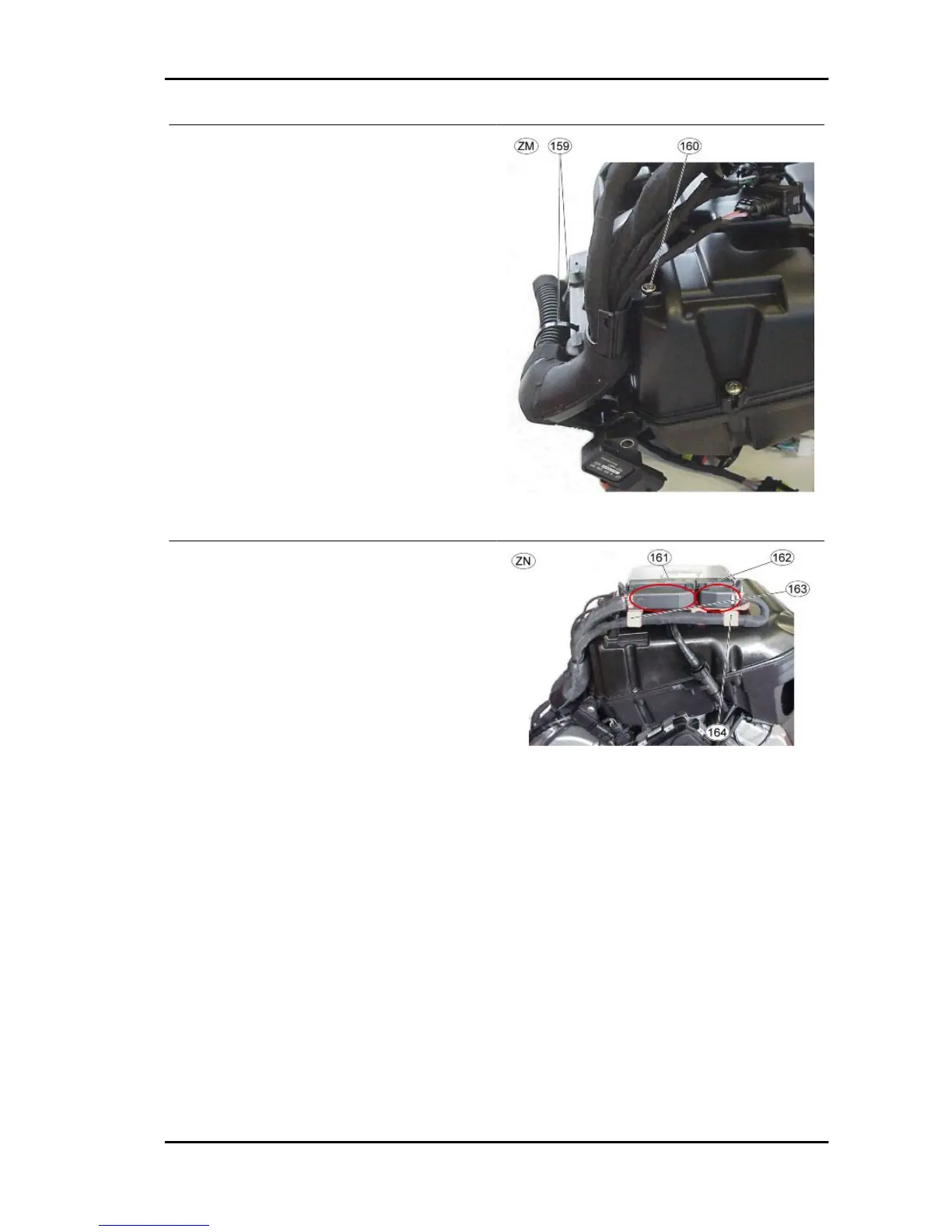

TABLE ZM
159. Clamp
160. Self-tapping 5x20 screw
TABLE ZN
The connectors (161) "ECU 1" (output "26") and
(162) "ECU 2" (output "25") must be connected to
their respective connectors on the 7SM control
unit, being very careful when inserting them. The
slides must move freely until the end of the stroke,
which helps with connector insertion: you must
hear the release of the retaining tang at the end of
the stroke.
161. "ECU 1" cable harness connector (output
"26")
162. "ECU 2" cable harness connector (output
"25")
163. Cable harness routing (output "25") under the
mounting
164. Cable harness routing (output "25") above the
mounting
RSV4 R Electrical system
ELE SYS - 123

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
