APRILIA RSV4 R User Manual

1. Centrifugal pump
2. Thermostatic valve
3. Radiator
4. Electric fans
5. Expansion tank
6. With the thermostat open
7. With the thermostat closed
8. From front head
9. From rear head
10.To upper crankcase

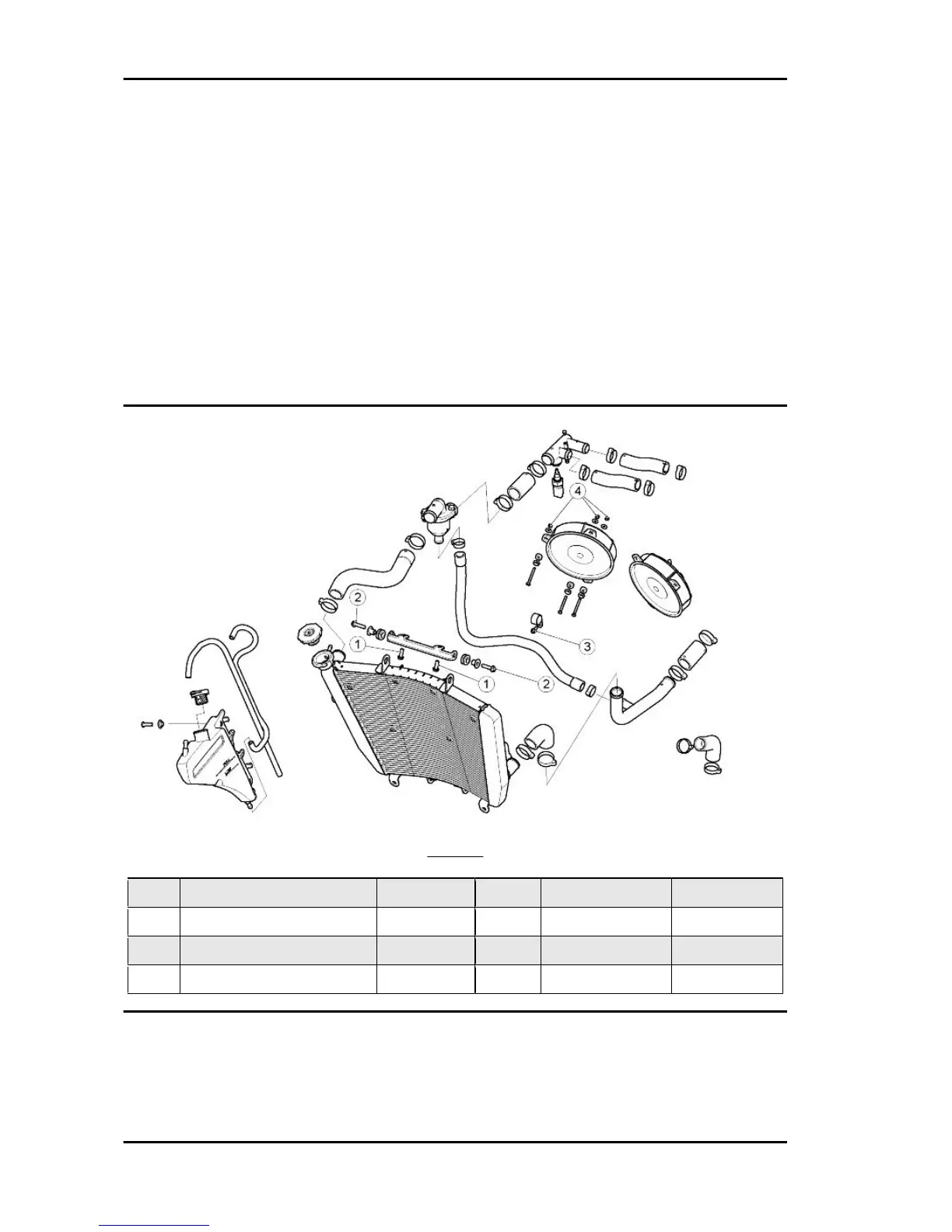

COOLING
pos.
Description Type Quantity Torque Notes
1 Screws fastening water radiator
mounting bracket to chassis
M6 2 10 Nm (7.37 lbf ft) -
2 Screws fastening water radiator to
mounting bracket
M6 2 7 Nm (5.16 lbf ft) -
3 Screw fastening pipe grommet for
By-pass water hose
M5 1 6 Nm (4.42 lbf ft) -
4 Screws fastening electric fan to wa-
ter radiator
M4 6 2 Nm (1.47 lbf ft) -
Cooling system RSV4 R
COOL SYS - 434
