APRILIA RSV4 R User Manual

Specific tooling
020850Y Primary gear lock
020848Y Flywheel retainer
Repeat the following operations:
•
move cylinder piston 1 (left rear piston)
to TDC;
•
turn the crankshaft 150° in the direction
of engine rotation (direction of travel) in
order to align the hole on the intake
camshaft with the specific hole on the
U bolt; this ensures that all the front
cylinder bank valve springs are decom-
pressed.
•
Refit the camshaft timing setting pin in
the hole in the U bolt on the front head,
and refit the crankshaft timing pin from
the flywheel side, to check that the tim-
ing setting was not altered while the
engine was turned with only one cam-
shaft drive gear fastener screw in
place.
•
Remove the camshaft timing pin.
•

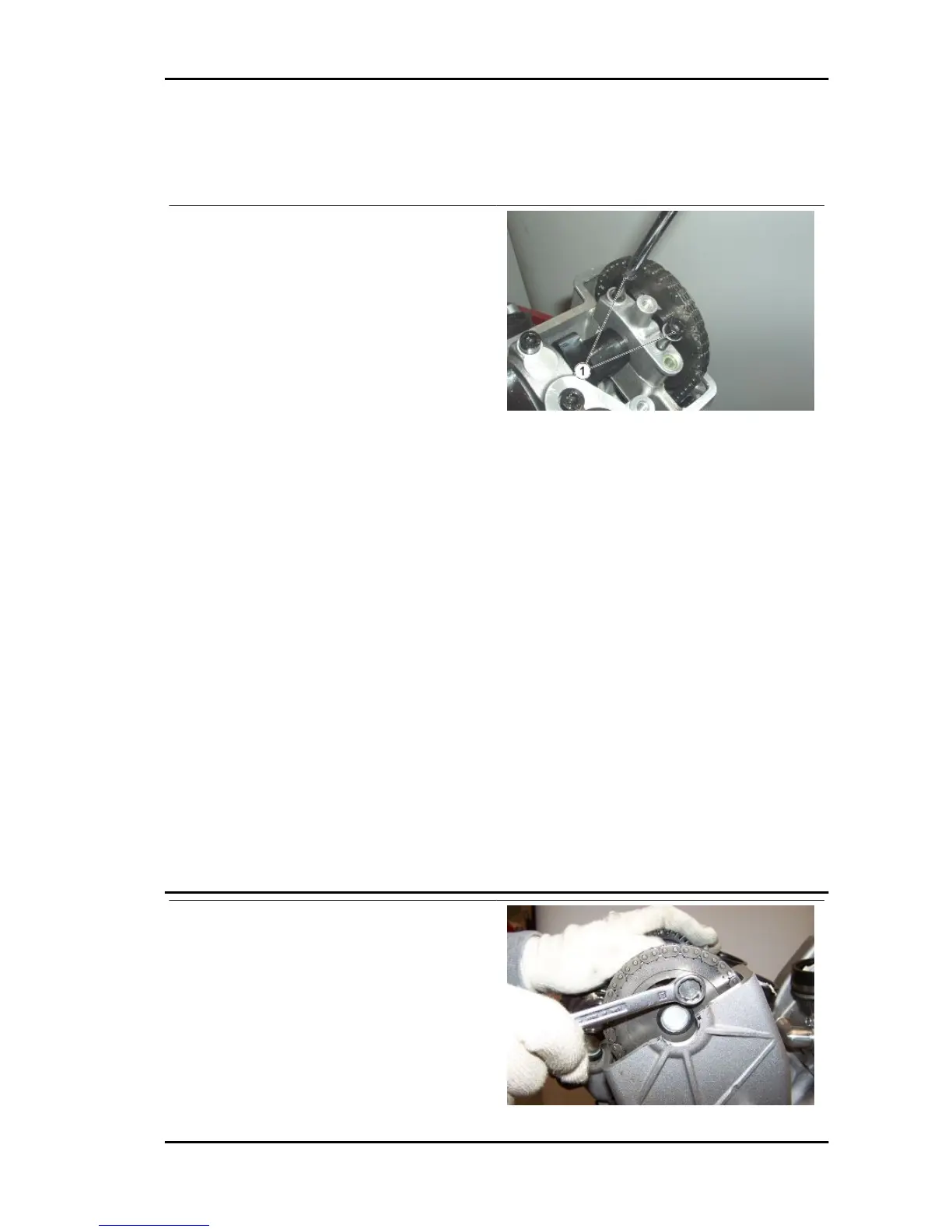

Unscrew and remove the two U bolt
screws (1).
•
Remove the U bolt and the oil pipe.
Specific tooling
020851Y Camshaft timing pin
020852Y Crankshaft timing pin
•
Block crankshaft rotation using one of
the specific tools.
•
Unscrew and remove the second in-
take camshaft gear screw.
•
Leave the gear on the camshaft.
Specific tooling
020848Y Flywheel retainer
020850Y Primary gear lock
RSV4 R Engine
ENG - 277

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
