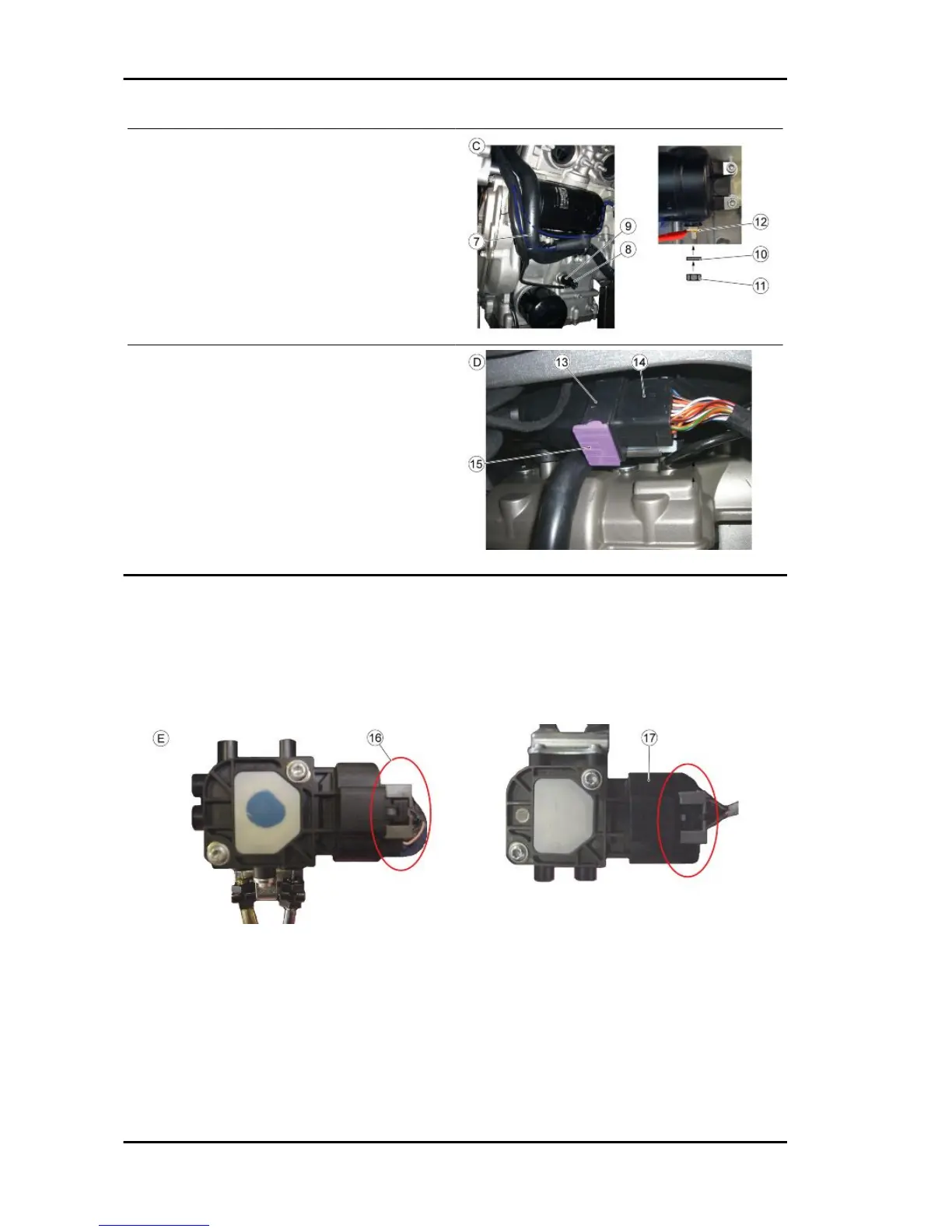

TABLE C - RADIATOR AREA
The ground cable harness routing is behind the
water pipe and behind the starter motor, as indi-
cated by the arrow.
3. Starter motor
4. Clamp
5. Exhaust valve actuator cable harness routing
6. Oil pressure sensor and cable harness routing
TABLE D - RADIATOR AREA
13. Vehicle connector
14. Engine connector
15. Check that the connectors are inserted cor-
rectly and that the purple slide is at the end of
stroke (as shown in the figure).
TABLE E - RADIATOR AREA
Left side
Check that the connectors are inserted correctly and that the security locks are in the locked
position.
16. Master Demand connector (blue). 17 Slave Demand connector (white)
Electrical system RSV4 R
ELE SYS - 108
