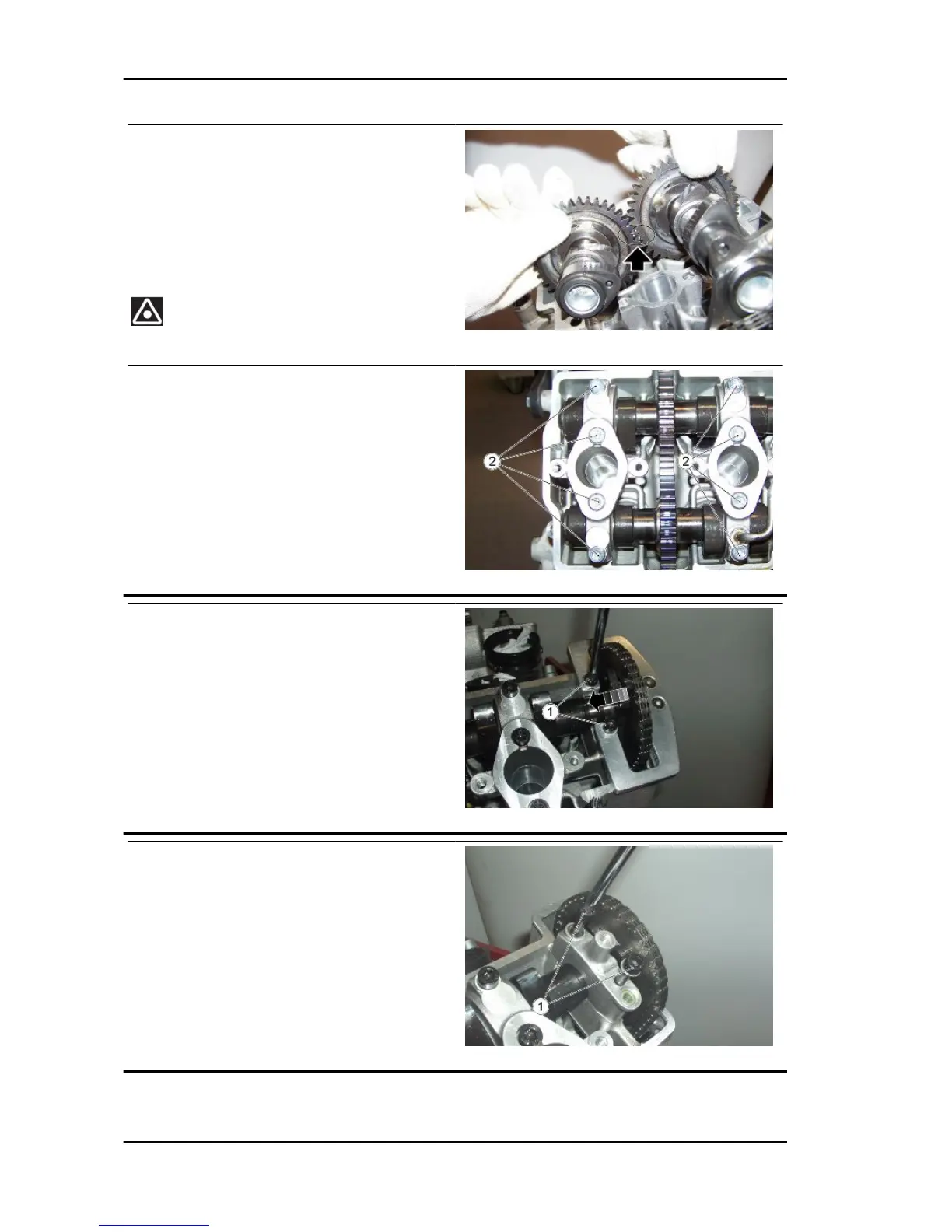

Install the intake and exhaust cam-
shafts on the front head, bearing in
mind that:
the exhaust camshaft gear tooth (indicated with a
dot) is meshed with the trough of the intake cam-
shaft gear (indicated with two dots).
CLEAN THOROUGHLY THE SEATS OF THE GEAR RE-
TAINER SCREWS, ON THE INTAKE CAMSHAFT.
•
Fit the U bolts with the nine O rings and
locator pins.
•
Fit the new washers under the screws
(2) near the spark plug holes only.
•
Tighten the seven screws (2) operating
in stages and diagonally.
•
Do not fit the eighth screw (2 - fastening
the oil pipe) yet.
•
Move the gear from the mounting tool
to the camshaft.
•
Unscrew and remove the two screws
(1).
•
Remove the tool.
Specific tooling
020865Y Support for camshaft gear on head
•
Fit the U bolt and the oil pipe.
•
Tighten the two U bolt screws (1) and
the screw (2) that was not fitted previ-
ously.
Engine RSV4 R
ENG - 280
