APRILIA RSV4 R User Manual

•
Unscrew and remove the second in-
take camshaft gear screw.
•
Remove the crankshaft locking tool.
Specific tooling
020850Y Primary gear lock
020848Y Flywheel retainer
•

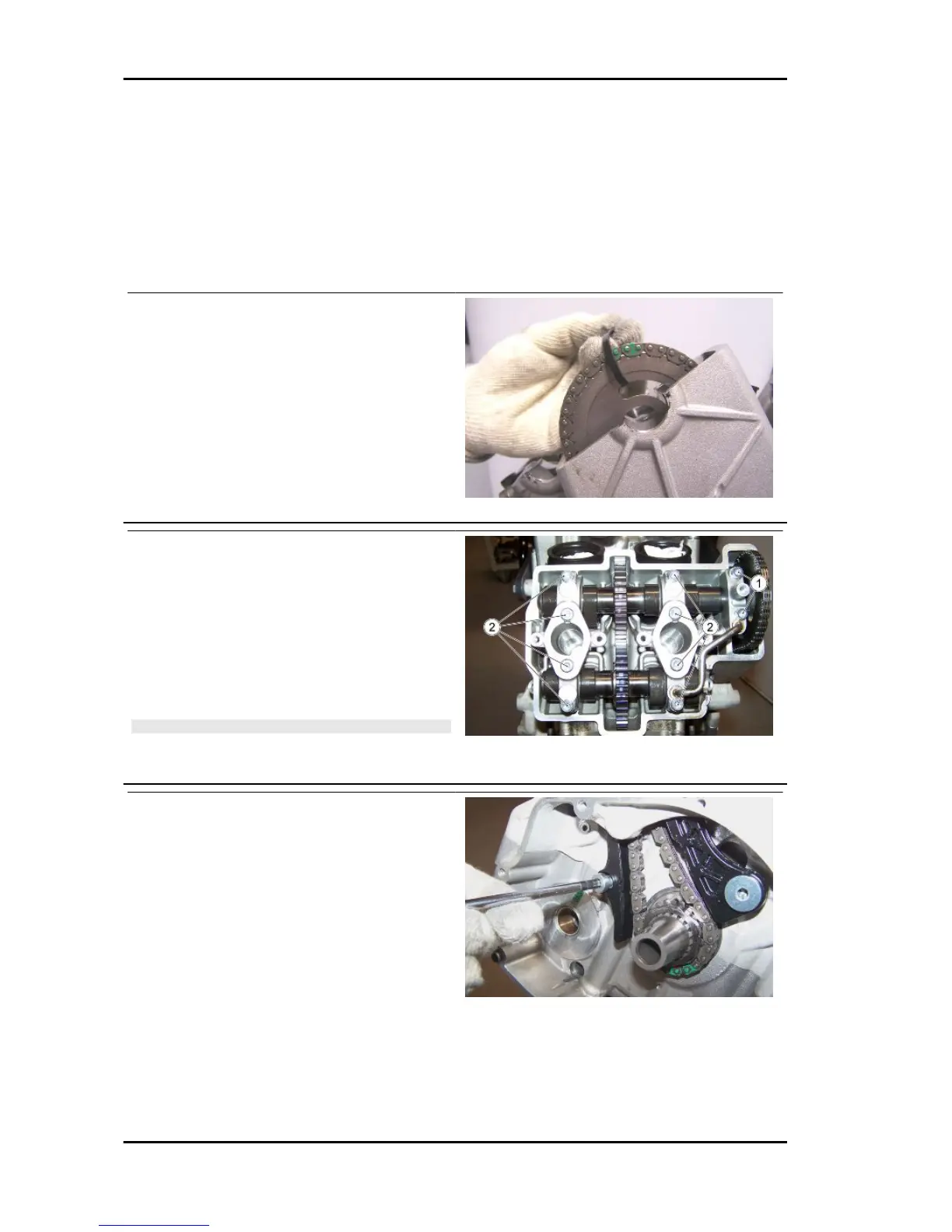

Slide the gear off the intake camshaft.
•
Block the gear to the timing chain with
a clamp.
•
Unscrew and remove the ten screws
(1-2), proceeding in stages and in a
crossed pattern.
•
Retrieve the washers from the screws
(2) near the spark plug holes.
•
Remove the U bolts with the O rings
and locator pins.
NOTE
MARK THE COMPONENTS TO PREVENT INCORRECT RE-
FITTING.
•
Remove the intake and exhaust cam-
shafts from the front head.
•
Unscrew and remove the fixed chain
slider screw.
•
Remove the fixed chain slider.
Engine RSV4 R
ENG - 284

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
