APRILIA RSV4 R User Manual

NOTE
Engines up to engine No. V4 2470 are equipped with con-
ventional exhaust camshaft gears, while engines from en-
gine No. V4 2471, are equipped with self-adjusting exhaust
camshaft gears.
•

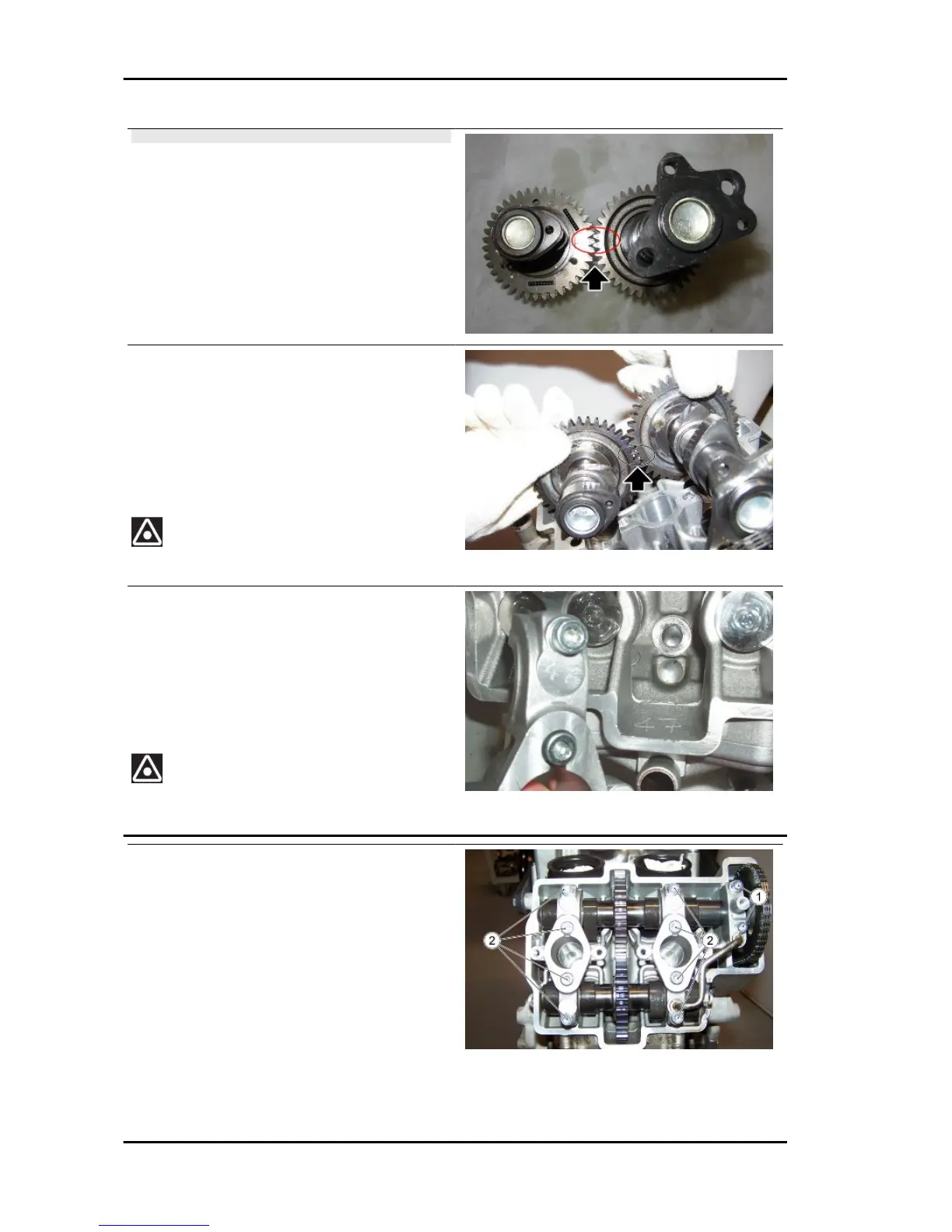

Install the intake and exhaust cam-
shafts on the front head, bearing in
mind that:
the exhaust camshaft gear tooth (indicated with a
dot) is meshed with the trough of the intake cam-
shaft gear (indicated with two dots).
CLEAN THOROUGHLY THE SEATS OF THE GEAR RE-
TAINER SCREWS, ON THE INTAKE CAMSHAFT.
•
Check the number engraved on the U
bolts, which must correspond with the
one engraved on the head.
•
If the U bolts between the two heads
are inverted, camshaft seizure may oc-
cur
IT IS NOT POSSIBLE TO REPLACE ONLY ONE U BOLT, IF
NECESSARY: REPLACE THE ENTIRE HEAD.
•
Fit the U bolts with the nine O rings and
locator pins.
•
Install the oil pipe.
•
Fit the new washers under the screws
(2) near the spark plug holes only.
•
Tighten the ten screws (1 - 2) working
in stages and diagonally.
Engine RSV4 R
ENG - 290

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
