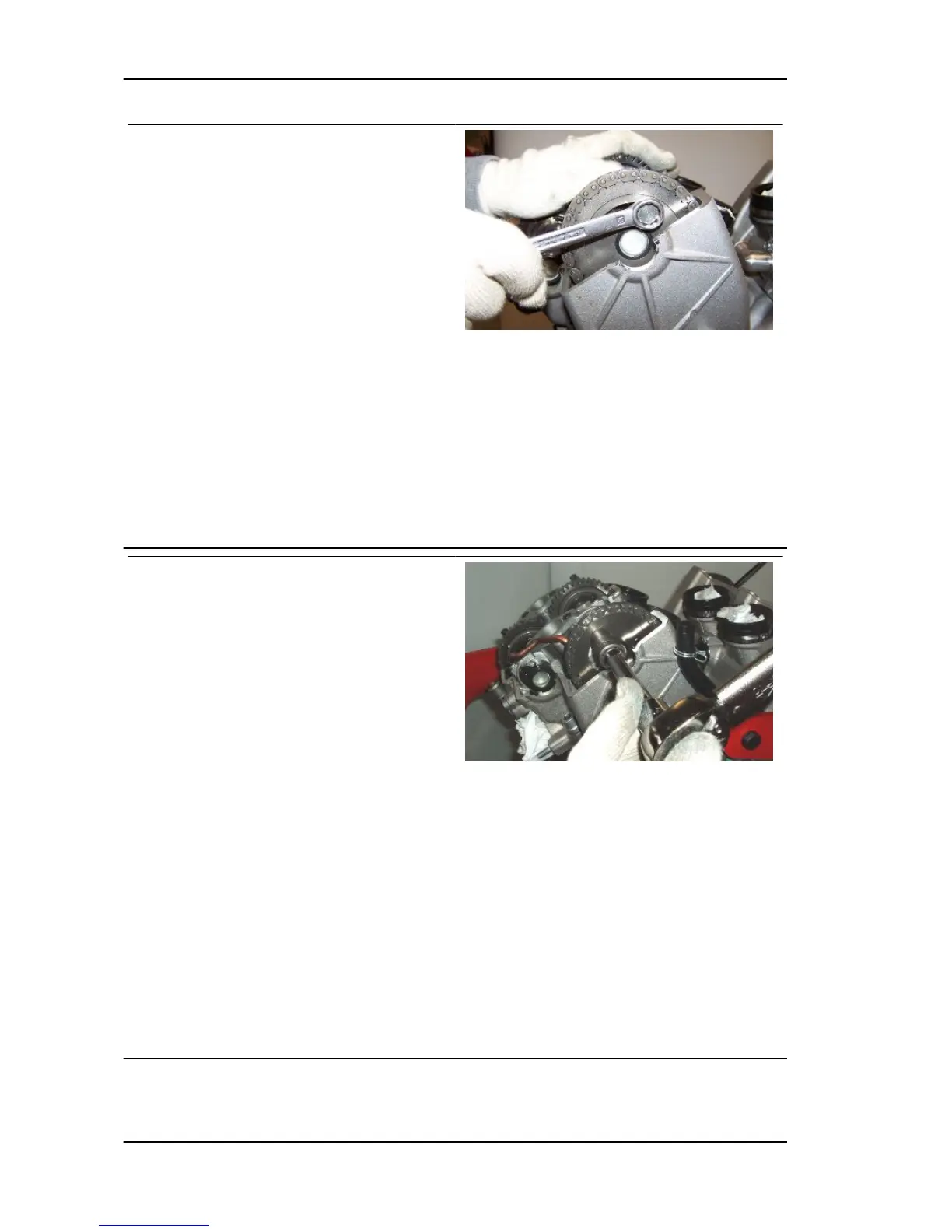

Turn the crankshaft until the gear
screw covered by the head when the
hole on the camshaft gear is aligned
with the hole on the U bolt, is visible.
•
Block crankshaft rotation using one of
the specific tools.
•
Unscrew and remove the camshaft
gear screw.
•
Remove the crankshaft locking tool.
Specific tooling
020850Y Primary gear lock
020848Y Flywheel retainer
See also
Head cover removal
Removing the
clutch cover
Repeat the following operations:
•
move cylinder piston 1 (left rear piston)
to TDC;
•
turn the crankshaft by 450° (one com-
plete turn + 90°) in the direction of en-
gine rotation (direction of travel) to
align the hole on the intake camshaft
with the specific hole on the U bolt. This
ensures that all the rear cylinder bank
valve springs are decompressed.
•
Block crankshaft rotation using one of
the specific tools.
•
Unscrew and remove the second in-
take camshaft gear screw.
•
Remove the crankshaft locking tool.
Specific tooling
020850Y Primary gear lock
020848Y Flywheel retainer
Engine RSV4 R
ENG - 300
