APRILIA RSV4 R User Manual

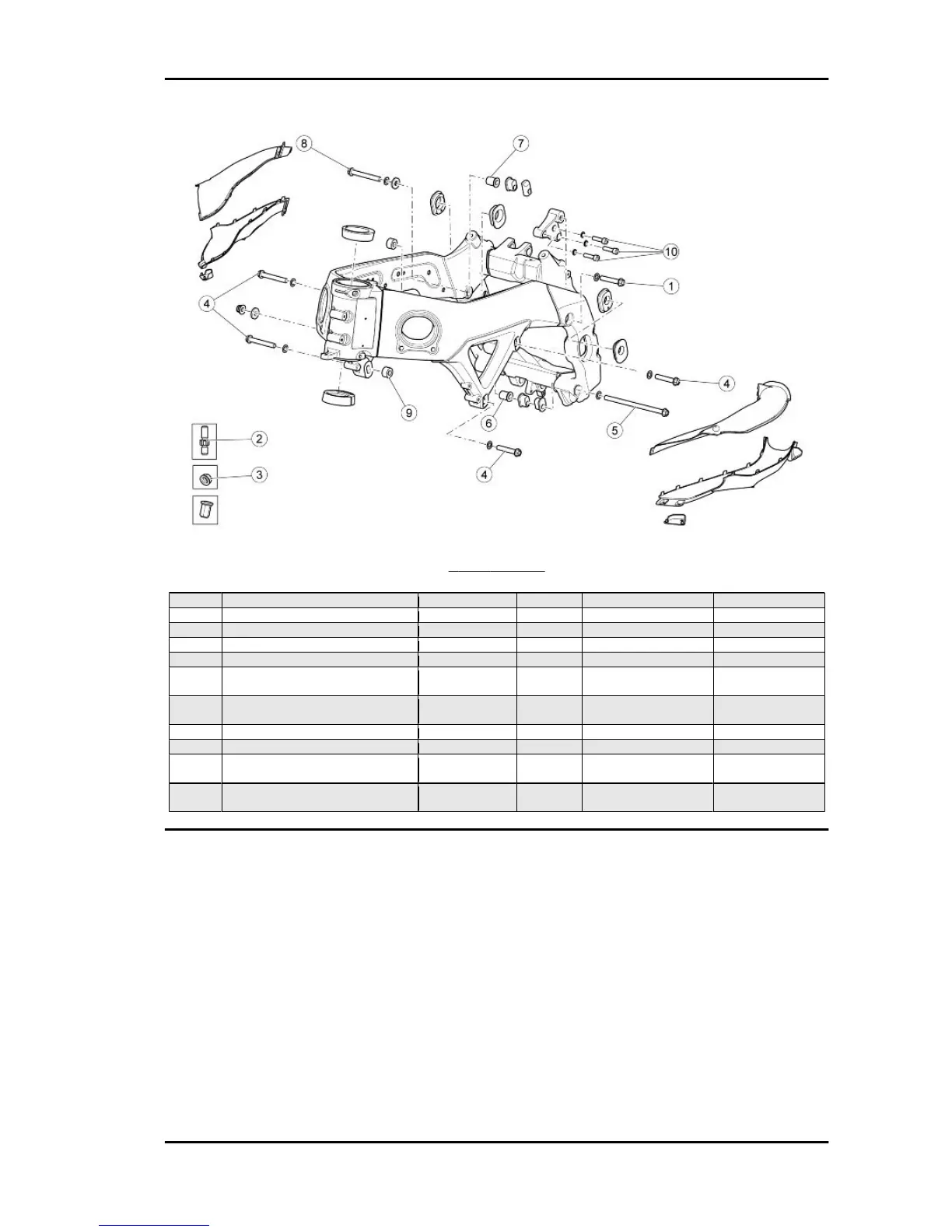

FRONT CHASSIS
pos.
Description Type Quantity Torque Notes
1 Upper rear mount M10 1 50 Nm (36.88 lbf ft) -
2 Threaded intake duct fastener pins M6 2 + 2 4 Nm (2.95 lbf ft) Loct. 243
3 Intake duct fixing nuts M6 2 + 2 Manual -
4 Front mounts M10 2 + 2 50 Nm (36.88 lbf ft) -
5 Lower rear mount M10 1 50 Nm (36.88 lbf ft) -
6 Lower rear right hand adjuster screw
bushing
M18x1.5 1 12 Nm (8.85 lbf ft) -
7 Upper rear right hand adjuster screw
bushing
M18x1.5 1 12 Nm (8.85 lbf ft) -
8 Upper rear right hand mount M10 1 50 Nm (36.88 lbf ft) -
9 Right fairing spacer M6 1 10 Nm (7.37 lbf ft) Loct. 243
10 Upper rear left hand engine mount
fastener screws
M8 3 25 Nm (18.44 lbf ft) -
- Screw fastening the ground cable to
the left side chassis
M6 1 6 Nm (4.42 lbf ft) -
RSV4 R Chassis
CHAS - 399

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
