APRILIA RSV4 R User Manual

Removal
•
Remove the front wheel.
The following operations refers to a single disc
but apply to both.
To unscrew the screws (1), use an air screwer gun
to give a clean blow, which will detach the screws
stuck with LOCTITE 243.
•

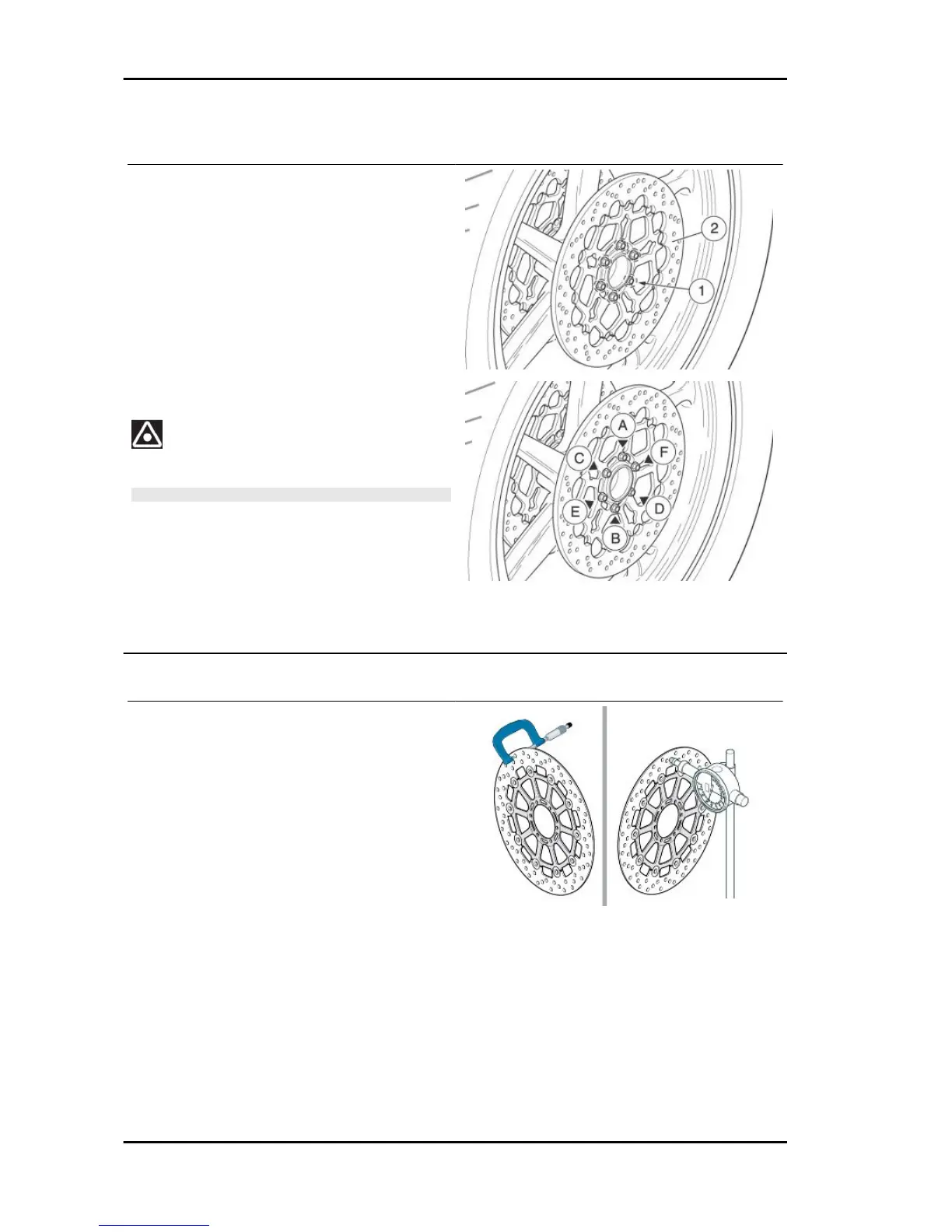

Unscrew and remove the six brake disc
screws (1).
•
Remove the brake disc (2).
UPON REFITTING, APPLY LOCTITE 243 ON THE THREAD
OF THE BRAKE DISC SCREWS (1).
CAUTION
UPON REFITTING, SCREW ALL THE SCREWS (1) MAN-
UALLY AND TIGHTEN THEM OPERATING DIAGONALLY
FOLLOWING THIS SEQUENCE: A-B-C-D-E-F.
See also
Removing the front wheel
Disc Inspection
•
The following operations must be car-
ried out with the brake discs fitted on
the wheel; they refer to a single disc,
but are valid for both.
•
Check the disc for wear by measuring
the minimum thickness with a micro-
meter in different points. If the mini-
mum thickness, even in a single point
of the disc, is less than the minimum
value, replace the disc.
Disc thickness minimum value: 4 mm (0.16 in)
•
Using a dial gauge, check that the max-
imum oscillation of the disc does not
exceed the tolerance; otherwise, re-
place it.
Braking system RSV4 R
BRAK SYS - 424
