User's Manual 54 Document #: LTRT-10632
Mediant 800B Gateway & E-SBC
6.1.2 Accessing the Web Interface
The following procedure describes how to access the Web interface.
To access the Web interface:
1. Open a standard Web browser.
2. In the Web browser, specify the OAMP IP address of the device (e.g.,
http://10.1.10.10); the Web interface's Login window appears, as shown below:

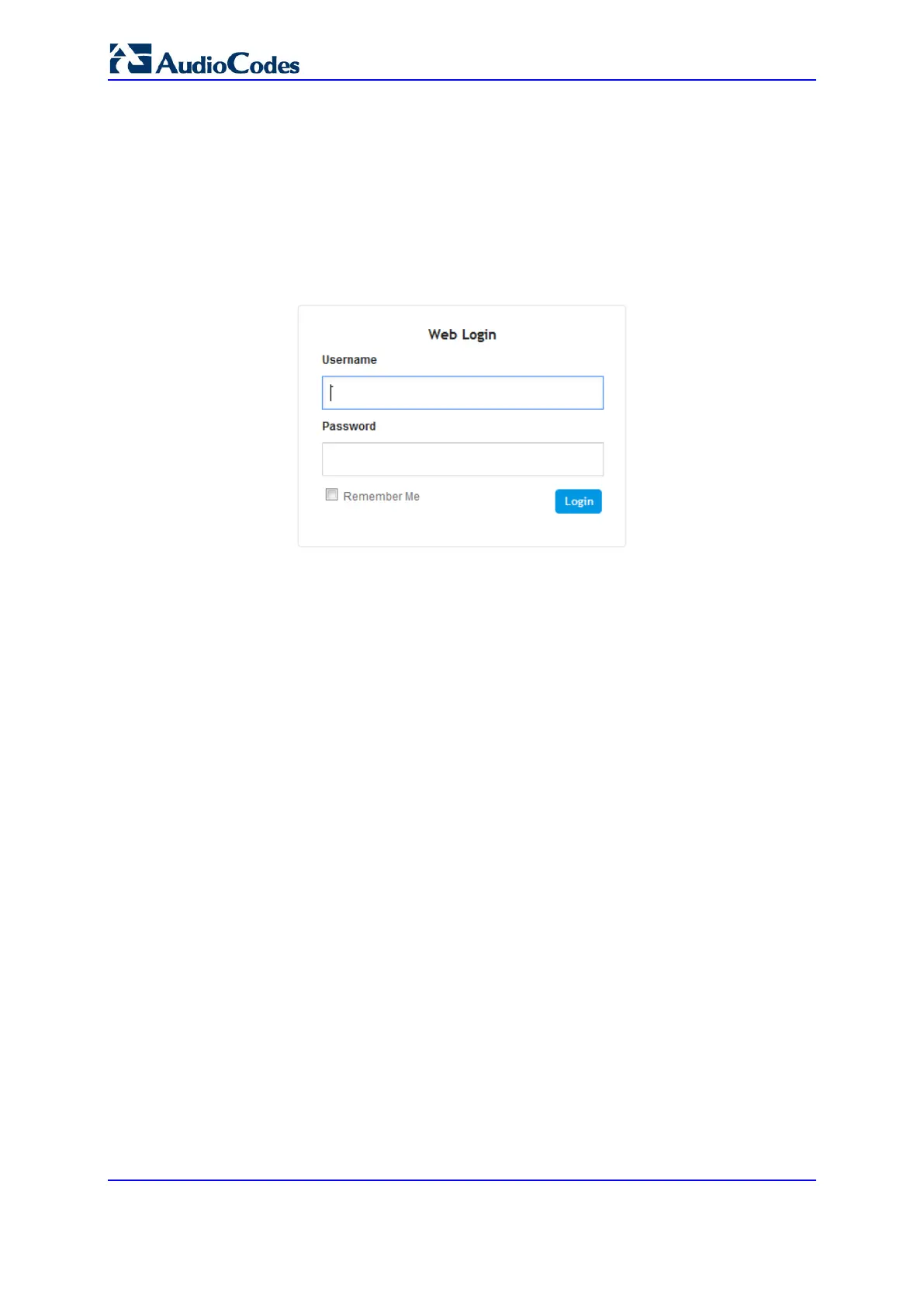

Figure 6-1: Web Login Screen
3. In the 'Username' and 'Password' fields, enter the username and password,
respectively. The credentials are case-sensitive.
4. If you want the Web browser to remember your username and password, select the
'Remember Me' check box and then agree to the browser's prompt (depending on
your browser). On your next login attempt, the 'Username' field is automatically
populated with your username. Simply press the Tab or Enter key to auto-fill the
'Password' field, and then click Login.
5. Click Login.
