53.10 Congratulations Page

The Congratulations wizard page is the last wizard page and allows you to complete

configuration.

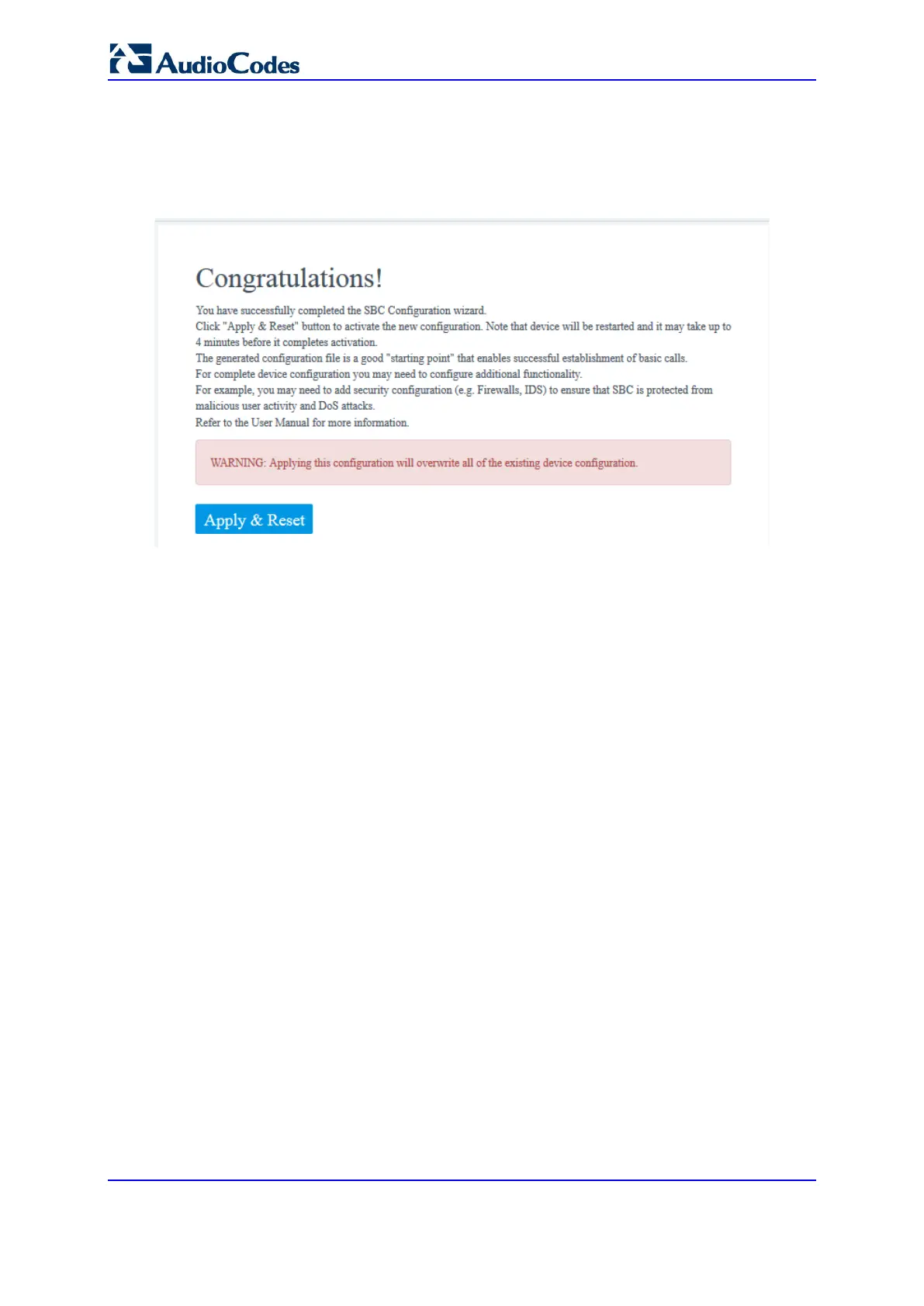

Figure 53-10: SBC Configuration Wizard - Congratulations Page

 To complete the SBC Configuration Wizard:

Click Apply & Reset to apply configuration to the device or click Save INI File to save

configuration as an ini file on your PC.
