User's Manual 826 Document #: LTRT-10632

Mediant 800B Gateway & E-SBC

• Navigation tree: Setup menu > Administration tab > Maintenance folder > High

Availability Maintenance.

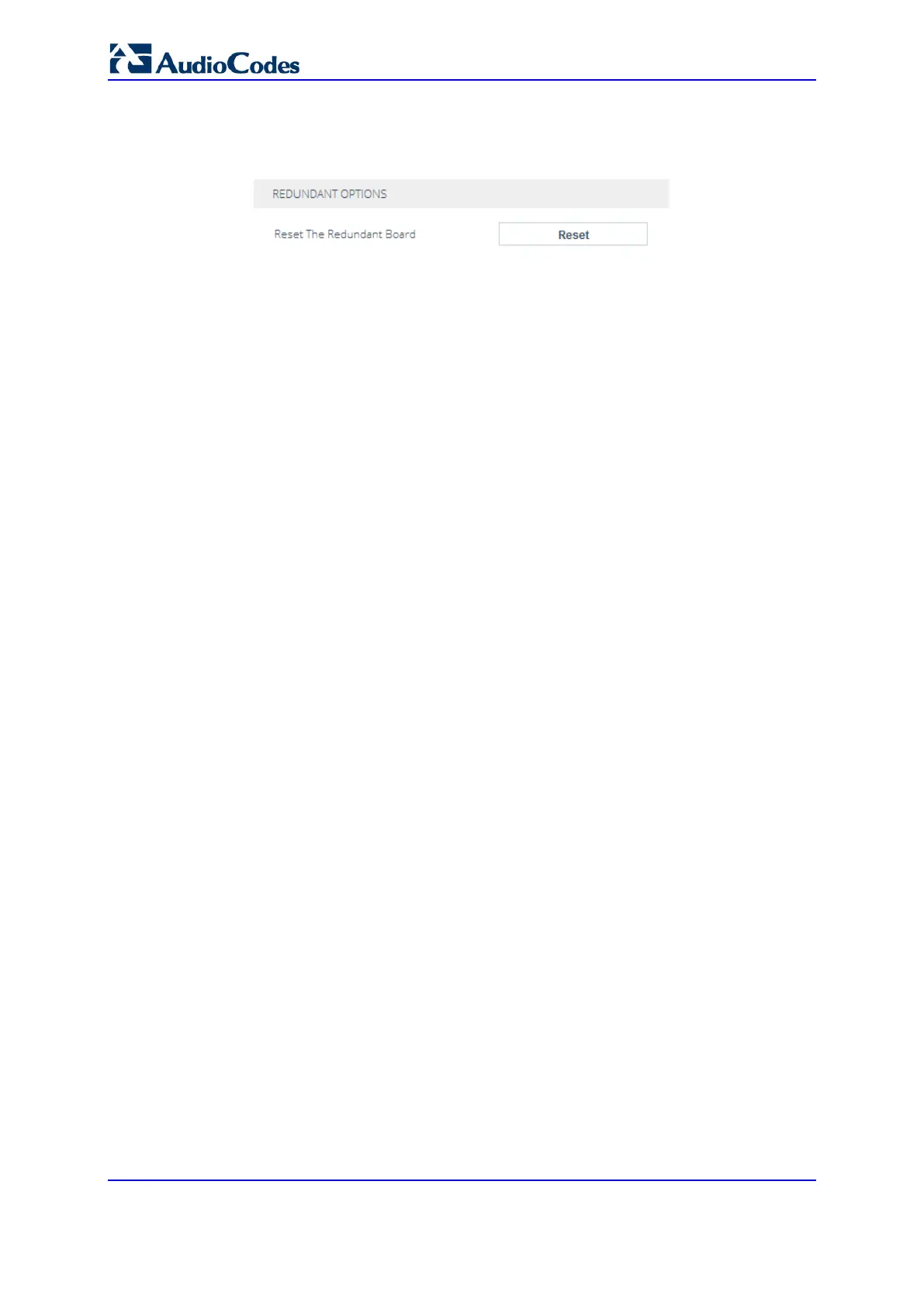

Figure 45-2: Resetting Redundant Device

2. click Reset; a confirmation box appears requesting you to confirm.

3. Click OK.
