Automationdirect.com DL05 User Manual

Standard
RLL Instructions
5–81
Standard RLL Instructions
Bit Operation Instructions
DECO
The Decode instruction decodes a 5 bit
binary value of 0–31 (0–1F HEX) in the
accumulator by setting the appropriate bit
position to a 1. If the accumulator contains
the value F (HEX), bit 15 will be set in the
accumulator. If the value to be decoded is
greater than 31, the number is divided by
32 until the value is less than 32 and then
the value is decoded.

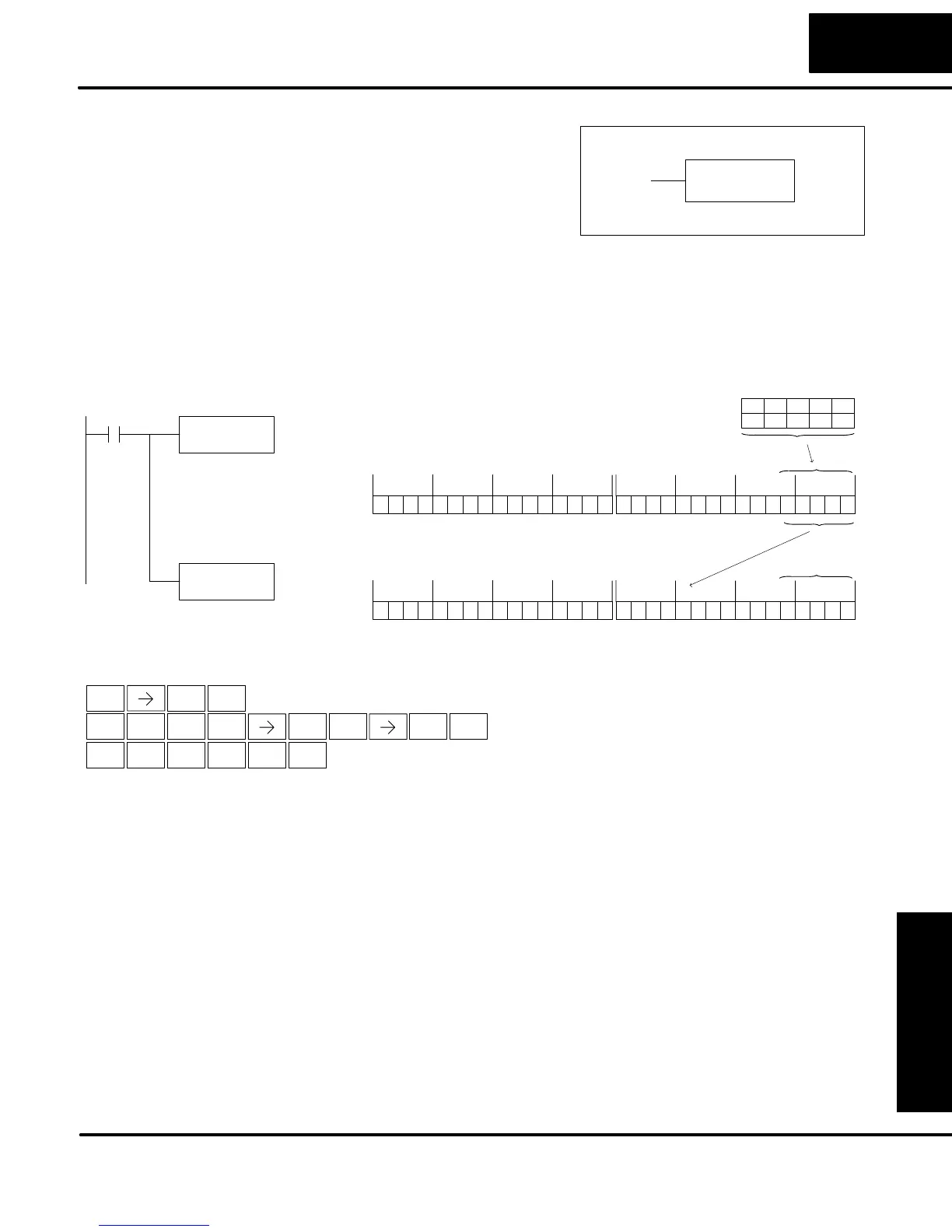

In the following example when X1 is on, the value formed by discrete locations
X10–X14 is loaded into the accumulator using the Load Formatted instruction. The
five bit binary pattern in the accumulator is decoded by setting the corresponding bit
position to a “1” using the Decode instruction.
Handheld Programmer Keystrokes
DirectSOFT
LDF X10
K5
X1
Load the value in
represented by discrete
locations X10–X14 into the
accumulator
DECO
Decode the five bit binary
pattern in the accumulator
and set the corresponding
bit position to a “1”
X10X11X12X13
ONONOFFON
X14
OFF
00000000000010110000000000000000
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1631 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
Acc.
00001000000000000000000000000000
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1631 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
Acc.
The binary vlaue
is converted to
bit position 11.
STR
$
ENT
SHFT
ANDST
L
3
D
5
F
1
B
1
B
0
A
ENT
5
F
SHFT
2
C
INST#
O
ENT
3
D
4
E
Decode
(DECO)
