Installation and
Safety Guidelines
Installation, Wiring,
and Specifications
2–47
Installation, Wiring, and Specifications

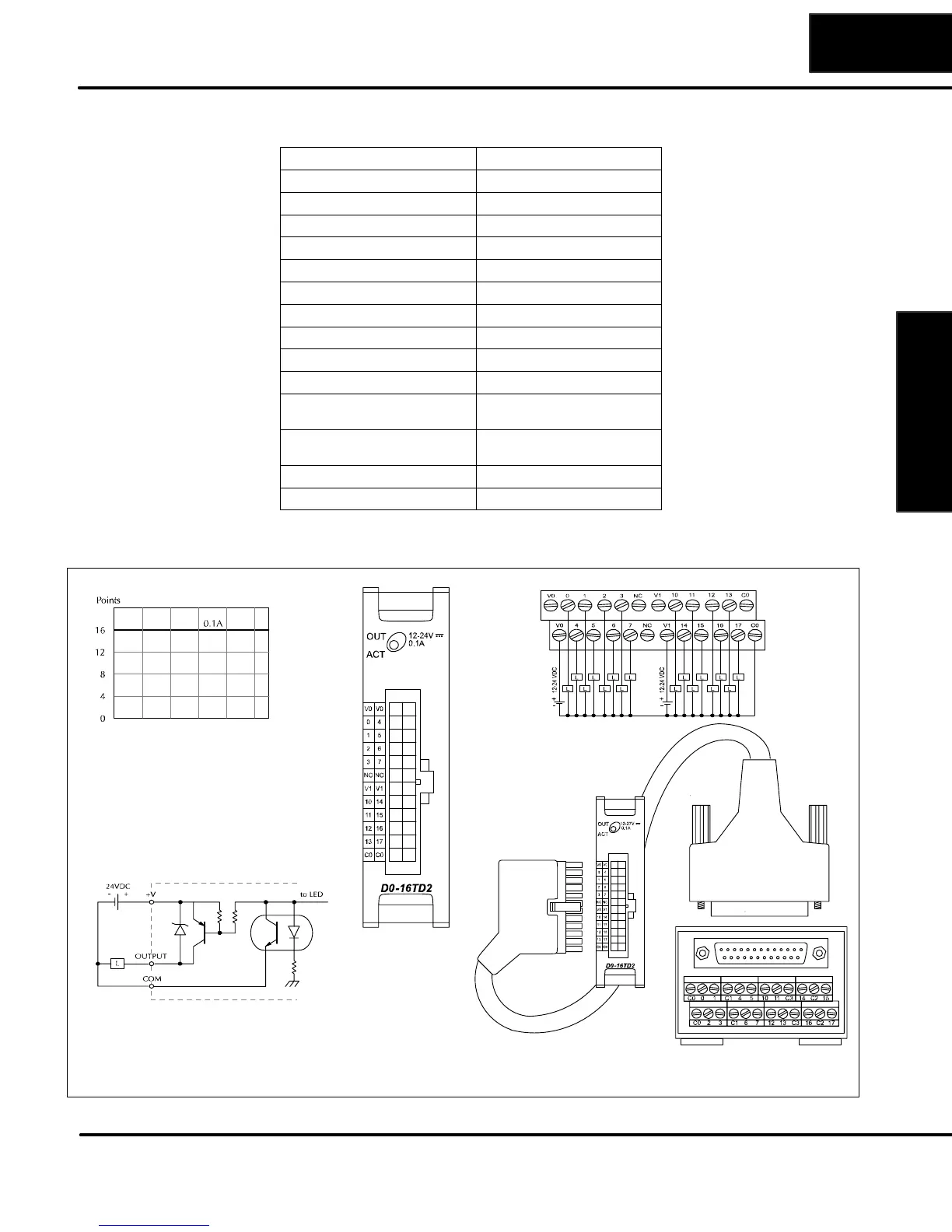

D0–16TD2 DC Output
Outputs per module 16 (sourcing)
Operating voltage range 12–24 VDC
Output voltage range 10.8–26.4 VDC
Peak Voltage 50.0 VDC
Maximum output current 0.1 A/point, 0.8 A/common
Minimum output current 0.5 mA
Maximum leakage current 1.5 A @ 26.4 VDC
ON voltage drop 1.0 VDC @ 0.3 A
Maximum inrush current 1 A for 10 ms
OFF to ON response < 0.5 ms
ON to OFF response < 0.5 ms
Status indicators Module activity:
one green LED
Commons per module 2 non–isolated
(8 points/common)
Fuse N/A
Base power required (5V) Max. 200 mA (all pts. ON)
Equivalent input circuit
Derating Chart
Wiring for ZL–CM056
Use Ziplink ZL–CBL056 cable and ZL–CM056 connector
module or build your own cables using 24–pin Molex Micro
Fit 3.0 receptacle, part number 43025, or compatible.
0
10 20 30 40 50 55
Ambient Temperature (°C/°F)
32
50 68 86 104 122 131
C°
F°
Note: The DL05 must have firmware version V4.10
(or later) for this module to function properly.
