Installation, Wiring,
and Specifications
2–14
Installation, Wiring, and Specifications
Operator interfaces require data and power connections. Operator interfaces with a
large CRT usually require separate AC power. However, small operator interface
devices like the popular DV-1000 Data Access Unit and the Optimation panels may
be powered directly from the DL05 Micro PLC.

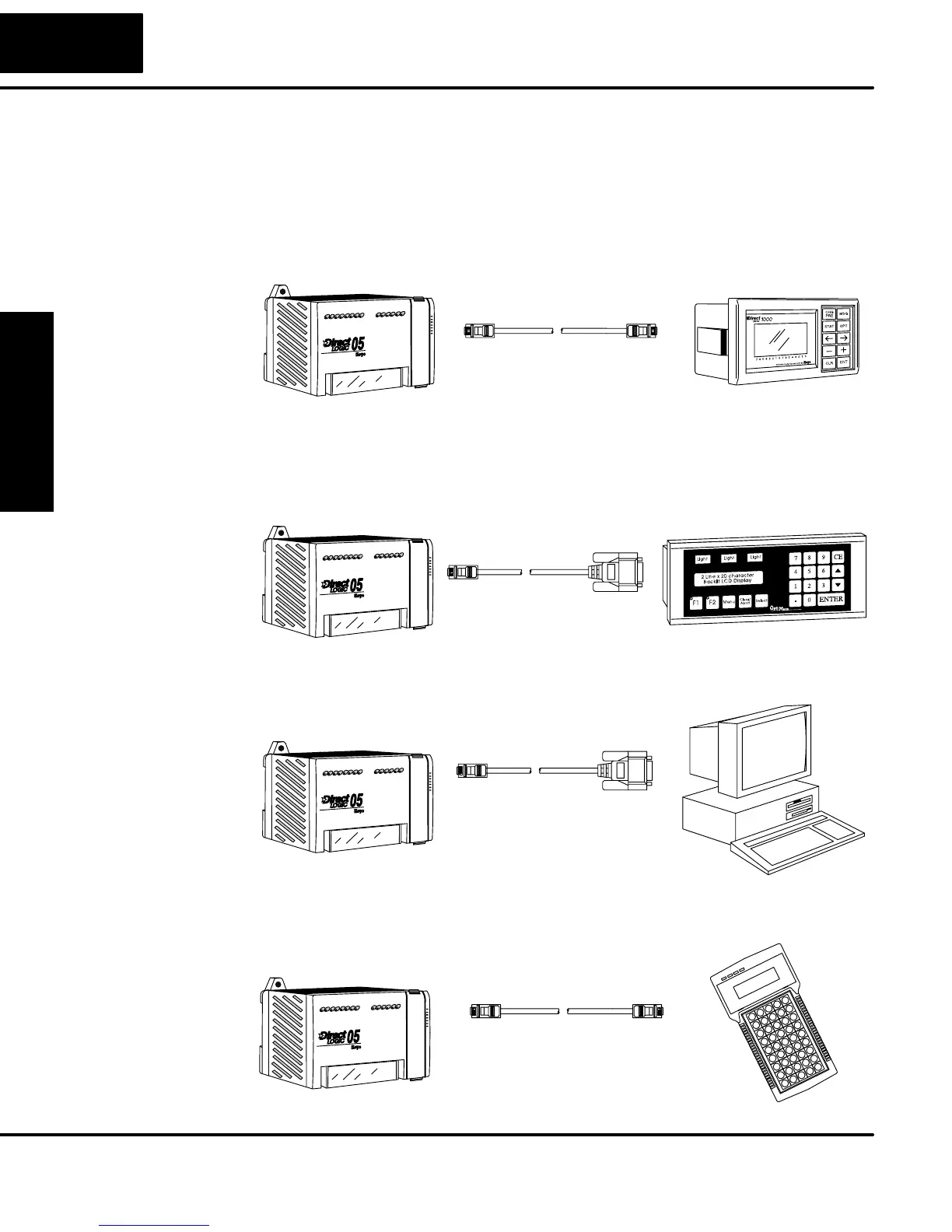

Connect the DV-1000 to either communication port on the DL05 Micro PLC using the
cable shown below. A single cable contains transmit/receive data wires and +5V
power.
DL05 Micro PLC
DV-1000
Use cable part no.
DV–1000CBL
RJ12
phone style
RJ12
phone style
Optimation operator interface panels require separate power and communications
connections. Connect the DL05 to the proper D-shell connector on the rear of the
Optimation panel using the cable shown below. Optimation panels require 8–30VDC
power.
DL05 Micro PLC
Optimation Panel
Use cable part no.
OP–2CBL
15-pin D-shell
male
RJ12
phone style
DL05 Micro PLCs can be programmed with either a handheld programmer or with
DirectSOFT on a PC. Connect the DL05 to a PC using the cable shown below.
Use cable part no.
D2–DSCBL
9-pin D-shell
female
RJ12
phone style
DL05 Micro PLC
The D2-HPP Handheld Programmer comes with a communications cable. For a
replacement part, use the cable shown below.
For replacement
cable, use part no.
DV–1000CBL
RJ12
phone style
RJ12
phone style
(cable comes with HPP)
DL05 Micro PLC
D2–HPP
Connecting
Operator Interface
Devices
Connecting
Programming
Devices
