Getting Started
1–8
Getting Started

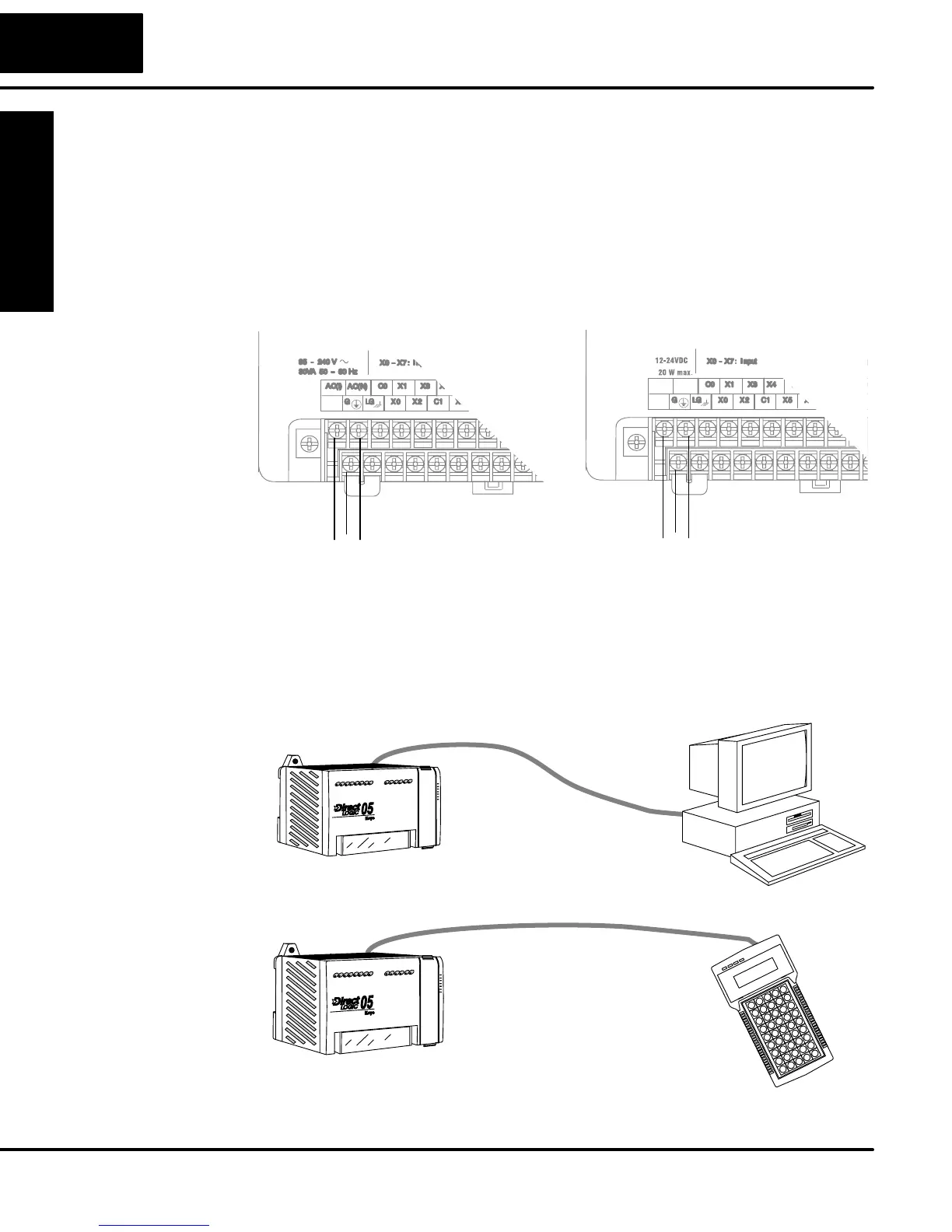

Step 3: Connect the Power Wiring
Connect the power input wiring for the DL05. Observe all precautions stated earlier
in this manual. For more details on wiring, see Chapter 2 on Installation, Wiring, and
Specifications. When the wiring is complete, close the connector covers. Do not
apply power at this time.
110/220 VAC Power Input
95 – 240 VAC
LNG
12/24 VDC Power Input
+
–
12 – 24 VDC
+–G
Step 4: Connect the Programming Device
Most programmers will use DirectSOFT programming software, installed on a
personal computer. Or, you may need the portability of the Handheld Programmer.
Both devices will connect to COM port 1 of the DL05 via the appropriate cable.
Use cable part #
D2–DSCBL
For replacement
cable, use part #
DV–1000CBL
(cable comes with HPP)
To Next Page
