Installation, Wiring, and Specifications

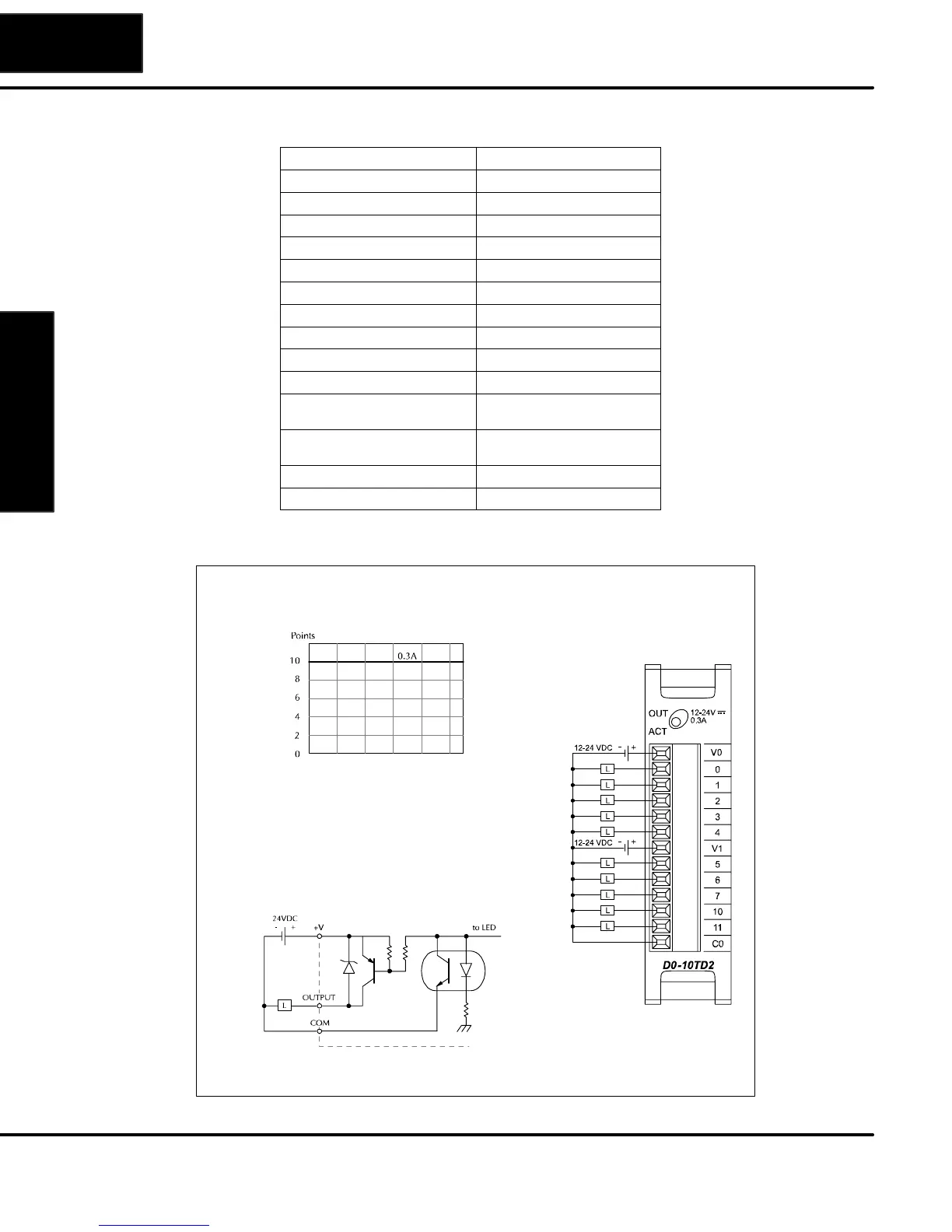

D0–10TD2 DC Output
Outputs per module 10 (sourcing)
Operating voltage range 12–24 VDC
Output voltage range 10.8–26.4 VDC
Peak voltage 50.0 VDC
Maximum output current 0.3 A/point, 1.5 A/common
Minimum output current 0.5 mA
Maximum leakage current 1.5 A @ 30.0 VDC
ON voltage drop 1.0 VDC @ 0.3 A
Maximum inrush current 1 A for 10 ms
OFF to ON response < 10 s
ON to OFF response < 60 s
Status indicators Module activity:
one green LED
Commons per module 2 non–isolated
(5 points/common)
Fuse N/A
Base power required (5V) Max. 150 mA (all pts. ON)
Equivalent circuit
Derating Chart
0
10 20 30 40 50 55
Ambient Temperature (°C/°F)
32
50 68 86 104 122 131
C°
F°
Note: The DL05 must have firmware version V4.10 (or later) for this module to function properly.
