Installation, Wiring, and Specifications
Mounting Guidelines
In addition to the panel layout guidelines, other specifications can affect the
definition and installation of a PLC system. Always consider the following:
S Environmental Specifications
S Power Requirements
S Agency Approvals
S Enclosure Selection and Component Dimensions

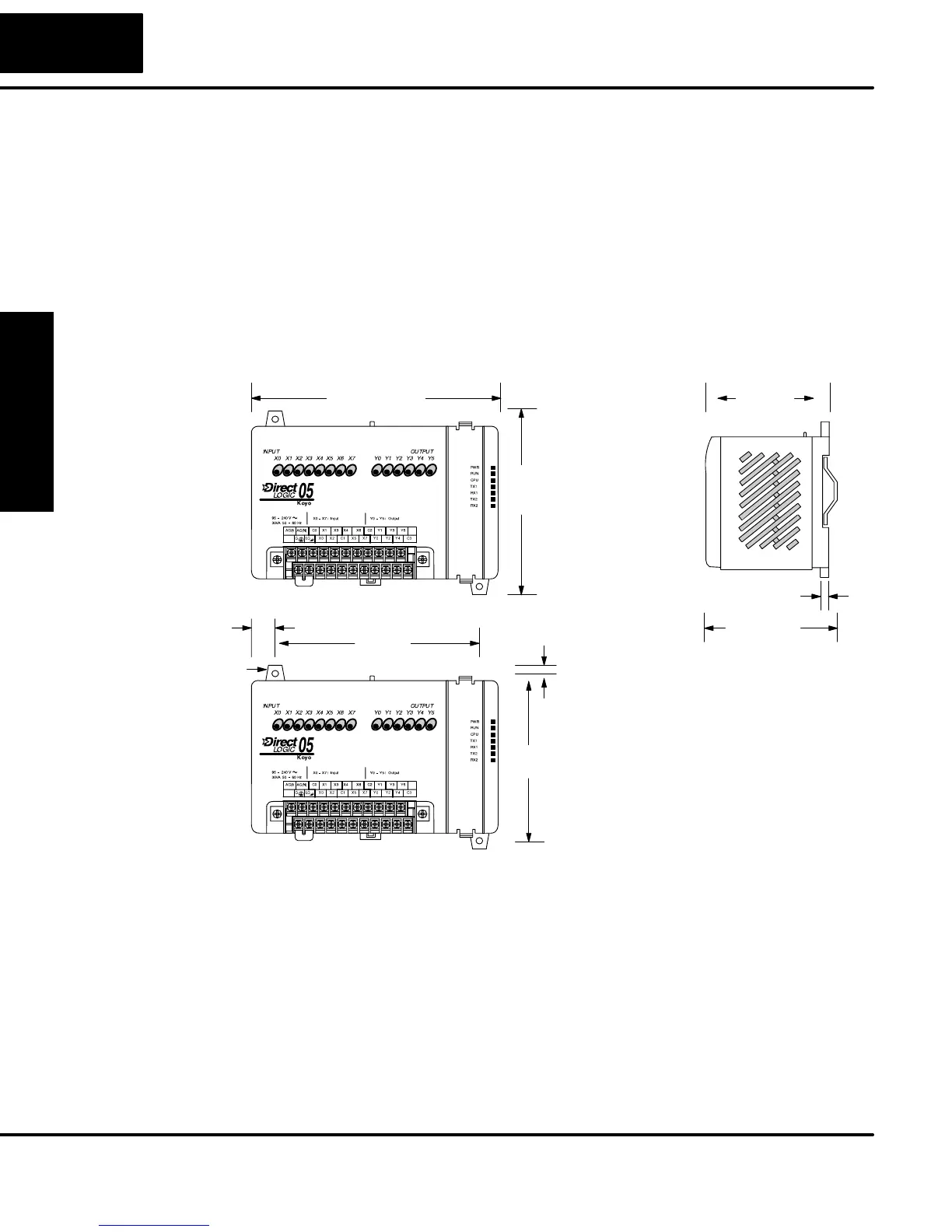

The following diagram shows the outside dimensions and mounting hole locations
for all versions of the DL05. Make sure you follow the installation guidelines to allow
proper spacing from other components.
4.8”
120mm
3.8”
95mm
2.6”
65mm
2.72”
68mm
(DIN Rail)
4.0”
100mm
3.4”
85mm
0.40”
10mm
0.20”
5mm
2 holes, 0.150” dia,
clearance for #6 screw
0.24” mounting tab
6mm
-
Your selection of a proper enclosure is important to ensure safe and proper
operation of your DL05 system. Applications of DL05 systems vary and may require
additional features. The minimum considerations for enclosures include:
S Conformance to electrical standards
S Protection from the elements in an industrial environment
S Common ground reference
S Maintenance of specified ambient temperature
S Access to equipment
S Security or restricted access
S Sufficient space for proper installation and maintenance of equipment
Unit Dimensions
nclosures
