Automationdirect.com DL05 - D0-08 TR Relay Output

Installation and
Safety Guidelines
Installation, Wiring,
and Specifications
2–49
Installation, Wiring, and Specifications

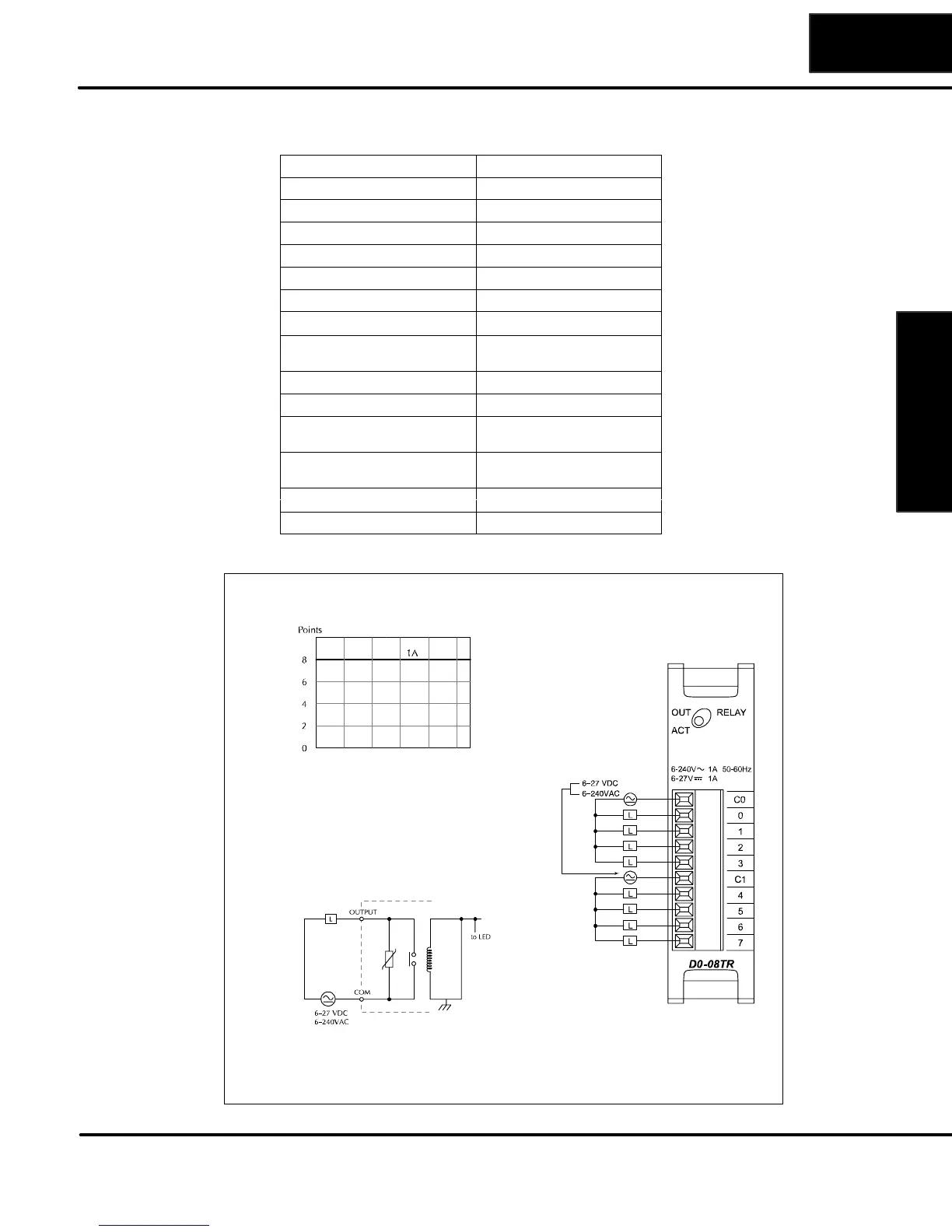

D0–08TR Relay Output
Outputs per module 8
Operating voltage range 6–27 VDC/6–240 VAC
Output type Relay, form A, SPST
Peak voltage 30.0 VDC/264 VAC
Maximum current (resistive) 1 A/point, 4 A/common
Minimum load current 0.5 mA
Maximum leakage current 0.1 mA @ 264 VAC
ON voltage drop
N/A
ON voltage drop
N/A
Maximum inrush current Output: 3 A for 10 ms
Common: 10 A for 10 ms
OFF to ON response < 15 ms
ON to OFF response < 10 ms
Status indicators Module activity:
one green LED
Commons per module 2 isolated
(4 points/common)
Fuse
N/A
Fuse
N/A
Base power required (5 V) Maximum 280 mA (all pts. ON)
Equivalent circuit
0
10 20 30 40 50 55
Ambient Temperature (°C/°F)
32
50 68 86 104 122 131
C°
F°
Derating Chart
Note: The DL05 must have firmware version V4.10 (or later) for this module to function properly.
