Automationdirect.com DL05 User Manual

Installation, Wiring,
and Specifications
2–34
Installation, Wiring, and Specifications

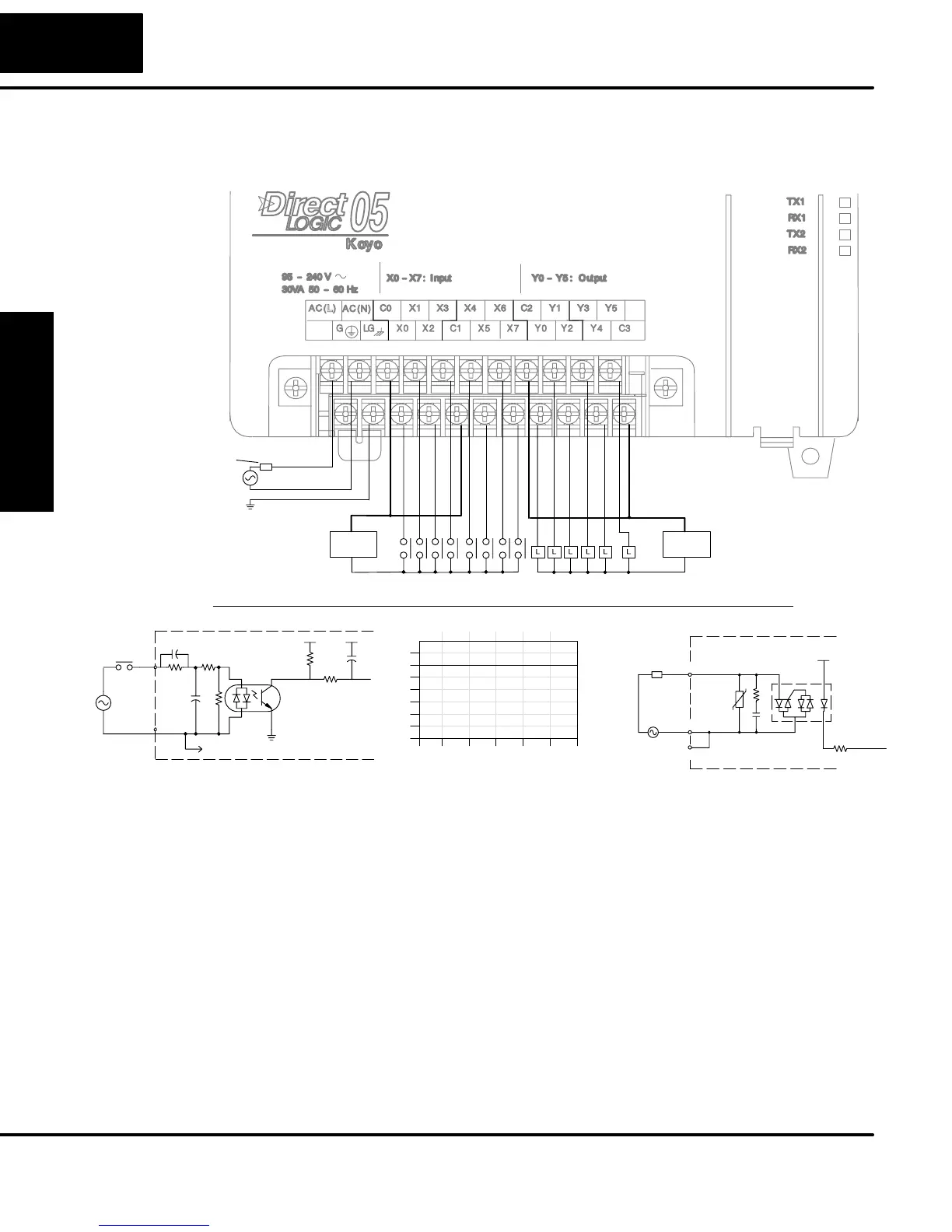

The D0–05AA Micro PLC features eight AC inputs and six AC outputs. The following
diagram shows a typical field wiring example. The AC external power connection
uses four terminals at the left as shown.
Equivalent Output Circuit
Output Point Wiring
Ground
Neutral
Line
Power
Input Wiring
Input Point Wiring
AC
Supply
AC
Supply
Fuse
or
C.B.
Derating Chart for AC Outputs
0
2
4
6
Points
0102030405055
Ambient Temperature (°C/°F)
32 50 68 86 104 122 131
C°
F°
Y0 – Y5
0.5 A
Optical
COM
Isolator
OUTPUT
To LED
Internal module circuitry
COM
17–240
L
VAC
Line
+V
Equivalent Input Circuit
Optical
Common
Input
+V
Isolator
To other circuits in bank
+V
To LED
The eight AC input channels use terminals in the middle of the connector. Inputs are
organized into two banks of four. Each bank has an isolated common terminal. The
wiring example above shows all commons connected together, but separate
supplies and common circuits may be used. The equivalent input circuit shows one
channel of a typical bank.
The six output channels use terminals on the right side of the connector. Outputs are
organized into two banks of three triac switches. Each bank has a common terminal.
The wiring example above shows all commons connected together, but separate
supplies and common circuits may be used. The equivalent output circuit shows one
channel of a typical bank.
D0–05AA
I/O Wiring Diagram
