Installation, Wiring,
and Specifications
2–9
Installation, Wiring, and Specifications
35 mm
7mm
Retaining Clip

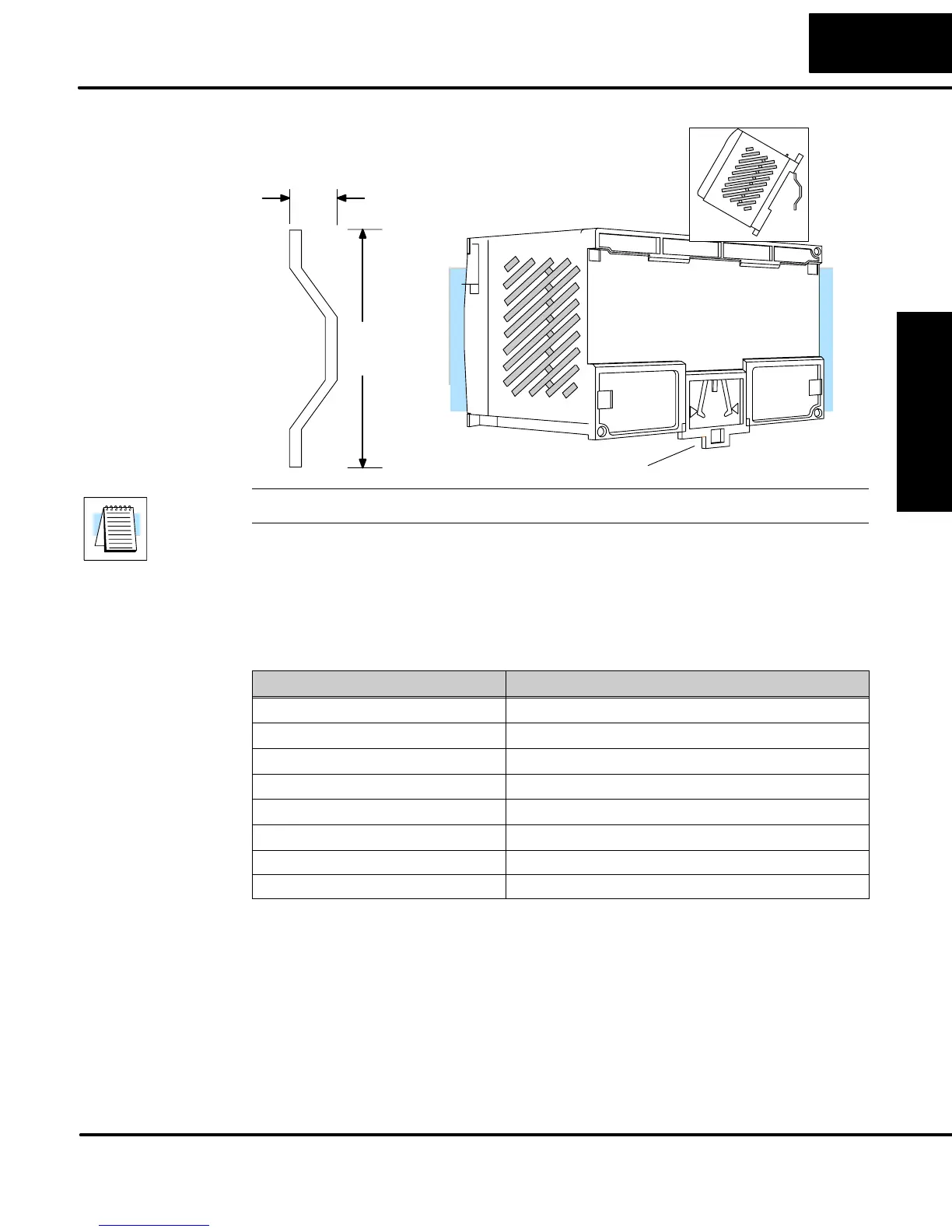

DIN Rail Dimensions
DIN Rail slot.
Use 35mm x 7mm rail conforming to
DIN EN 50022.
NOTE: Refer to our catalog for a complete listing of DINnector connection systems.
The following table lists the environmental specifications that generally apply to
DL05 Micro PLCs. The ranges that vary for the Handheld Programmer are noted at
the bottom of this chart. Certain output circuit types may have derating curves,
depending on the ambient temperature and the number of outputs ON. Please refer
to the appropriate section in this chapter pertaining to your particular DL05 PLC.
Specification Rating
Storage temperature –4° F to 158° F (–20° C to 70° C)
Ambient operating temperature* 32° F to 131° F (0° C to 55° C)
Ambient humidity** 5% – 95% relative humidity (non–condensing)
Vibration resistance MIL STD 810C, Method 514.2
Shock resistance MIL STD 810C, Method 516.2
Noise immunity NEMA (ICS3–304)
Atmosphere No corrosive gases
Agency approvals UL, CE, FCC class A
* Operating temperature for the Handheld Programmer and the DV–1000 is 32° to 122° F (0° to 50° C)
Storage temperature for the Handheld Programmer and the DV–1000 is –4° to 158° F (–20° to70° C).
**Equipment will operate down to 5% relative humidity. However, static electricity problems occur much
more frequently at low humidity levels (below 30%). Make sure you take adequate precautions when
you touch the equipment. Consider using ground straps, anti-static floor coverings, etc. if you use the
equipment in low-humidity environments.
Some applications require agency approvals for particular components. The DL05
Micro PLC agency approvals are listed below:
S UL (Underwriters’ Laboratories, Inc.)
S CUL (Canadian Underwriters’ Laboratories, Inc.)
S CE (European Economic Union)
Environmental
Specifications
Agency Approvals
