Automationdirect.com DL05 - D0-10 TD1 DC Output

Installation, Wiring
Installation and
Safety Guidelines
and Specifications
2–44
Installation, Wiring, and Specifications

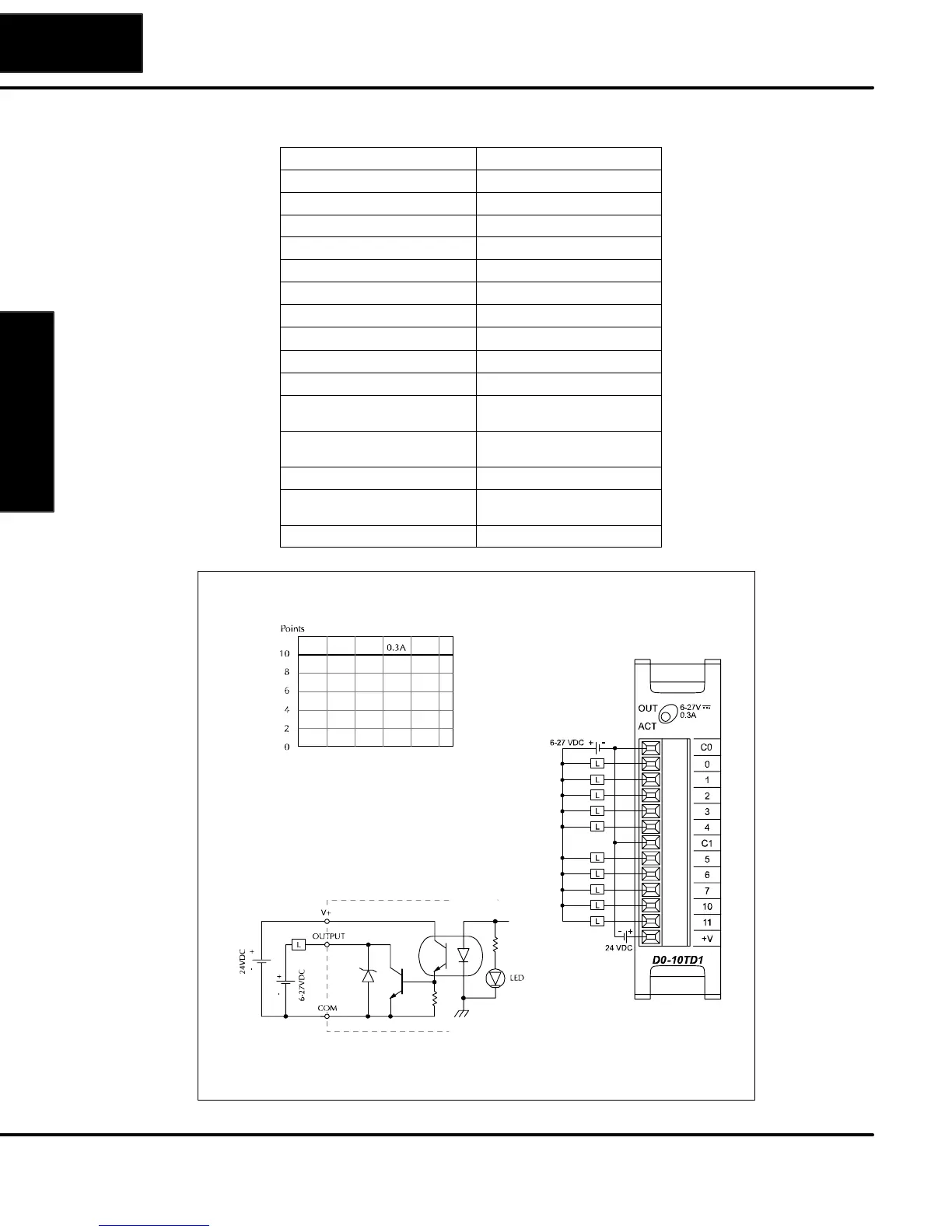

D0–10TD1 DC Output
Outputs per module 10 (sinking)
Operating voltage range 6–27 VDC
Output voltage range 5–30 VDC
Peak voltage 50.0 VDC
Maximum output current 0.3 A/point, 1.5 A/common
Minimum output current 0.5 mA
Maximum leakage current 15 A @ 30.0 VDC
ON voltage drop 0.5 VDC @ 0.3 A
Maximum inrush current
1 A for 10 ms
Maximum inrush current
1 A for 10 ms
OFF to ON response < 10 s
ON to OFF response < 60 s
Status indicators Module activity:
one green LED
Commons per module 2 non–isolated
(5 points/common)
Fuse N/A
External DC power required 20–28 VDC max.
200 mA (all pts. on)
Base power required (5V) Max. 150 mA (all pts. ON)
Derating Chart
0
10 20 30 40 50 55
Ambient Temperature (°C/°F)
32
50 68 86 104 122 131
C°
F°
Equivalent circuit
Note: The DL05 must have firmware version V4.10 (or later) for this module to function properly.
