Installation and
Safety Guidelines
Installation, Wiring,
and Specifications
2–43

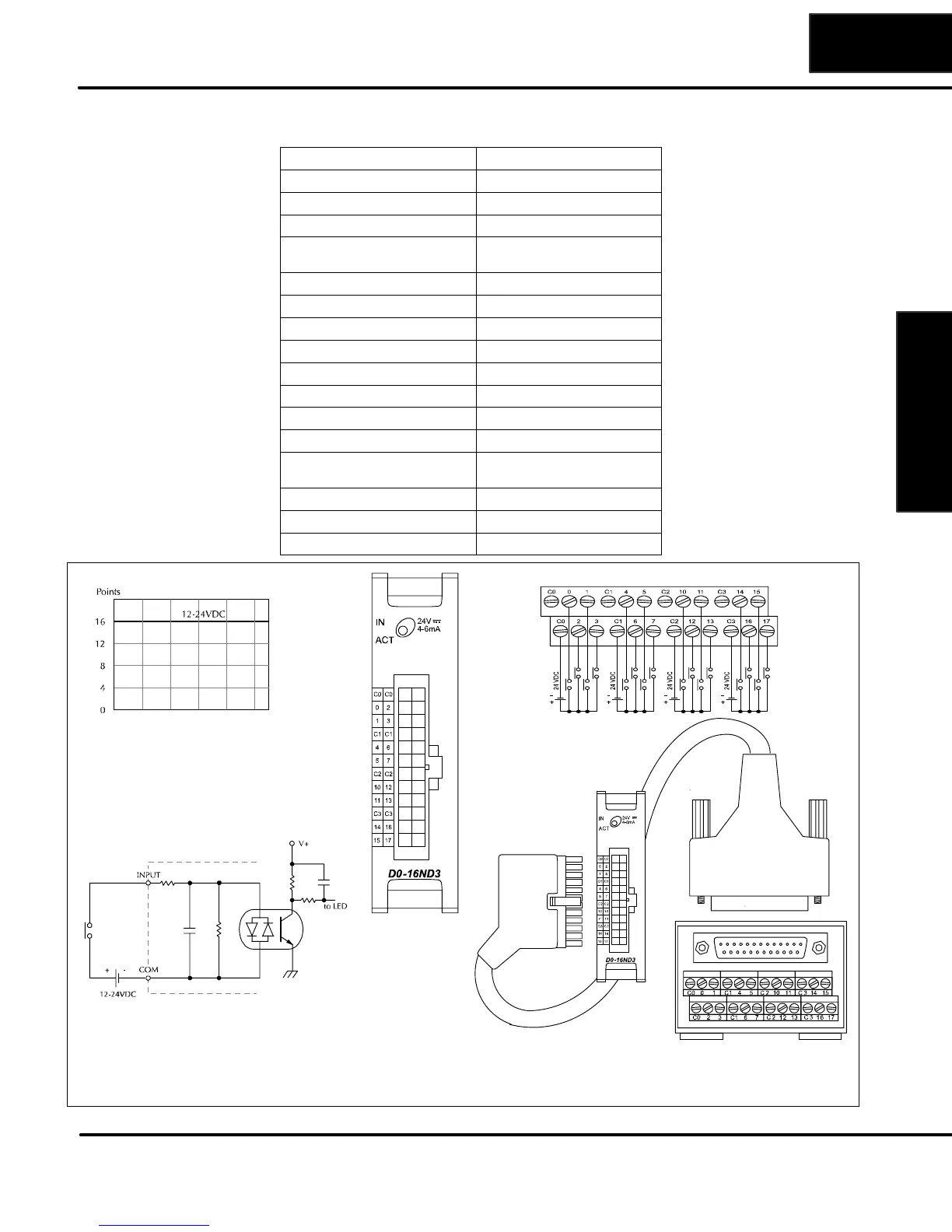

Installation, Wiring, and Specifications
D0–16ND3 DC Input
Inputs per module 16 (sink/source)
Input voltage range 20–28 VDC
Operating voltage range 24 VDC
Peak voltage 30.0 VDC
Input current Typical:
4.0 mA @ 24 VDC
Maximum input current 6 mA @ 28 VDC
Input impedance 4.7k @ 24 VDC
ON voltage level > 19.0 VDC
OFF voltage level < 7.0 VDC
Minimum ON current 3.5 mA
Maximum OFF current 1.5 mA
OFF to ON response 2–8 ms, typical 4 ms
ON to OFF response 2–8 ms, typical 4 ms
Status indicators Module activity:
one green LED
Commons per module 4 non–isolated
Fuse N/A
Base power required Typical 35 mA (all pts. ON)
Equivalent input circuit
0
10 20 30 40 50 55
Ambient Temperature (°C/°F)
32
50 68 86 104 122 131
C°
F°
Derating Chart
Wiring for ZL–CM056
Use Ziplink ZL–CBL056 cable and ZL–CM056 connector
module or build your own cables using 24–pin Molex Micro
Fit 3.0 receptacle, part number 43025, or compatible.
Configuration shown is
for current sinking
Configuration shown is for current sinking
Note: The DL05 must have firmware version V4.10
(or later) for this module to function properly.
To Next Page
