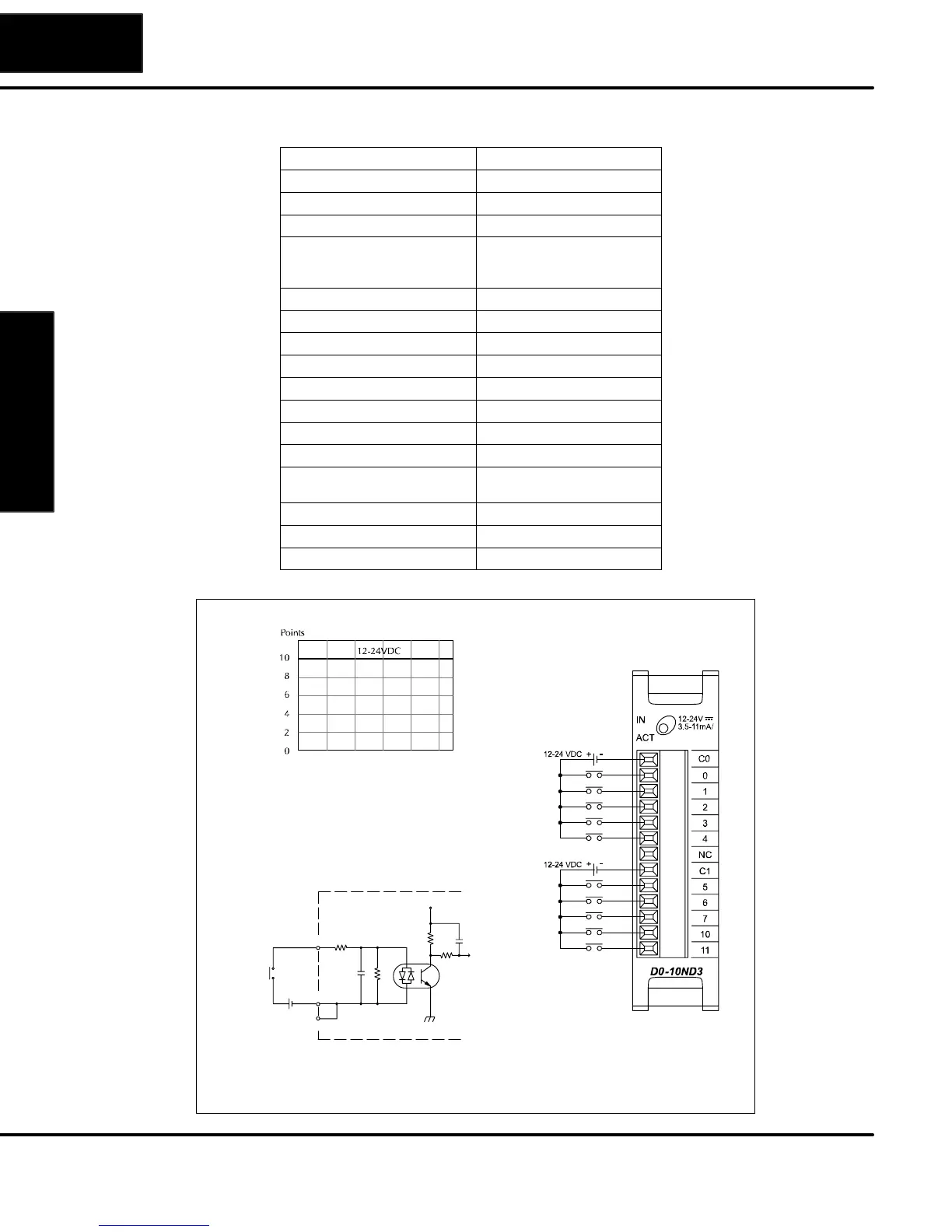

Installation, Wiring, and Specifications
D0–10ND3 DC Input
Inputs per module 10 (sink/source)
Input voltage range 10.8–26.4 VDC
Operating voltage range 12–24 VDC
Peak voltage 30.0 VDC
Input current Typical:
8.5 mA @ 24 VDC
Maximum input current 11 mA @ 26.4 VDC
Input impedance 2.8k @ 12–24 VDC
ON voltage level > 10.0 VDC
OFF voltage level < 2.0 VDC
Minimum ON current 3.5 mA
Maximum OFF current 0.5 mA
OFF to ON response 2–8 ms, typical 4 ms
ON to OFF response 2–8 ms, typical 4 ms
Status indicators Module activity:
one green LED
Commons per module 2 non–isolated
Fuse N/A
Base power required (5V) Typical 35 mA (all pts. ON)
Optical
COM
Isolator
Configuration shown is current sinking
INPUT
12–24VDC
V+
To LED
Internal module circuitry
COM
+
Derating Chart
0
10 20 30 40 50 55
Ambient Temperature (°C/°F)
32
50 68 86 104 122 131
C°
F°
Equivalent circuit
Note: The DL05 must have firmware version V4.10 (or later) for this module to function properly.
