Standard RLL Instructions
Table Instructions
Table Instructions

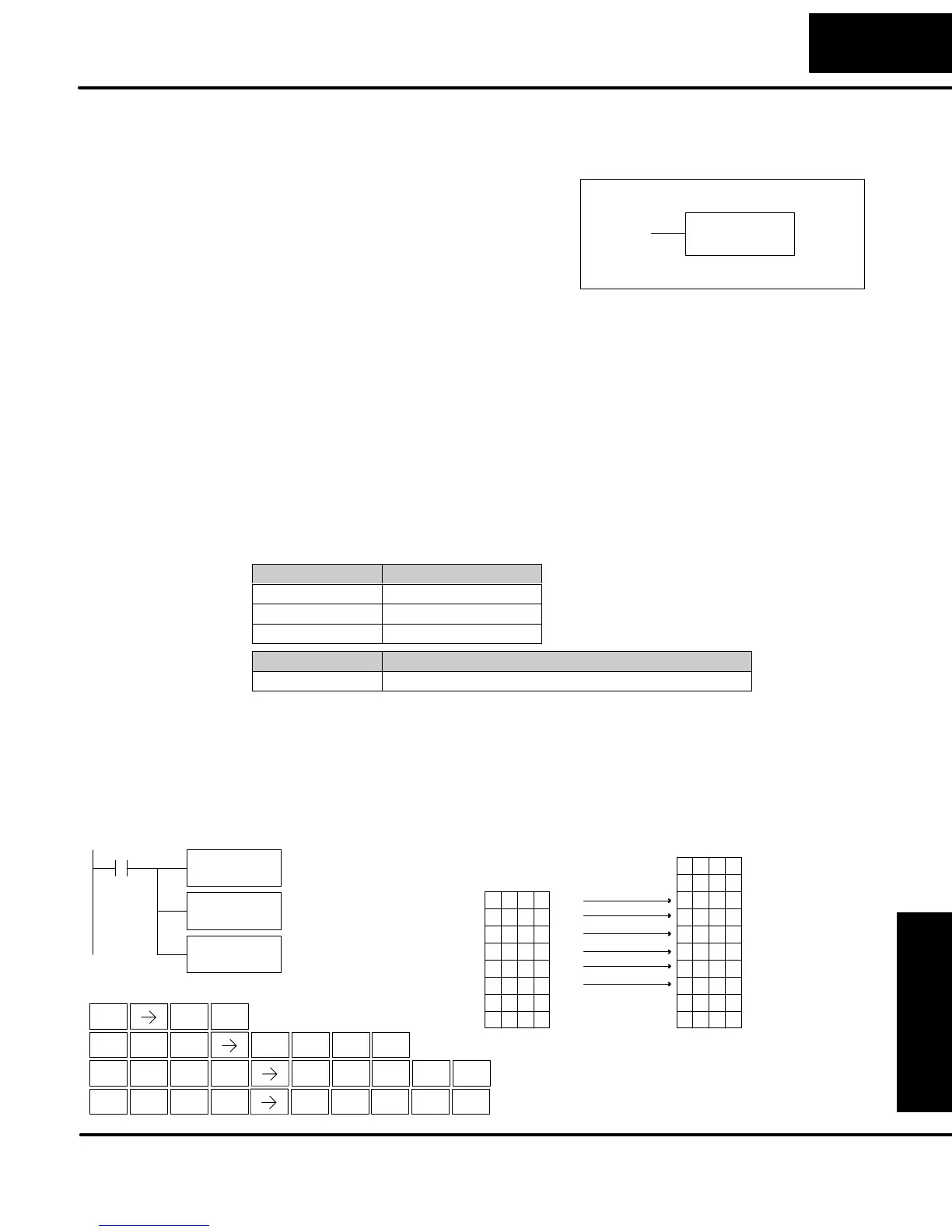

The Move instruction moves the values
from a V memory table to another
V memory table the same length. The
function parameters are loaded into the
first level of the accumulator stack and the
accumulator by two additional
instructions. Listed below are the steps
necessary to program the Move function.
V aaa
MOV
S Step 1:— Load the number of V memory locations to be moved into the
first level of the accumulator stack. This parameter is a HEX value (K40
max, 100 octal).
S Step 2:— Load the starting V memory location for the locations to be
moved into the accumulator. This parameter is a HEX value.
S Step 3:— Insert the MOVE instruction which specifies starting V
memory location (Vaaa) for the destination table.
Helpful Hint: — For parameters that require HEX values when referencing memory
locations, the LDA instruction can be used to convert an octal address to the HEX
equivalent and load the value into the accumulator.
Operand Data Type DL05 Range
aaa
V memory V All (See page 4–28)
Pointer P All (See page 4–28)
Discrete Bit Flags Description
SP53 On when the value of the operand is larger than the accumulator can work with.
In the following example, when X1 is on, the constant value (K6) is loaded into the
accumulator using the Load instruction. This value specifies the length of the table
and is placed in the first stack location after the Load Address instruction is
executed. The octal address 2000 (V2000), the starting location for the source table
is loaded into the accumulator. The destination table location (V2030) is specified in
the Move instruction.
DirectSOFT
LD
K6
X1
Load the constant value 6
(HEX) into the lower 16 bits
of the accumulator
LDA
O 2000
Convert octal 2000 to HEX
400 and load the value into
the accumulator
MOV
V2030
Copy the specified table
locations to a table
beginning at location V2030
V2030
0123
V2031
0500
V2032
9999
V2033
3074
V2034
8989
V2035
1010
V2036
XXXX
V2037
XXXX
S
S
S
S
V2026
XXXX
V2027
XXXX
V2000
0123
V2001
0500
V2002
9999
V2003
3074
V2004
8989
V2005
1010
V2006
XXXX
V2007
XXXX
S
S
S
S
Handheld Programmer Keystrokes
STR
$
SHFT
ANDST
L
3
D
SHFT
JMP
K
6
G
ENT
SHFT
ANDST
L
3
D
0
A
2
C
0
A
0
A
0
A
ENT
SHFT
ORST
M
INST#
O
1
B
ENT
2
C
0
A
0
A
ENT
3
D
AND
V
Move
(MOV)
