Maintenance and Troubleshooting

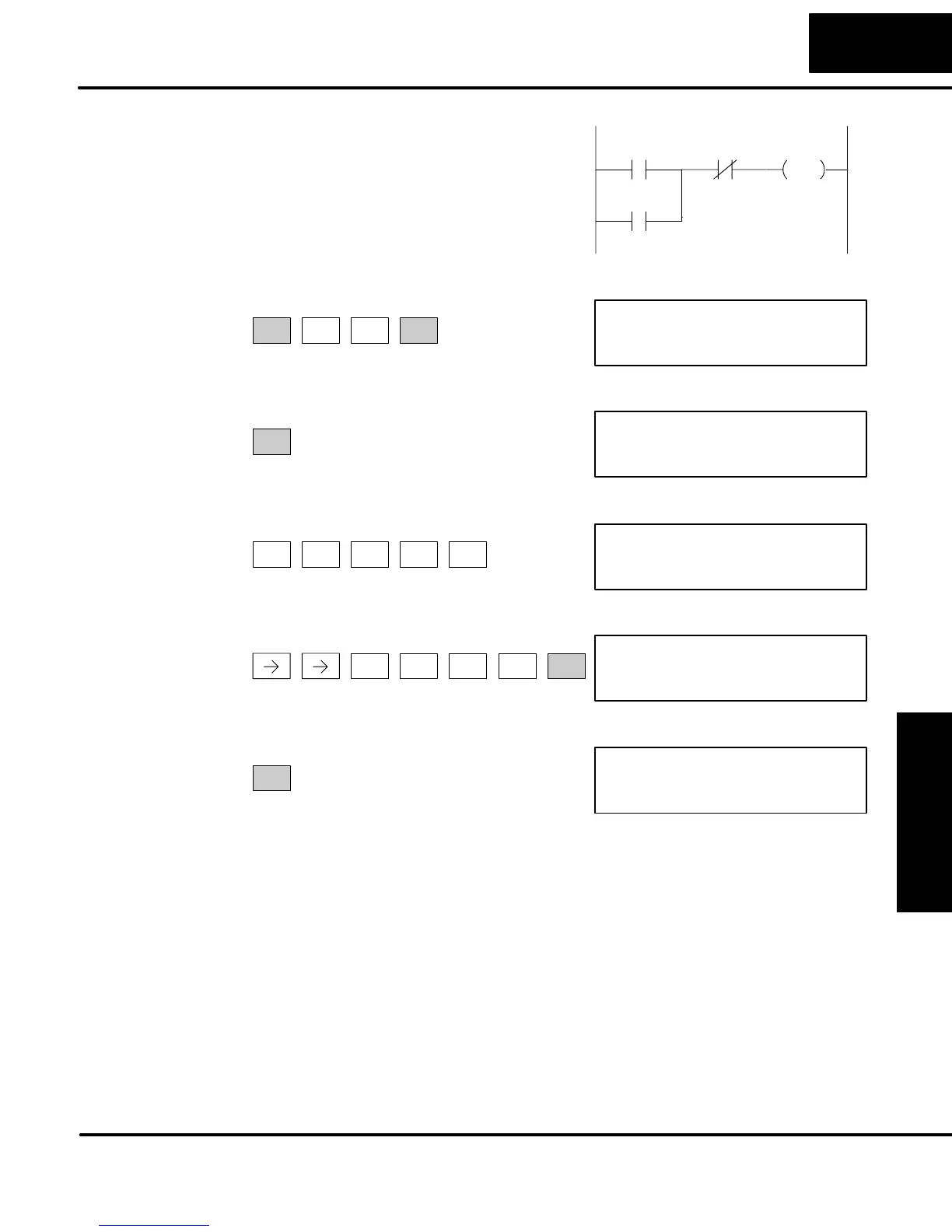

We’ll use the program logic shown to de-
scribe how this process works. In the ex-
ample, we’ll change X0 to C10. Note, the
example assumes you have already
placed the CPU in Run Mode.
X0 X1 Y0
OUT
C0
RUN TIME EDIT?
*MODE CHANGE*
Use the MODE key to select Run Time Edits
RUNTIME EDITS
*MODE CHANGE*
Press ENT to confirm the Run Time Edits
MODE ENT
ENT
NEXT
$00000 STR X0
Find the instruction you want to change (X0)
Press the arrow key to move to the X. Then enter the new contact (C10).
SHFT
SET
X
0
A
SHFT
FD REF
FIND
(Note, the RUN LED on the D2–HPP
Handheld starts flashing to indicate
Run Time Edits are enabled.)
STR C10
RUNTIME EDIT?
SHFT
1
B
2
C
0
A
ENT
OR C0
Press ENT to confirm the change
ENT
(Note, once you press ENT, the next
address is displayed.
NEXT
