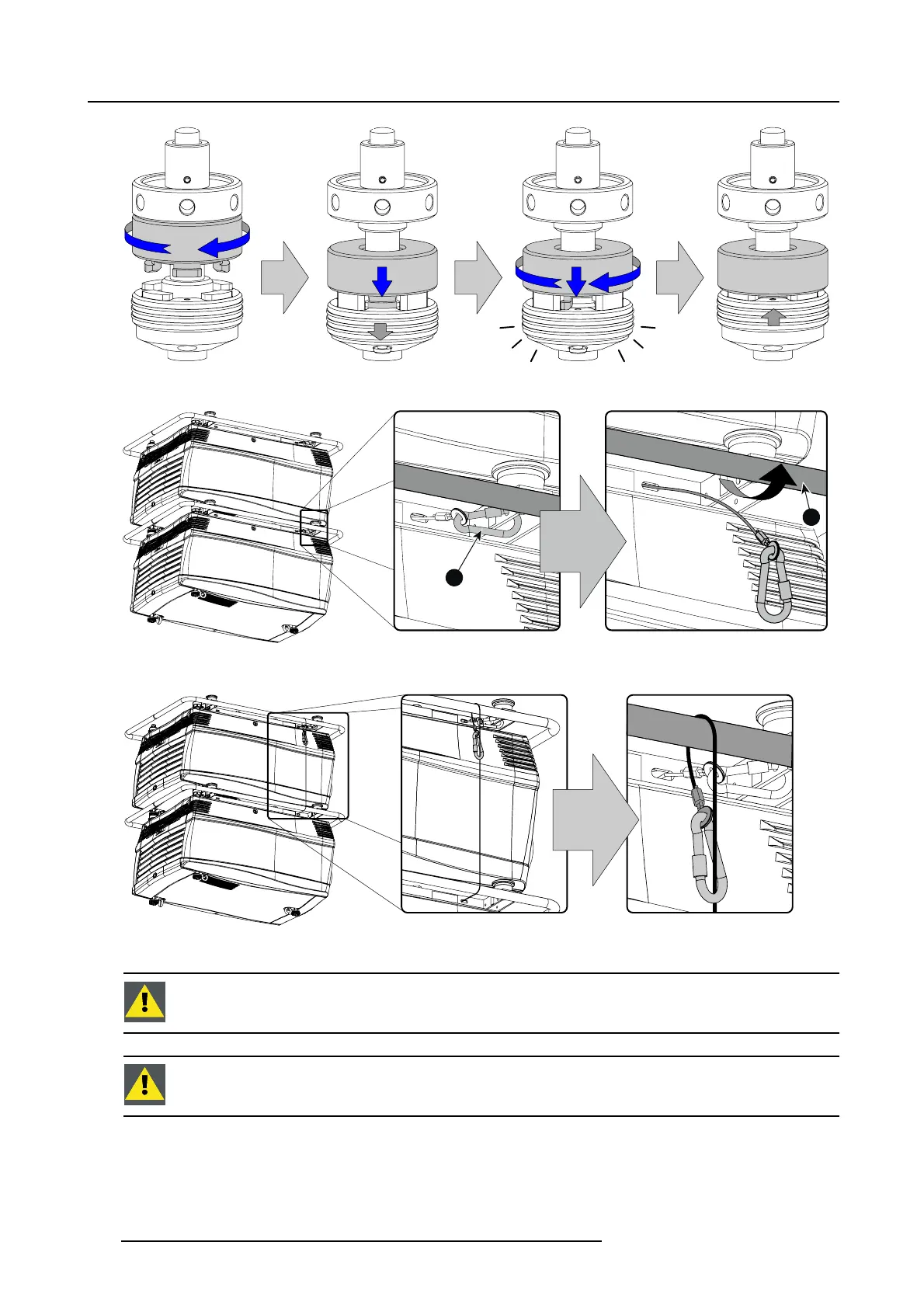

E. Stacking HDF W series projectors
A B
C D
Image E-2
Closing interlocking adapter
H
C
Image E-3
Safety cable
Image E-4
Mount safety cable
WARNING: Always use both safety cables of the lowest projector to secure a stacked projector in a ceiling
mount configuration.
WARNING: Always mount a safety chain around the truss and the first projector in that way that projector
cannot drop more than 20 cm.
How to open an interlocking adapter ?
1. Open an interlocking adaptor as illustrated. (image E-5)
