12. Alignment

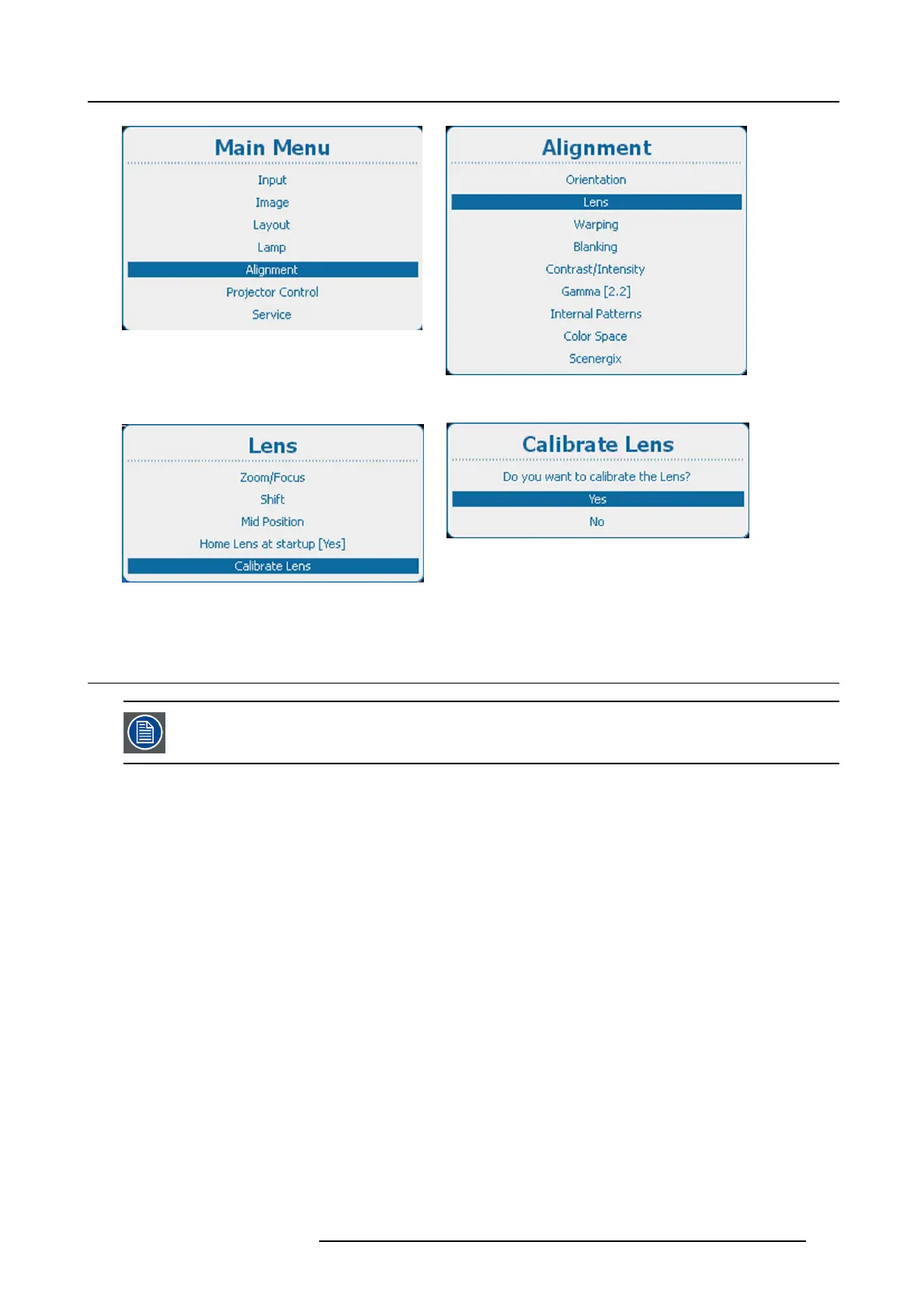

Image 12-18
Main menu, alignment
Image 12-19
Alignment, lens
Image 12-20
Calibrate lens
Image 12-21
Calibrate lens confirmation
12.8 Warping
Not all models are equipped with a warping unit. For these models, the warping unit is optional.
Overview
• About warping
• Warping status
• Rotation
• Keystone
• Pin-Barrel correction
• 4 corners adjustment
•Warpfile service
12.8.1 About warping
Overview
Image warping is the process of digitally manipulating an image to compensate for the distortion of the screen. Consequently, it can
also be used to generate an image with irregular shape.
While an image can be transformed in various ways, pure warping doesn’t affect the colors.
Some examples of warped images, using the warp geometry settings:
R5905158 HDF W SERIES 10/07/2012
139
