3. Physical installation

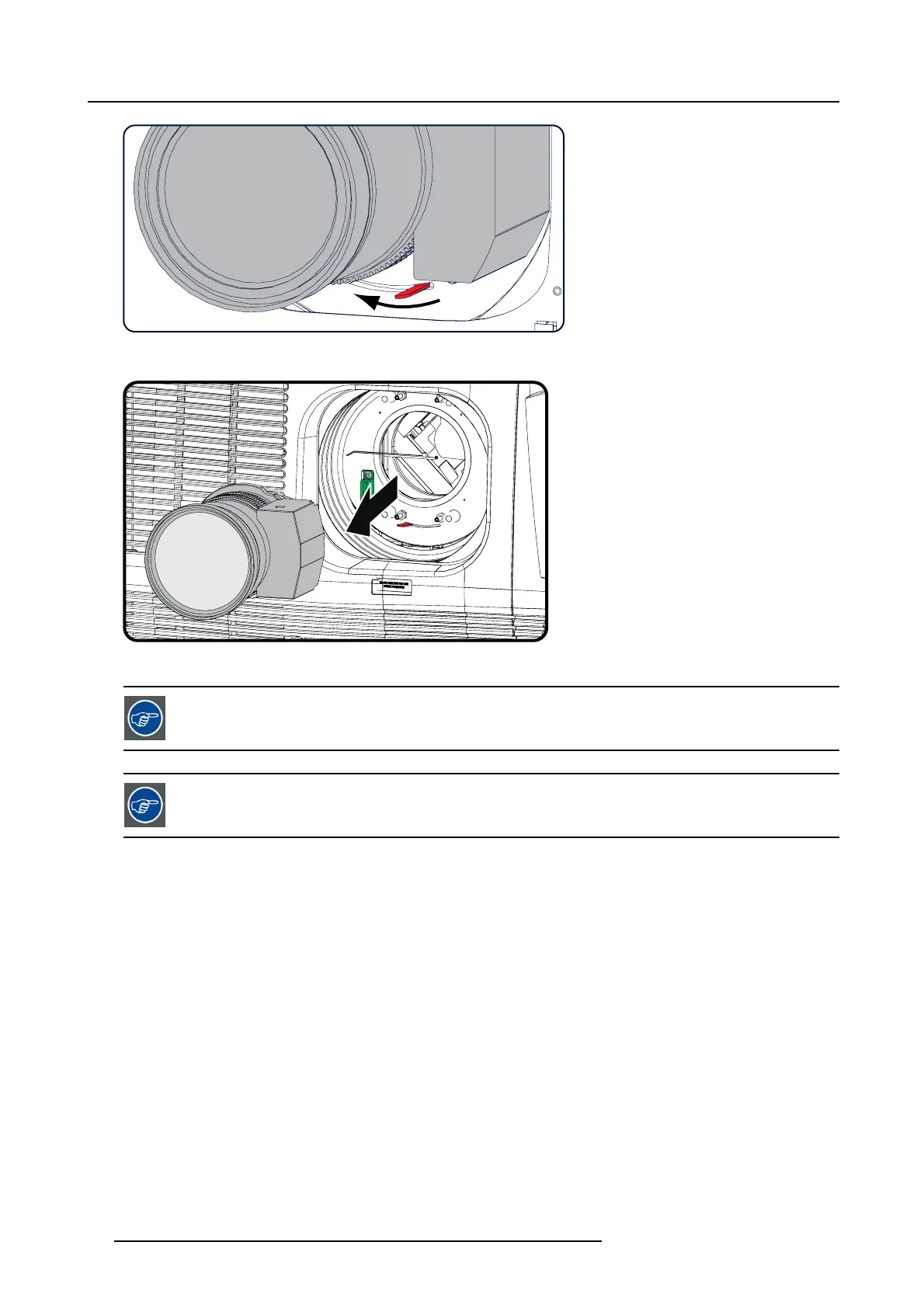

Image 3-21
Lens removal, unlock
Image 3-22
Lens removal
It’s recommended to place the Lens caps of the original Lens packaging, back on both sides of the removed
Lens to protect the optics of the Lens.
It’s recommended to place the foam rubber of the original projector packaging, back in the Lens opening to
prevent intrusion of dust. Note that this foam rubber is packed in a plastic bag to prevent the dust, emitted by
the foam, from entering the projector.
3.2.5 Lens safety cable (optional)
When using the safety cable ?
The lens safety cable can be used in any circumst
ances to protect a mounted lens in the lens holder.
How to mount the cable
1. Put the safety cable around the lens. Make sure the cable is mounted between the motor part and the mounting flange (im-
age 3-23)
2. Insert both cable sides into the clamp;
Strap the cable and make sure that the clamp is positioned on 45° from the bottom to avoid interference of the cable with the
lens locking mechanism.
Secure the cable by fixating the nut of the clamp. (image 3-24)
3. Turn the cable with hook lock around the carry handle and hook the hook lock around the cable. (image 3-25)
26
R5905158 HDF W SERIES 10/07/2012
