3. Physical installation

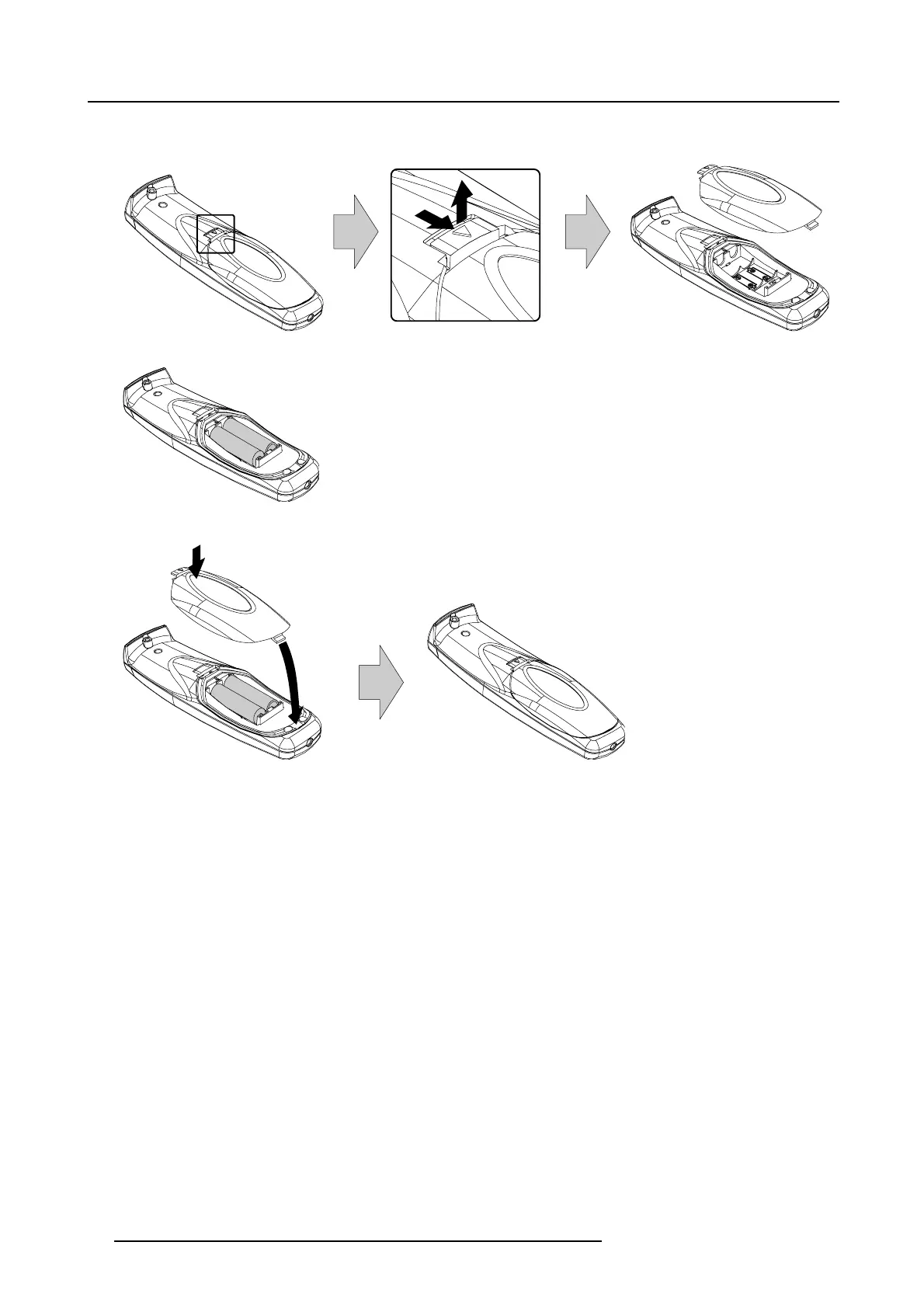

3. Insert (1) the lower tab of the battery cover in the gap at the bottom of the remote control, and press (2) the cover until it clicks
in place. (image 3-4)
1
2
Image 3-2
+
+
-
-
Image 3-3
+
+
-
-
1
2
Image 3-4
To prevent battery explosion
• Danger of explosion if battery is incorrectly installed.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Disposal of used batteries must be done according to the manufacturer’s instruction.
3.1.2 RCU rugged case installation
How to install the rugged case of the remote control ?
1. Slide the bottom of the RCU into the rugged case and then pull the top of the rugged case over the top of the RCU as illustrated.
(image 3-5)
20
R5905158 HDF W SERIES 10/07/2012
