11. Lamp

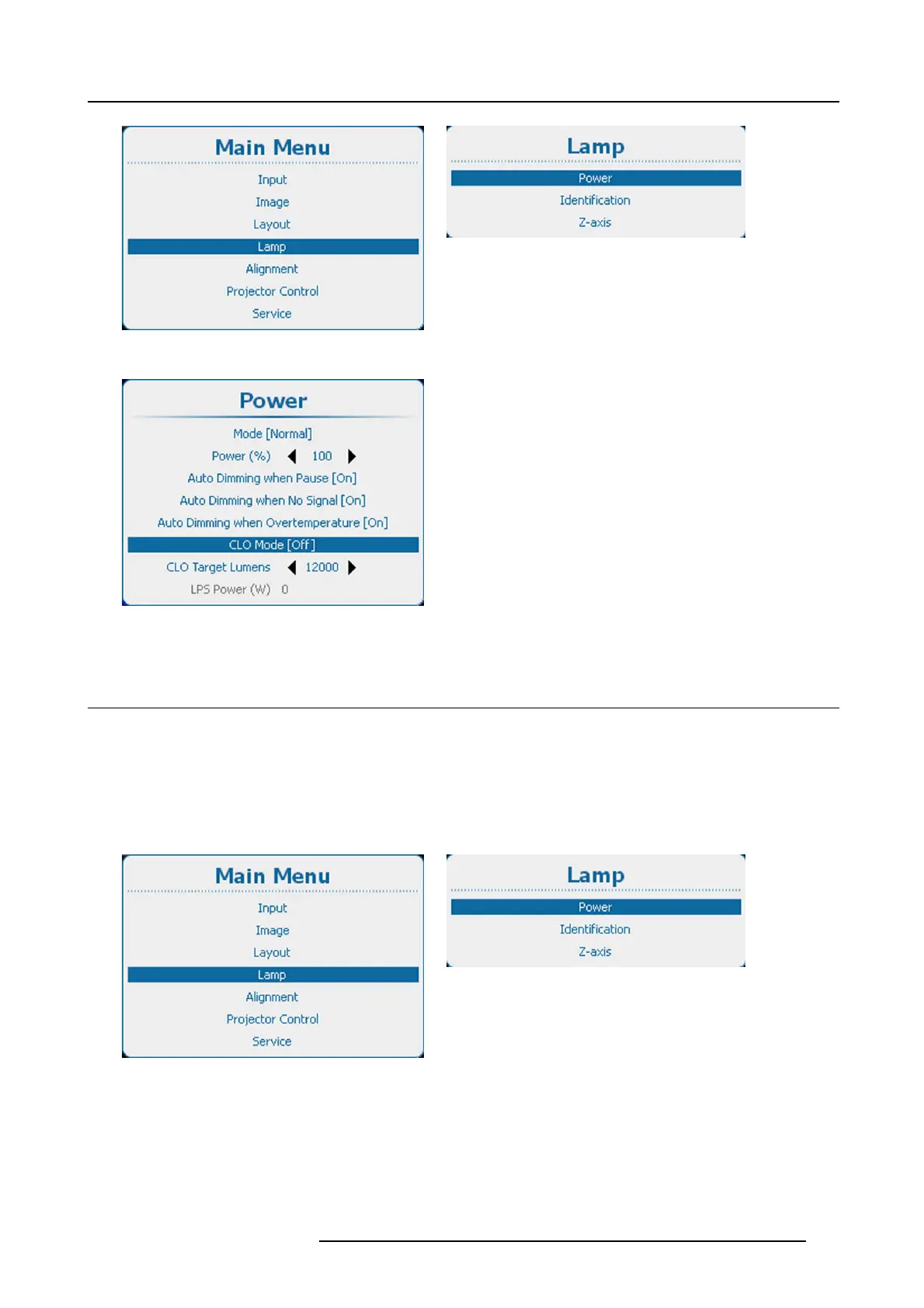

Image 11-18

Main menu, lamp

Image 11-19

Lamp, power

Image 11-20

Power, CLO mode

11.8 CLO targets

What must be done?

The light output target can be set. This value will force the projector to produce the target lumens when the CLO mode is set to On.

How to set the target

1. Press Menu to activate the menus and select Lamp → Power → CLO m ode. (image 11-21, image 11-22, image 11-23)

2. Use the ◄ or ► key to change the CLO target lumens.

Image 11-21

Main menu, lamp

Image 11-22

Lamp, power

R5905158 HDF W SERIES 10/07/2012 129
