16. Removal and installation of the projector covers
How to install the front cover
1. Check if the front lter is present.
2. Ensure that no lens is mounted.
3. Install the front cover of the projector doing the following:
a) rst hook in the side of the front cover at the front lter,
b) then gently push the other side of the front cover into position,
c) ensure that the locking studs in the corners click into their receivers. (image 16-9)
4. Secure the front cover by locking the captive screw in the middle at the bottom of the front cover. (image 16-10)
5. Reinstall the rubber dust ring around the lens holder.

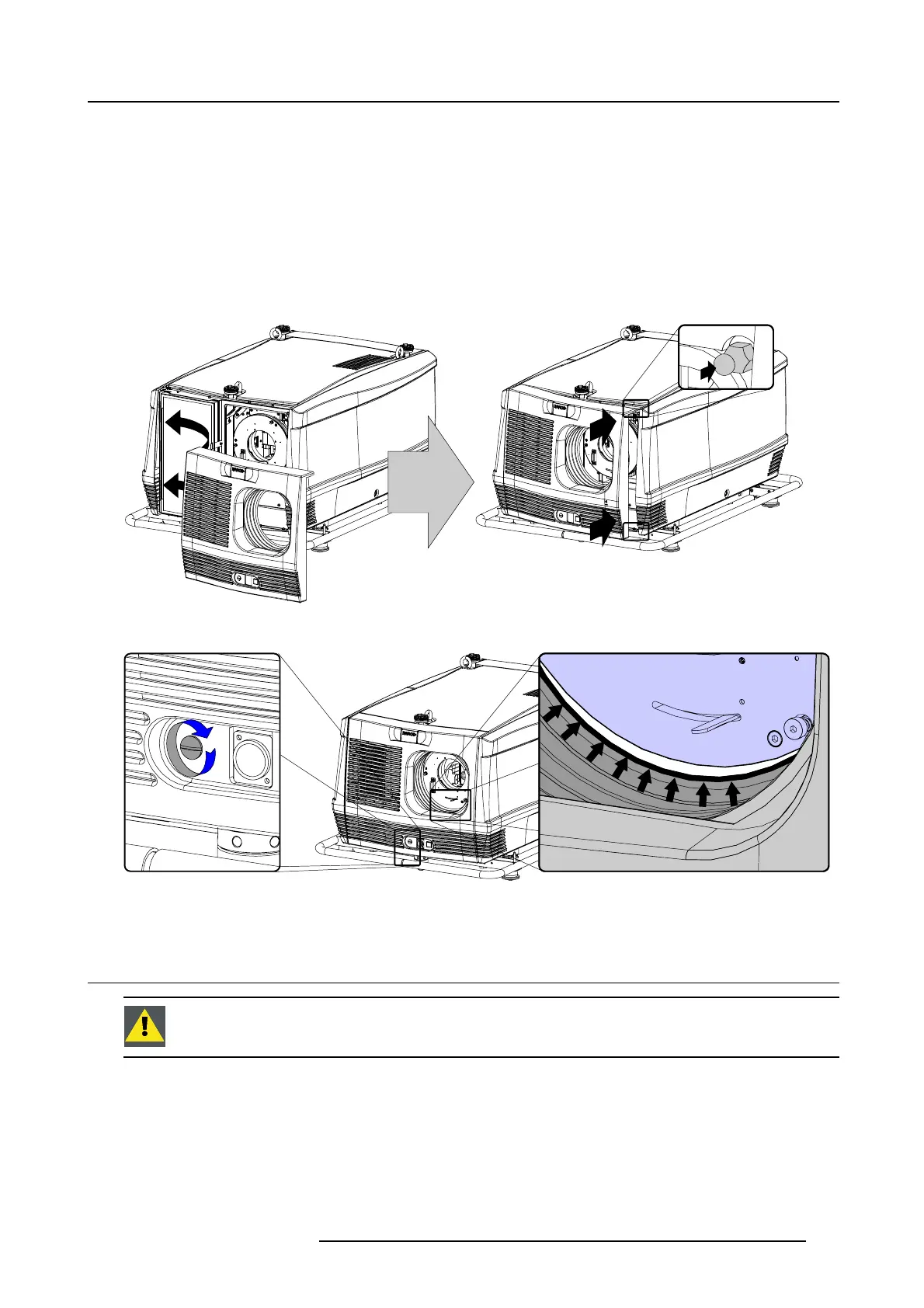

Image 16-9
Front cover installation
Image 16-10
Front cover, dust ring
16.6 Installation of the side cover
WARNING: This procedure may only be performed by qualied technical service personnel.
Necessary tools
7mmat screw driver.
How to install the side cover
1. Check if the bottom and top lters are present.
R5905158 HDF W SERIES 10/07/2012
227
