12. Alignment

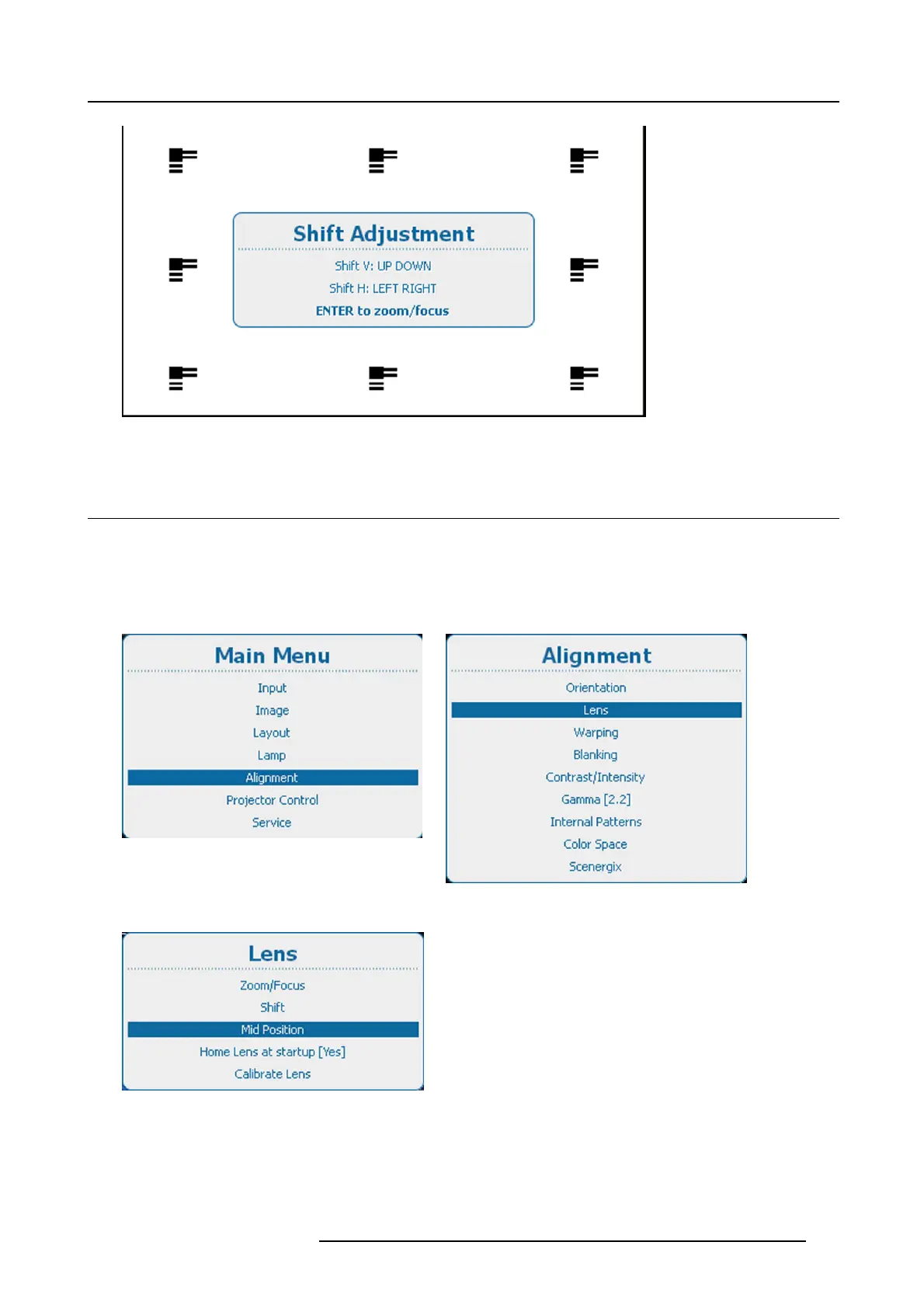

Image 12-11

Shift adjustment

12.5 Lens adjustment, mid position

Howtoreturntomidposition

1. Press Menu to activate the menus and select Alignment → Lens. (image 12-12, image 12-13)

2. Use the ▲ or ▼ key to select Mid Position and press ENTER to activate. (image 12-14)

Lens will be shifted horizontally and vertically to its mid position.

Image 12-12

Main menu, alignment

Image 12-13

Alignment, lens

Image 12-14

Lens, mid position

R5905158 HDF W SERIES 10/07/2012 137
