Barco HDF W series Installation Manual

5. Getting started
SCREEN
SCREEN
Image 5-10

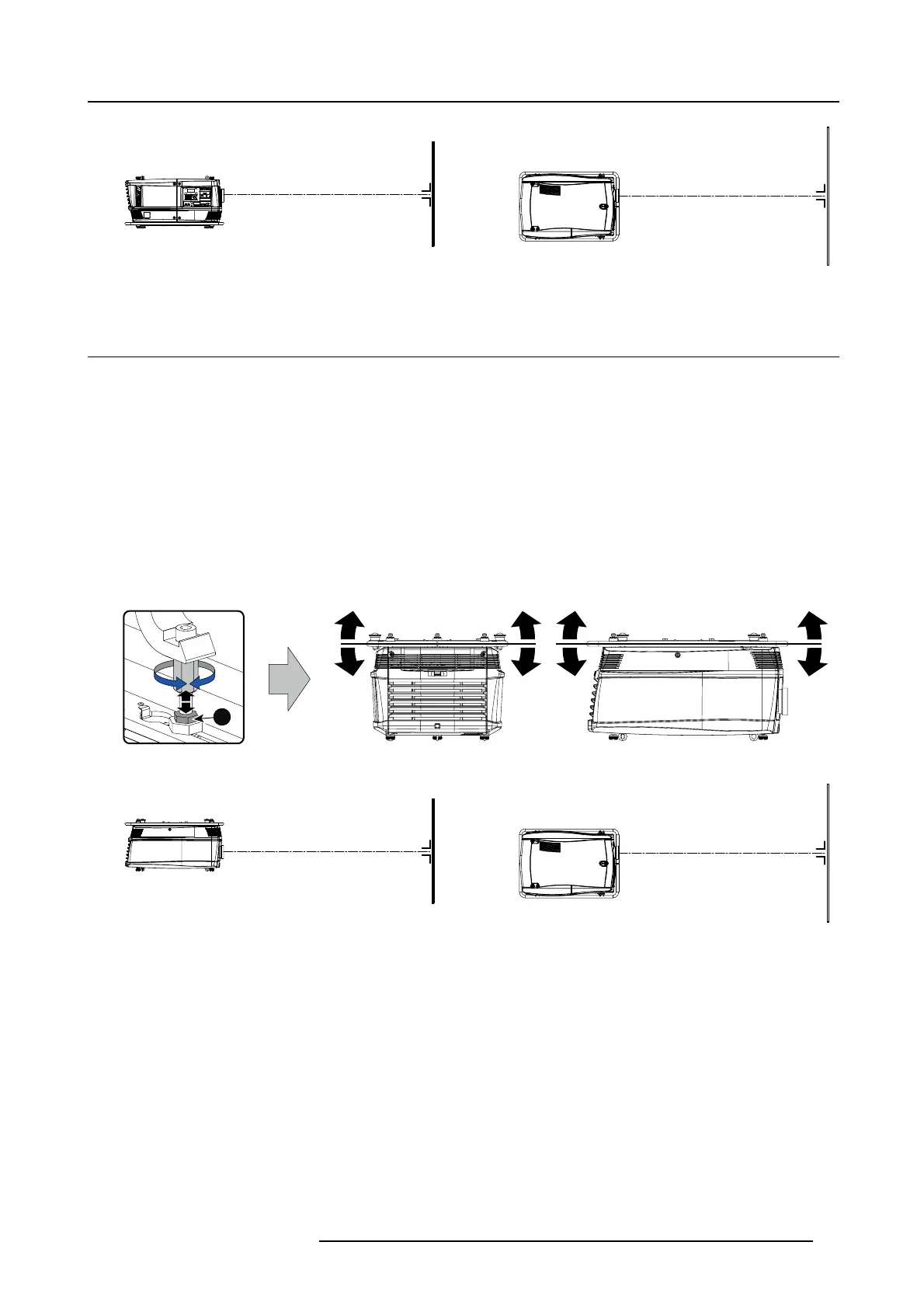

5.11 Alignment of a ceiling mount HDF W series projector
Necessary tools
17 mm open ended spanner.
How to align
1. Install the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen.
2. Project one of the internal hatch patterns on the screen.
3. Release the lock nut (ref B image 5-11) of the rigging clamps.
4. Adjust the height of the rigging clamps with respect to the projector, until the projected hatch pattern is perfectly rectangle shaped
and leveled. (image 5-11)
When this is achieved, the projector is set horizontal and vertical at right angles to the screen. (image 5-12)
5. Fasten the lock nut (B) of the rigging clamps.
B
B
Image 5-11
SCREEN
SCREEN
Image 5-12
Level adjustment
R5905158 HDF W SERIES 10/07/2012 55
